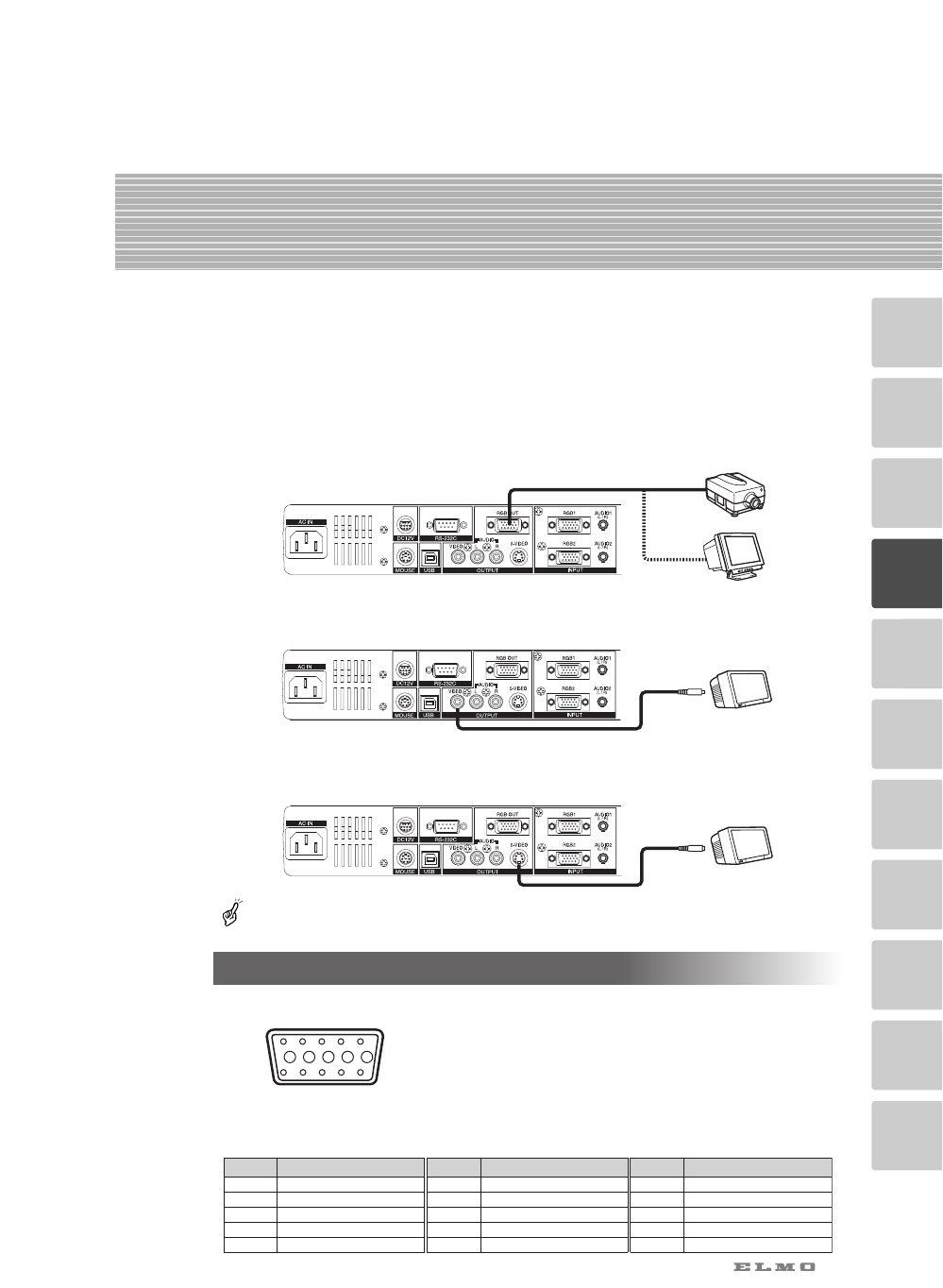

■ Connection to the analog RGB-out terminal
Connect the analog RGB-out terminal [OUTPUT
·
RGBOUT] to the equipment having an analog
RGB-in terminal with the analog RGB cable (attached) or a connection cable available on the
market.
At this time, the position of the display may be deviated from the center. If deviated, manually
adjust the horizontal and vertical positions on the connected equipment side.
Also, vertical stripes may appear on the screen of the LCD projector. That can be alleviated
by manually adjusting the dot clock frequency on the projector side.
■ Connection to the composite video-out terminal
Connect the composite video output terminal [VIDEO] and the audio output terminal [AUDIO]
(RCA pin) with the video/audio cable with RCA pin plug as attached or available on market.
■ Connection to the S video-out terminal
Use the S video terminal [S-VIDEO](mini-DIN4P) and the S-video cable as attached or
available on market.
Hold the cable plug when connecting or disconnecting the cables.
Analog RGB Signal
■ Signal allocation
■ Pin assignment
Pin No. Name
Pin No. Name
Pin No. Name
