Swim'n Play side deck Swimming Pool User Manual



13

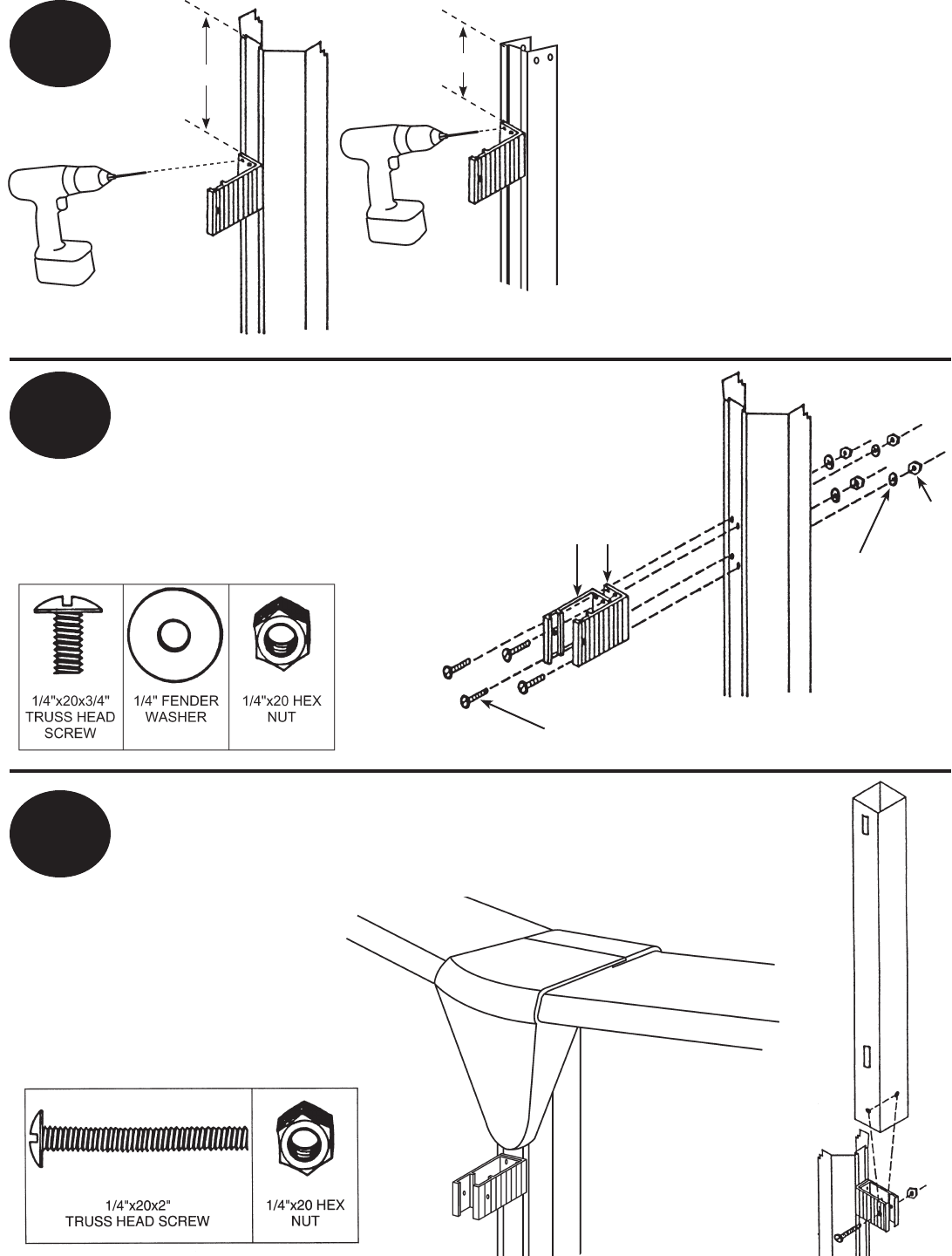

Before assembling your pool, drill the
required holes in the Verticals and
Buttress post.
Simply place the bracket 7¾” from the
top of the Vertical or 7-1/8” from the
top of theButtress post. Then, using the
Post Bracket as a template, drill through
the Vertical using a 5/16” drill bit.
If your pool is filled with water it will be
necessary for you to lower the water
level to 2’ deep in order to safely drill
these holes and attach the Fence Post
Brackets.
7¾”
11
12
Take the Verticals and attach two Fence Post Brackets to
each Vertical using the 1/4 x 20 x 3/4” Screws and Washers
and Hex Nuts provided as shown.
You may now assemble your pool.
FENCE POST
BRACKETS
(2 Pieces)
1/4" TRUSS
HEAD SCREW
VERTICAL
WASHER
HEX
NUT
13
Assemble the Square Fence Post to the Post Bracket using the
¼” x 20 x 2” Screws and Hex Nuts as shown at right. If your pool is
equipped with Full-Contoured Covers like those below, you must first
assemble the covers to the pool before attaching the Posts.
7-1/8”
