Mark out pool radius (1/2 pool diameter) using the center stake as reference. The slots in the bottom track must
face upward.

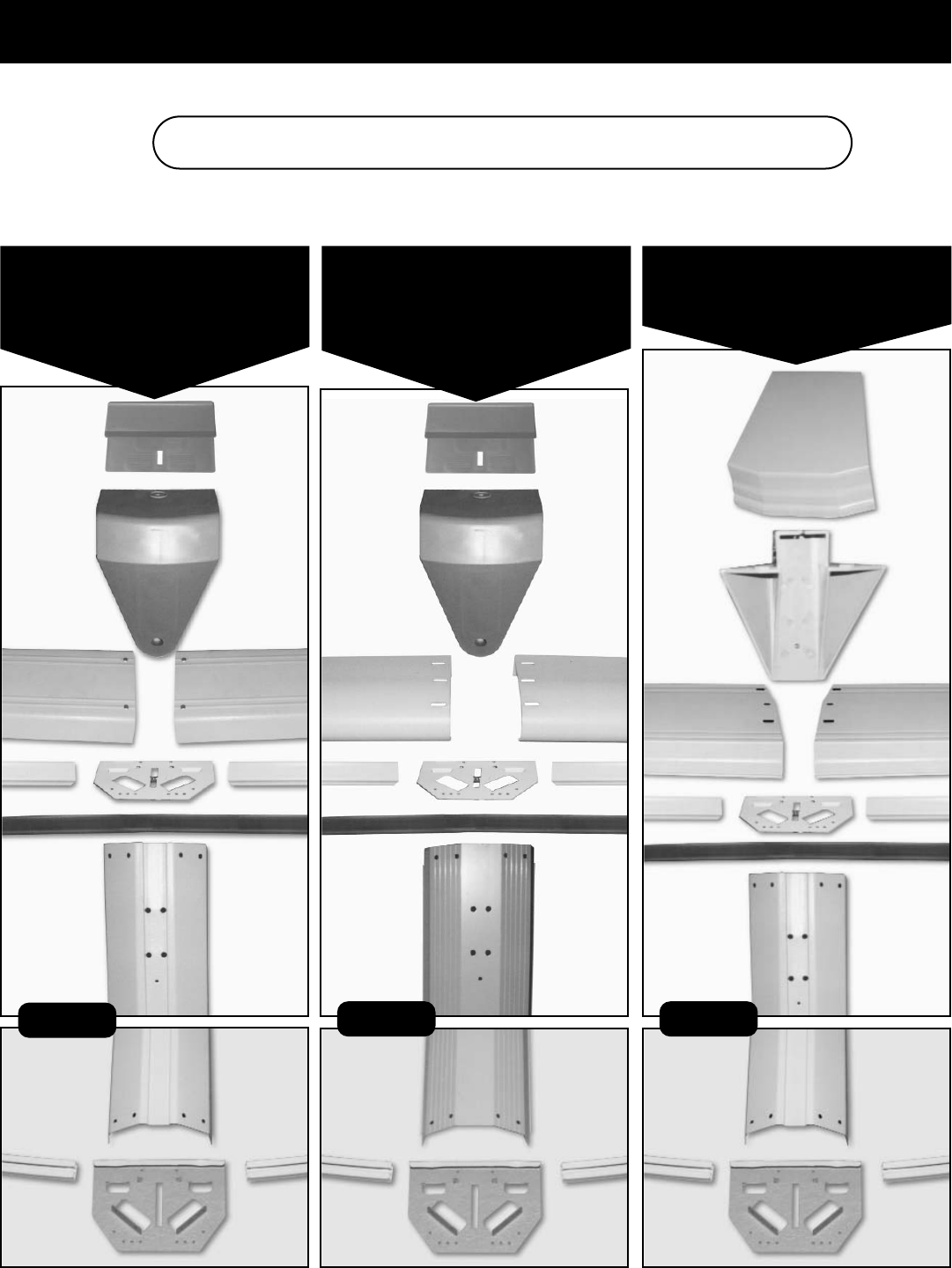

On pool models with the 1” bottom rail and 1
3
/4” verticals:
Form a circle by sliding the end of the bottom track into the rail/vertical connector leaving
1
/
4” gap between each
rail, in the center of the connector. Continue in this manner all the way around pool, until the circle is complete.
On pool models with the
5
/8” and
9
/16” interlocking rails:
Form a circle by inserting the
9
/16” rail into the
5
/8” rail approximately 2”. Continue in this manner all the way around
the pool until the circle is complete, alternating a
9
/16” rail then a
5
/8” rail.
Check that the bottom framework of your pool is perfectly round by measuring the distance between the
central stake and the rails at various points. Bring the required amount of sifted earth or prewashed sand
into the pool area at this time. Refer to chart above for the required amount.
2 BOTTOM RAIL
3 INSERT WALL INTO BOTTOM RAIL
Remove wall from carton.
Note the UP arrow on wall.
Determine starting point as the filter
inlet and outlet holes are at the
beginning of the wall. Starting at the
center of a bottom plate insert the
bottom edge of wall into the groove
on the bottom rail. Make sure that
the cutouts for filter inlet and outlet
are on the top portion of the wall and
will not be hidden behind a vertical. If
the wall ends do not meet, adjust the
bottom rail in or out of the bottom
plates. The spacing in all bottom
plates should be equal.
2”
WASHED SAND OR SIFTED
EARTH RECOMMENDED
REQUIREMENT CHART
12’ Pool 1.4 Ton
15’ Pool 1.9 Tons
18’ Pool 2.6 Tons
21’ Pool 3.4 Tons
24’ Pool 4.4 Tons
27’ Pool 5.4 Tons
4’x4’ PLYWOOD
Ground Shield and Wall Guard are optional.
Spread a ground shield or plastic sheeting over prepared ground (not included). Ground Shield and Wall Guard
are available from your local pool supply dealer or polyethylene sheeting can be purchased from a local hardware
supply. This will protect your pool liner and metal parts against chemical reactions from the ground soil.
4
