English – 3
UNPACKING
The tractor is not completely assembled at the factory,
for transportation reasons.
After removing the packaging, check the machine for
any damage during the shipment, locate the hardware
bag and loose parts. Take care while removing the
machine from the pallet, to avoid any damage to the
mower deck.
STANDARD PACKING
• tractor
• steering wheel
• seat with holder
• battery
• grass collector
• trailer hitch
• bag with operator's manual, parts manual,
2 keys for ignition, 1 decal with an arrow.
• hardware bag for grass collector

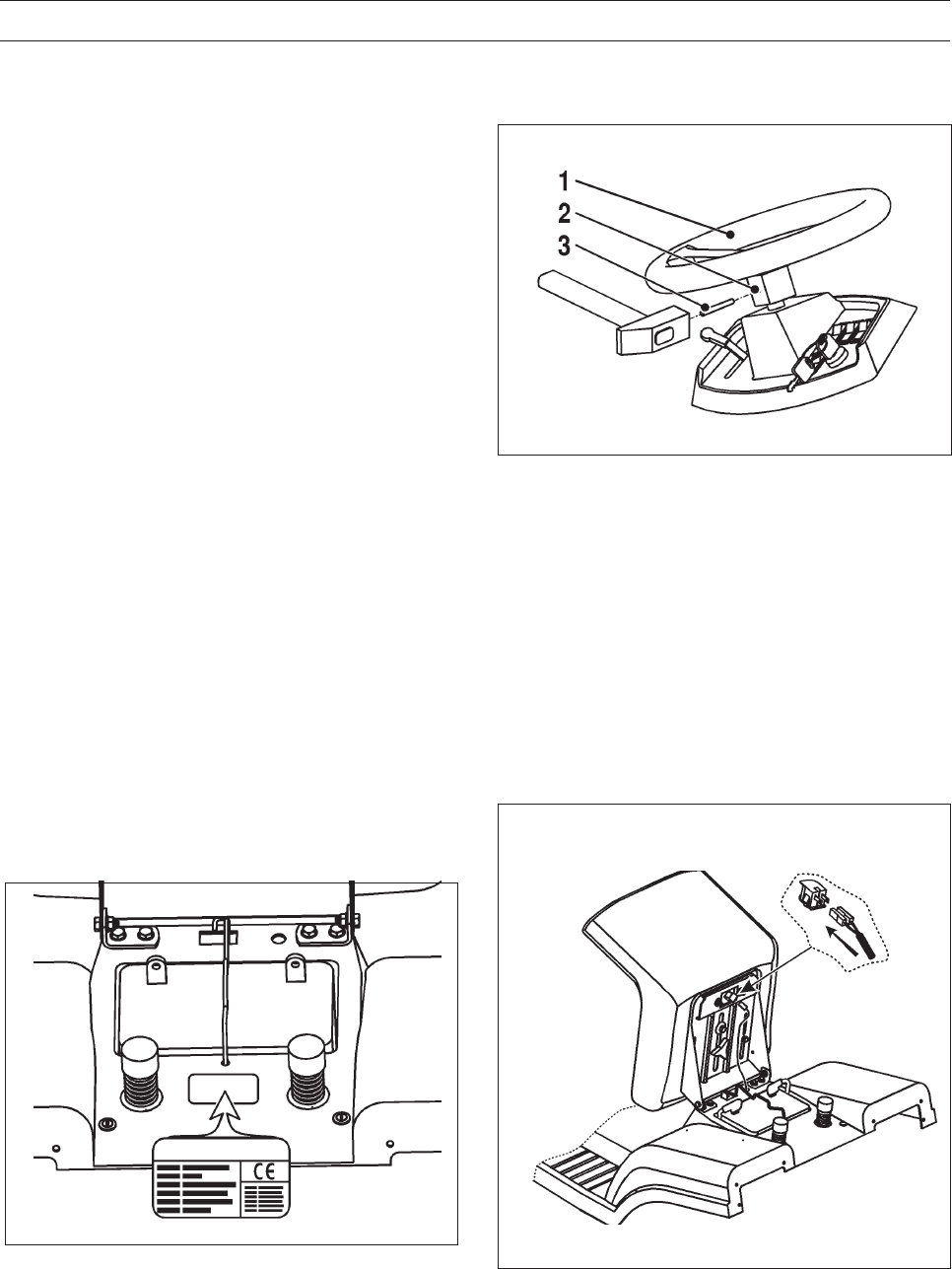

IDENTIFICATION
The tractor identification plate is located under the
driver´s seat and behind the battery. Make a note of the
serial number on this page. This serial number will have
to be guoted when contacting your distributor for service
and ordering spare parts for the tractor. See fig. 1.
Serial No.: ................................................................
STEERING WHEEL (FIG. 2)
Proceed to the following steps:
1. Discard the plastic protection from the seat.
2. Loosen both nuts from the seat hinges on the
tractor.
3. Place the seat and tighten securely with two
bolts, flat and spring washers.
4. Connect the safety switch.
SEAT (FIG.3)
Fig. 3
Fig. 2
Proceed to the following steps:
1. Straighten the front wheels.
2. Align the holes of the steering wheel with the
hole in the steering shaft.
MAKE SURE THE STEERING WHEEL IS
CENTERED AND THE HOLES LINED UP.
3. Insert the lock pin through the holes, and drive
it through the holes with a hammer.
ASSEMBLY
Fig. 1: Identification plate
