- 25 -
a) Stop engine, wait for all moving parts to stop, and remove key. Check air
pressure in tires; recommended tire pressure is: rear, 12-16 psi; front
casters, 15-17 psi.
b) Inflate tires to pressures stated above. Measure circumference of each
drive tire. Adjust tire pressures within the above range to try to make tire
circumferences match as closely as possible.
Note: Front caster tires have permanent tire sealant installed.
5.1.13 Inspect Belt wear.
Service Interval: 40 hrs.
a) Stop engine, wait for all moving parts to stop, and remove key.
b) Remove the three mower deck belt shields to check mower primary and
secondary belt condition.
c) Look under engine deck to check the pump drive belt condition.
d) Check all idler arms to be sure they pivot freely.
5.1.14 Lubrication
a) Stop engine, wait for all moving parts to stop, and remove key.
b) Lubricate fittings with one to two pumps of NGLI grade #2 multi-purpose
gun grease.

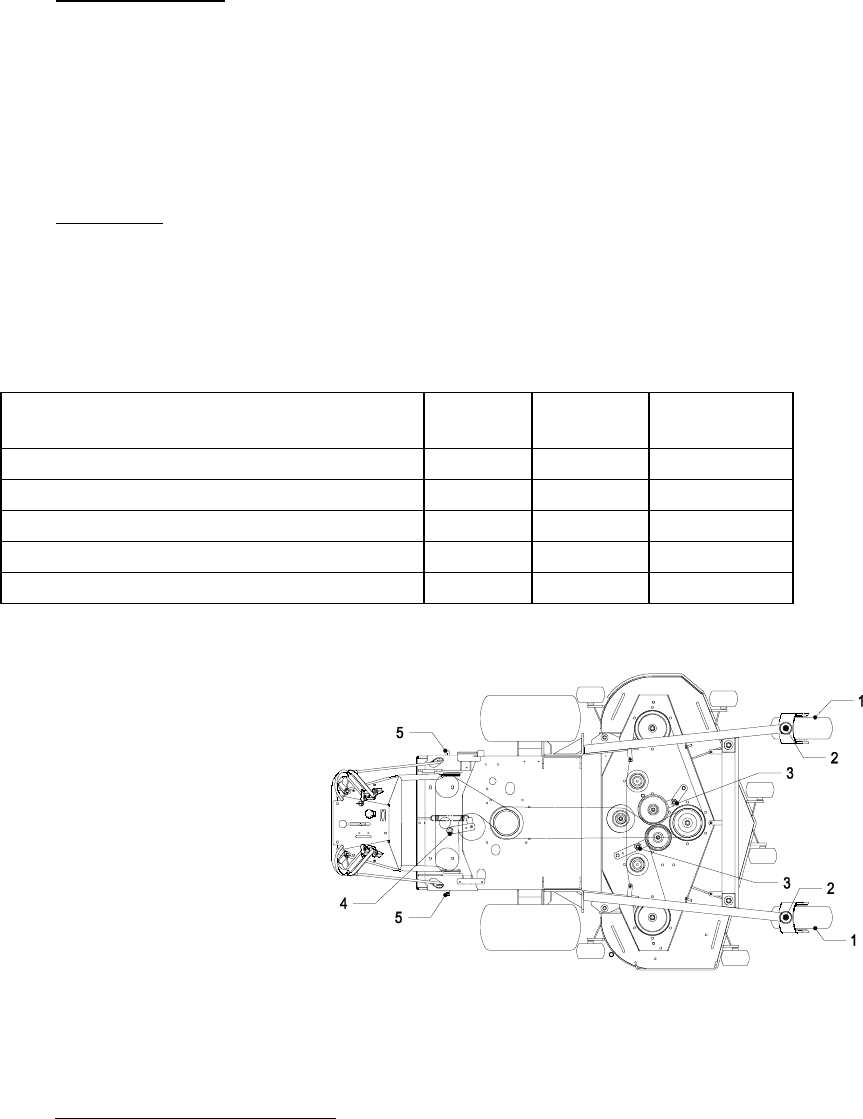

Refer to the following chart for fitting locations and lubrication schedule.
LUBRICATION CHART
FITTING
LOCATIONS
INITIAL
PUMPS
No. of
PLACES
SERVICE
INTERVAL
1. Caster Wheel Bearings *0 2 *Yearly
2. Caster Pivots *0 2 *Yearly
3. Idler Pivots (Mower Deck) 1 2 Weekly
4. Idler Pivot (Pump Drive) 2 1 Weekly
5. Hydro Control Arm Support Bushings
2 2 Weekly
∗
∗∗
∗ See 5.1.14 Section c) for special lubrication instructions on the front caster pivots
and Section 5.1.15 for special lubrication instructions on the front caster wheel hubs.
No. 4 (Idler Pivot (Pump Drive))
Located Under Engine Deck
No. 3 & 4 (Idler Pivots)
Disassemble and grease once a
month under a “No Load” condition.
c) Lubricate front caster pivots once a year. Remove hex plug and cap.
Thread grease zerk in hole and pump with grease until it oozes out
around top bearing. Remove grease zerk and thread plug back in.
Place cap back on.
5.1.15 Lubricate caster wheel hubs:
Service Interval: Once Yearly
a) Stop engine, wait for all moving parts to stop, and remove key.
