9. WIRING DIAGRAMS

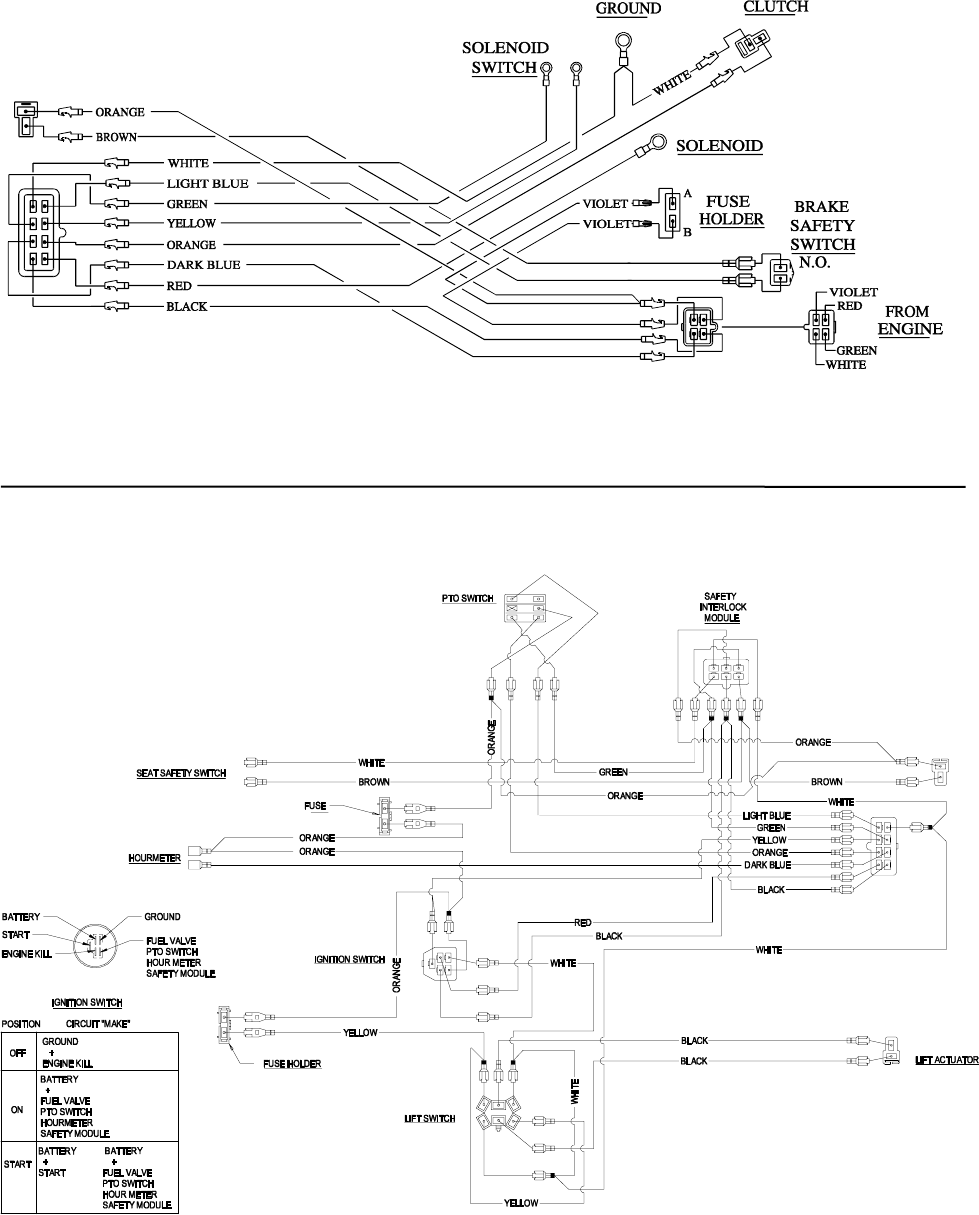

Engine Deck Wiring Diagram
Note: All connectors are viewed from the wire input side of the connector.
N.O. = Normally Open
Console Wiring Diagram
Note: All connectors are viewed from the wire input side of the connector.
N.O. = Normally Open
