- 31 -

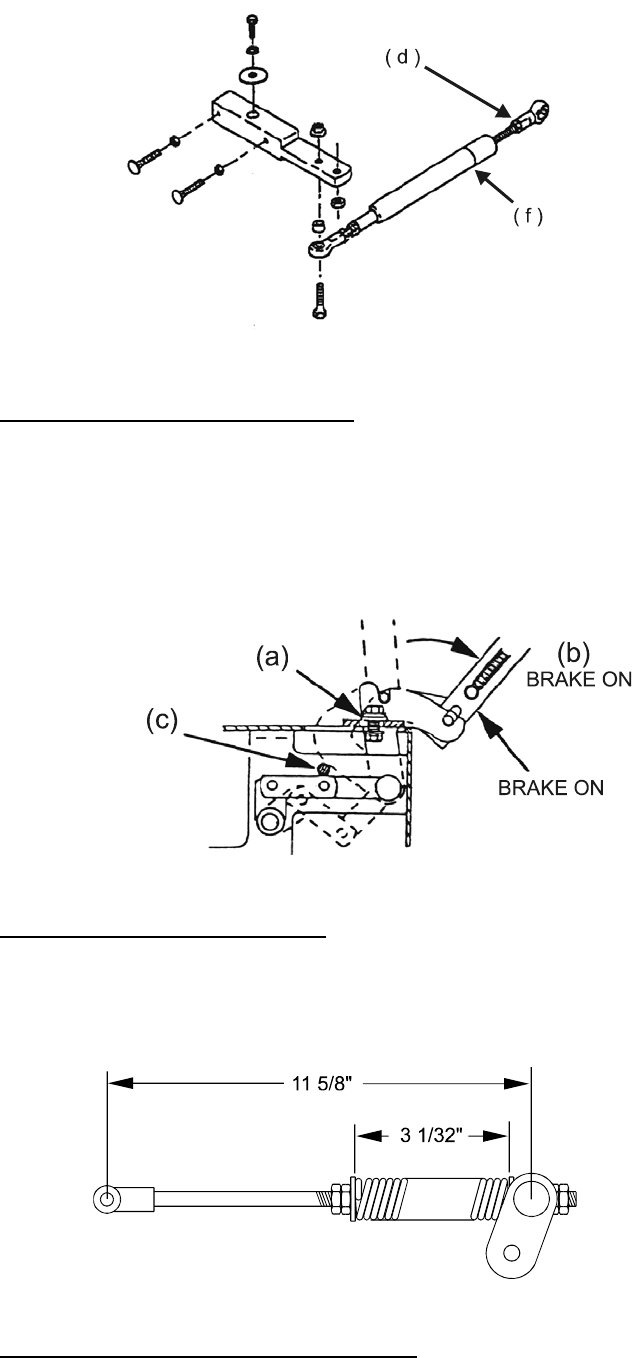

FIGURE 10
NEUTRAL CENTERING DEVICE ADJUSTMENT
6.2.6 Parking Brake Quadrant Adjustment
a) Stop engine, wait for all moving parts to stop, and remove key.
b) Loosen the two 5/16 x 18 screws (a), that clamp the brake quadrant to the
engine deck.
c) Pull parking brake lever towards the operator to the brake “on” position (b).
d) Check linkage to ensure that they butt up against the over-centering stop
bolt (c), and retighten the two 5/16-18 screws (See Figure 11).
FIGURE 11
PARKING BRAKE QUADRANT ADJUSTMENT
6.2.7 Parking Brake Spring Adjustment
a) Stop engine, wait for all moving parts to stop, and remove key.
b) Check the pin to pin length and adjust to 11 5/8” as required.
c) Check the compression spring length and adjust to 3 1/32” as required
(See Figure 12).
FIGURE 12
BRAKE CONTROL LINK AND SPRING ADJUSTMENT
6.2.8 Parking Brake Neutral Lockout Adjustment
.
a) Stop engine, wait for all moving parts to stop, and remove key.
