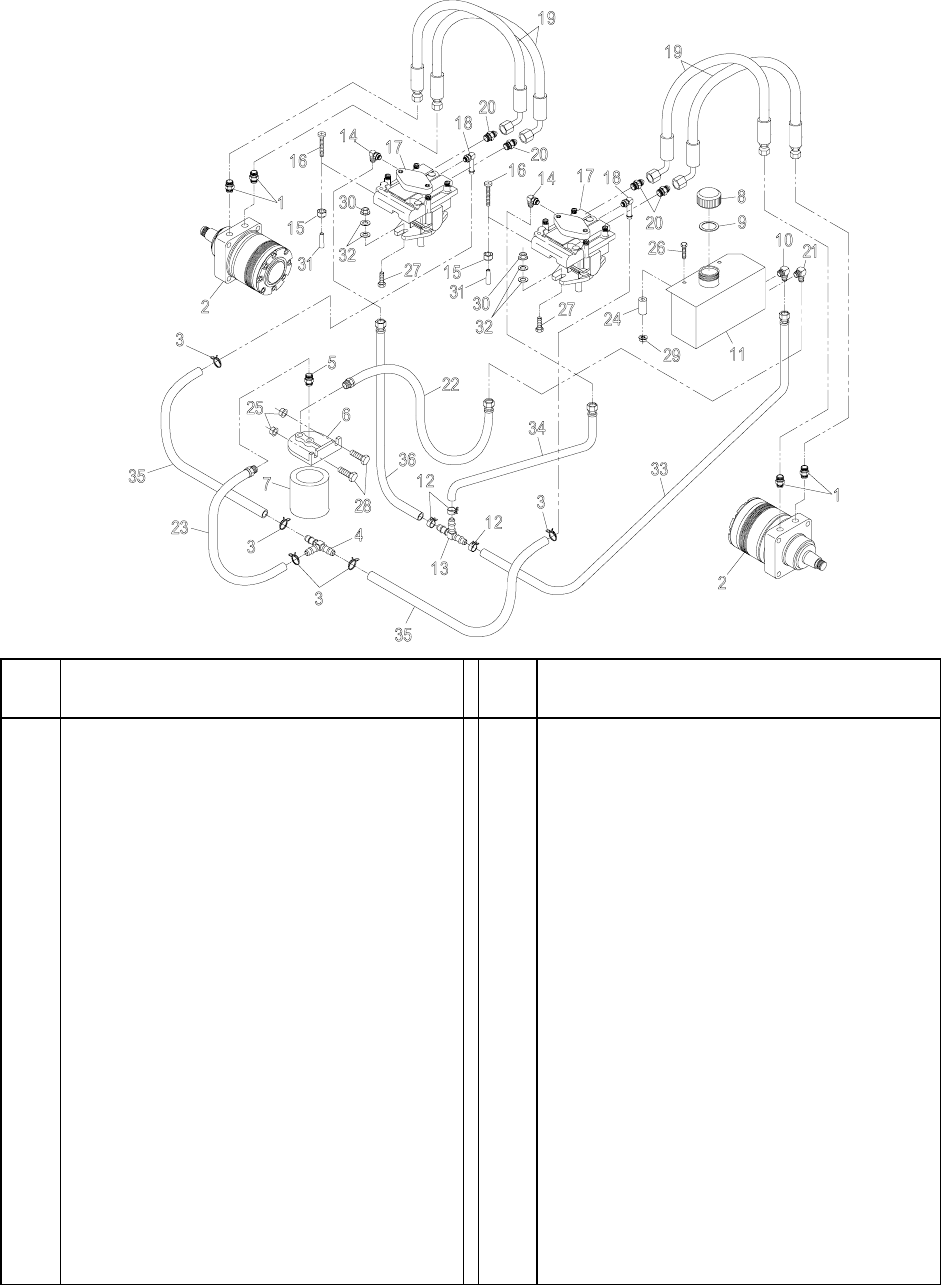

HYDRAULIC GROUP
- 9 -
Ref.
No.
Qty.
Part No. Description Req'd.
Ref.
No.
Qty.
Part No. Description Req'd.
1 1-603991 Fitting, straight connector... 4 17 1-613042 Pump, hydro....................... 2
1-603919 Boss O-Ring....................... 1 18
1-603989 Elbow, 90°.......................... 2
1-603992 Flare O-Ring....................... 1 1-603923 O-Ring................................ 1
2
1-603718 Wheel motor....................... 2
19
1-403102 Hose, high pressure........... 4
1-000138 Kit, Bearing......................... 1
20
1-603990 Adapter, straight thread ..... 4
1-000119 Kit, seal............................... 1 1-603920 Boss O-Ring ...................... 1
3
1-603827 Clamp, hose (5/8)............... 5 1-603992 Flare O-Ring ...................... 1
4
1-603721 Fitting, Hose Tee (3/8 I.D)..1
21
1-603988 Elbow, 90°.......................... 1
5
1-513510 Connector, male................. 1
22
1-602985 Hose, supply ...................... 1
6∗
1-603720 Head, filter.......................... 1
23
1-602754 Hose, charge line............... 1
7
1-513211 Element, oil filter................. 1
24
1-323218 Spacer, hydraulic tank ....... 2
∇
1-523541 Element, oil filter(winter)..... 1
25
32128-20 Nut, whizlock 5/16-18......... 2
8
1-513167 Cap, hydraulic reservoir ..... 1
26
321-11 Screw, 1/4-20 x 2............... 2
9
1-523103 Gasket, tank cap ................ 1
27
323-7 Screw, 3/8-16 x 1-1/4......... 4
10
1-603987 Elbow, 90°.......................... 1
28
322-5 Screw, 5/16-18 x 1............. 2
11∗
1-512166-03 Reservoir, hydraulic fluid.... 1
29
32128-33 Nut, whizlock 1/4-20........... 2
12
1-603826 Hose Clamp 1/2 ................. 3
30
3290-357 Nut, whizlock 3/8-16........... 4
13
1-603722 Fitting - Hose Tee(1/4 I.D)..1
31
1-613073 Grip, dump valve................ 2
14
1-513840 Elbow - 90°......................... 2
32
3256-3 Washer, 5/16 std ............... 8
1-603921 O-Ring................................ 1
33
1-602750 Hose, case drain................ 1
15
3296-42 Nut, nylock 1/4-20 .............. 2
34
1-632286 Hose assy, lo pressure ...... 1
16
1-801063 Screw, 1/4-20x2 pan head . 2
35
1-413273 Hose, lo pressure............... 2
36
1-632285 Hose assy, lo pressure ...... 1
∗ Use Teflon Pipe Sealant or equivalent on hydraulic reservoir and filter head fittings.
∇ Use only for operation below 32°F(0°C)
Emark black touch up spray paint - gloss black
