Note: The motion control lever needs to be in
neutral while making any necessary adjustments.
7. Bring the motion control levers into the neutral
position. Adjust pump control rod lengths
by rotating the double nuts on the rod in the
appropriate direction until the wheels slightly
creep in reverse (Figure 33). Move the motion
control levers to the reverse position and while
applying slight pressure to the lever allow the
reverse indicator springs to bring the levers back
to neutral. The wheels must stop turning or
slightly creep in reverse.

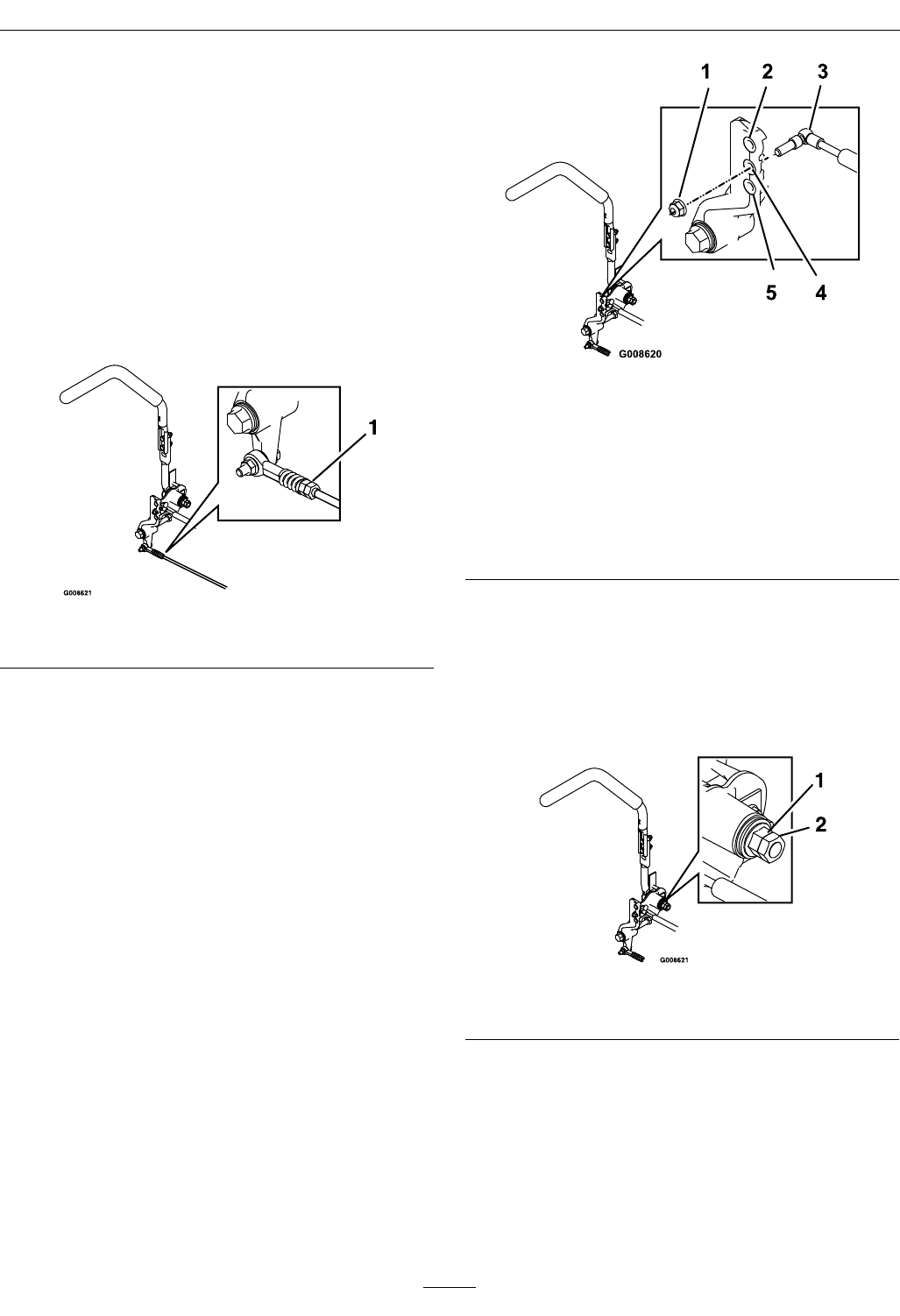

Figure 33
1. Double nuts
8. Shut off unit. Remove jumper wire from wire
harness and plug connector into seat switch.
9. Remove the jack stands.
10. Raise the deck and re-install the height of cut pin.
11. Check that the machine does not creep in neutral
with the park brakes disengaged.
Motion Control Damper
Adjustment
The top damper mounting bolt can be adjusted to
obtain a more desired motion control lever resistance.
See Figure 34 for mounting options.
Figure 34
RH Motion Control Shown
1. Torque nyloc nut to 200 in-lb (16.7 ft-lb). Bolt must
protrude past end of nyloc nut after torque. A T-40 Torx
bit will be necessary to hold the stud from turning.
2. Most resistance (rmest feel)
3. Damper
4. Medium resistance (medium feel)
5. Least resistance (softest feel)
Motion Control Neutral Lock
Pivot Adjustment
The anged nut can be adjusted to obtain a more
desired motion control lever resistance (Figure 35).
Figure 35
1. Flanged nut 2. Jam nut
1. Loosen the jam nut.
2. Tighten or loosen the anged nut to the desired
feel.
For more resistance, tighten the anged nut.
For less resistance, loosen the anged nut
3. Tighten jam nut.
