Operation
1. Stop the machine and move the motion control
levers outward to the neutral locked position.
2. Disengage the PTO.
3. Engage the park brake.
4. Stop the engine, remove the key and wait for all
moving parts to stop.
5. After adjusting the height of cut, adjust the
anti-scalp rollers by removing the nyloc nut,
bushing, spring disc washer and whizlock nut.
6. Place the rollers in one of the positions shown
(Figure 18). Rollers will maintain 3/4 inch (19
mm) clearance to the ground to minimize gouging
and roller wear or damage.

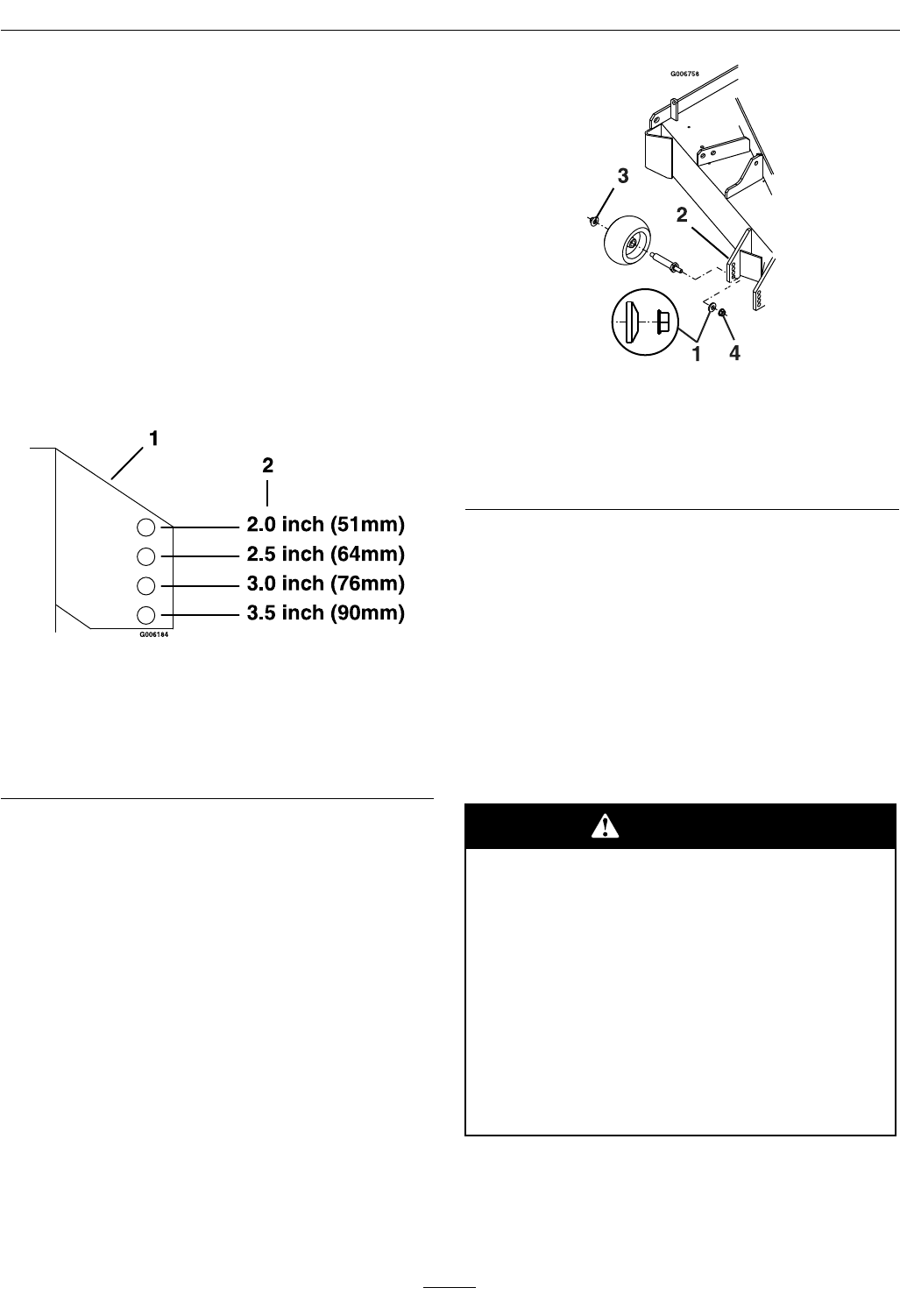

Figure 18
For cutting heights above 3.5 inches (90 mm) use the
bottom hole. The rollers will still be effective against
scalping.
1. Anti-scalp roller
mounting bracket
2. Cutting height
For Maximum Deck Flotation, place the rollers
one hole position lower. Rollers should maintain
1/4 inch (6.4 mm) clearance to the ground. Do
Not adjust the rollers to support the deck.
7. Be sure the whizlock nuts are installed with the
spring disc washer between the head of the nut
and the mounting bracket.
Note: The foot operated deck lift lever can be
used to momentarily lift the deck to clear objects.
Be sure that PTO is disengaged.
8. Torque the 3/8–16 whizlock nut to 30-35 ft-lb
(41-47 N-m) (Figure 19).
9. Torque the 3/8 nyloc nut to 30–35 ft-lb (41-47
N-m).
Figure 19
1. Spring disc washer
(cone towards nut )
3. 3/8 nyloc-torque to 30-35
ft-lb (41-47 N-m)
2. Front right anti-scalp
bracket shown
4. 3/8-16 whizlock nut
torque to 30-35 ft-lb
(41-47 N-m)
Transporting
Transporting a Unit
Use a heavy-duty trailer or truck to transport the
machine. Lock brake and block wheels. Securely
fasten the machine to the trailer or truck with straps,
chains, cable, or ropes. Be sure that the trailer or truck
has all necessary lighting and marking as required by
law. Secure a trailer with a safety chain.
CAUTION
This unit does not have proper turn
signals, lights, reective markings, or a
slow moving vehicle emblem. Driving on a
street or roadway without such equipment
is dangerous and can lead to accidents
causing personal injury. Driving on a street
or roadway without such equipment may also
be a violation of State laws and the operator
may be subject to trafc tickets and/or nes.
Do Not drive a unit on a public street or
roadway.
