Bolt Location
Torque
Anti-Scalp Roller Nyloc
Nut See Figure 19
30-35 ft-lb (41-47 N-m)
Anti-Scalp Roller Whizlock
Nut See Figure 19
30-35 ft-lb (41-47 N-m)
Engine Mounting Bolts
(Kawasaki 20HP)
27-33 ft-lb (37-45 N-m)
Wheel Lug Nuts
90-95 ft-lb (122-129 N-m)
Hydro Mounting Bolts 72-77 ft-lb (98-104 N-m)
Wheel Hub Slotted Nut
(Style A)
211-260 ft-lb
(286-352 N-m)
Wheel Hub Slotted Nut
(Style B)
minimum 200 ft-lb
(271 N-m)
Rollover Protection
System (Roll Bar) 1/2
inch Mounting Bolts
75-80 ft-lb (102-108 N-m)
Clutch Retaining Bolt
(secured with threadlocker)
55-60 ft-lb (75-81 N-m)
Hydro Park Brake Cable
Anchor 1/2 inch Mounting
Bolt (secured with
threadlocker)
67-89 ft-lb (91-121 N-m)
Product Overview

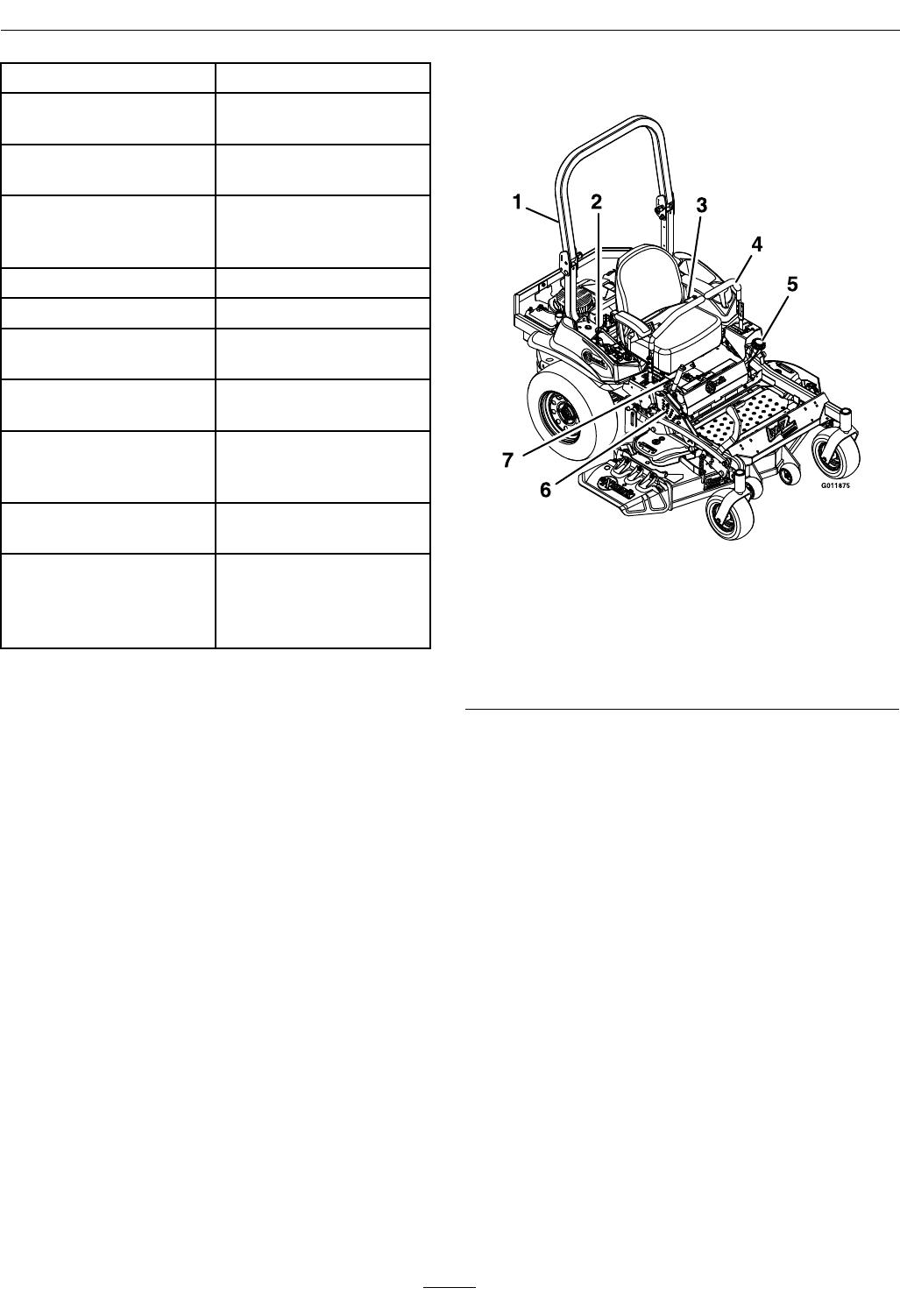

Figure 4
1. Rollover Protection
System (ROPS)
5. Fuel cap
2. Engine Controls (right
console)
6. Height of cut adjustment
3. Seat belt
7. Parking brake
4. Motion control levers
