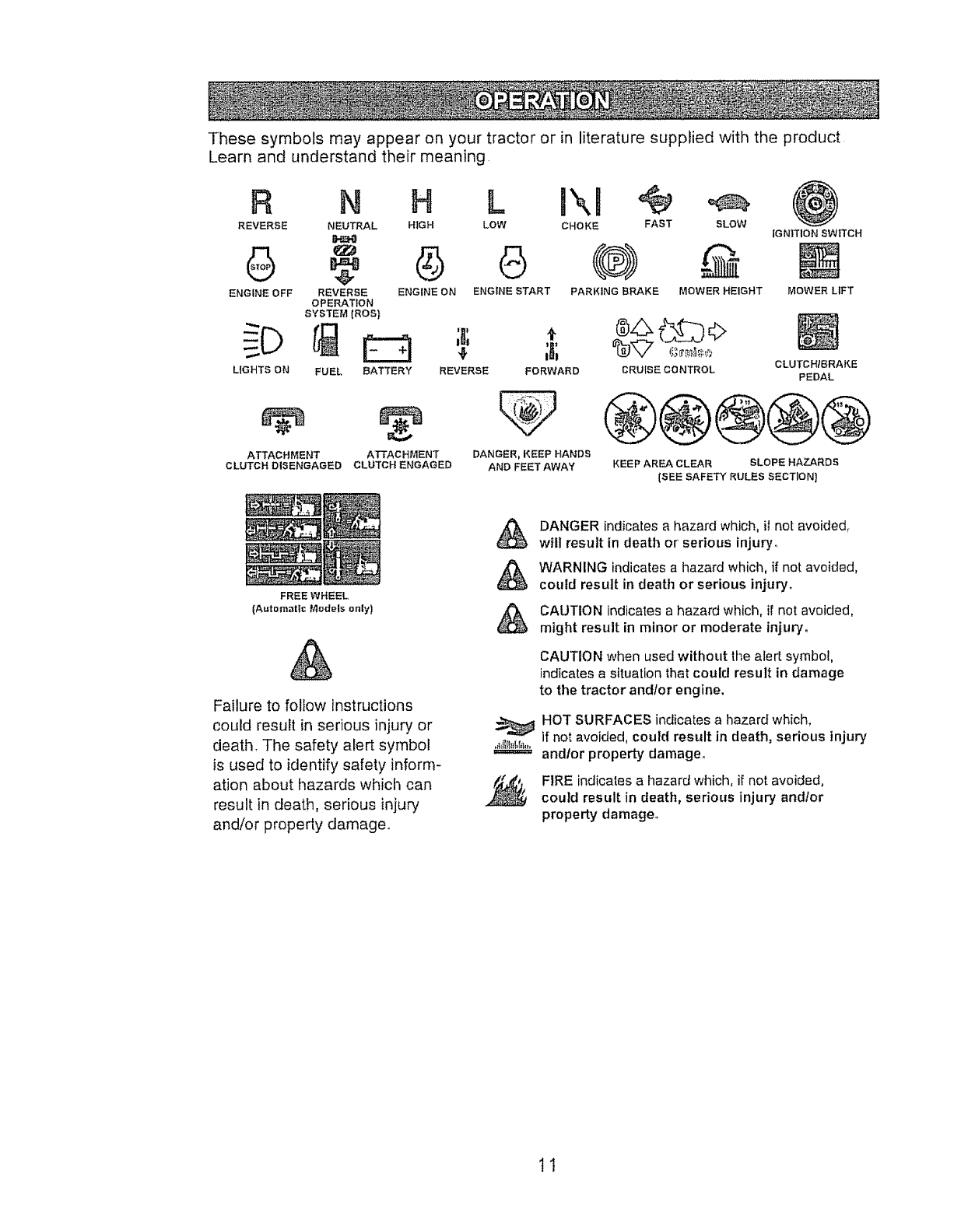

These symbols may appear on your tractor or in literature supplied with the product
Learn and understand their meaning,
R H L IXR @ @
REVERSE HIGH LOW CHOKE FAST SLOW
IGNITION SWITCH
N
NEUTRAL
ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE MOWER HEIGHT
OPERATION
SYSTEM{ROS)
@
MOWER LIFT
LIGHTS ON FUEL, BATTERY REVERSE FORWARD CRUISE CONTROL CLUTCHtBRAKE
PEDAL
ATTACHMENT ATTACHMENT DANGER, KEEP HANDS
CLUTCH DISENGAGED CLUTCH ENGAGED AND FEET AWAY
FREE WHEEL
{Automatic Models only I
Failure to follow instructions
could result in serious injury or
death, The safety alert symbol
is used to identify safety inform-
ation about hazards which can
result in death, serious injury
and/or property damage.
®@@@@
KEEP AREA CLEAR SLOPE HAZARDS
[SEE SAFETY RULES SECTION)
DANGER indicates a hazard which, if not avoided_
will result in death or' serious injury.
WARNING indicates a hazard which, if not avoided
could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided
might result in minor or moderate injury.
CAUTION when used without the alert symbol,
indicates a situation that could result in damage
to the tractor andlor engine.
HOT SURFACES indicates a hazard which,
if not avoided, could result in death, serious injury
and/or property damage.
FIRE indicates a hazard which, if not avoided,
could result in death, serious injury and/or
property damage°
1!
