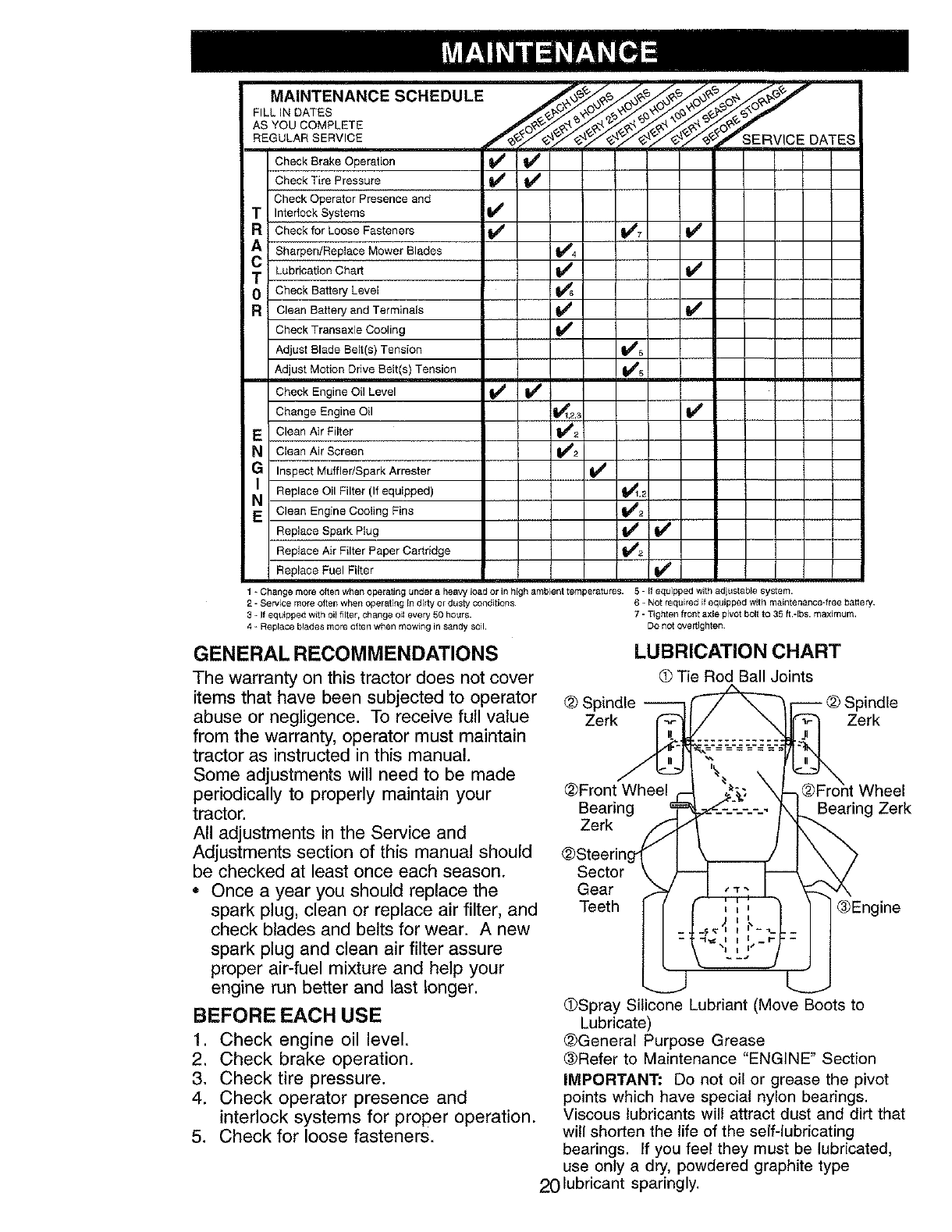

FILLINDATES ._,_y'__,_ e_
ASRE ULARSERVIoE OUCOMPLETE ---- OATES
Check Brake Operation _
Check Tire Pressure I1_
Check Operator Presence and
T Interlock Systems If
a Check for Loose Fasteners I_ _7
Sharpen/Replace Mower Blades _4
T Lubrication Chart II_ I_
0 Check Battery Level I_
R Clean Batteryand Terminals I_
Check Transaxle Cooling I_
Adjust Blade Belt(s) Tension _5
Adjust Motion Drive Belt(s) Tension I_s
Check Engine Oil Level I_ If
Change Engine Oil I_ 2,_ I_
E Clean Air Filter 1_2
N Clean Air Screen 11##2
IIG Inspect Muffler/SparkArrester If
Replace Oil Filter (If equipped) _.2
N Clean Engine CoolingFins 1_2
Replace Spark Plug If If
Replace Air Filter Paper Cartridge 1_2
Replace Fuel Fi_ter
1 - Change more often when operating under a heavy load or in hEgh ambient temperatures. 5 - ff equipped 'Mth adiustable system.
2 - Sen4ce more often when operating In dgty or dusty conditions. 6 - Not required if equipped wEth maintenance-free battery.
3 - If equipped with oil filter, change oil every 50 hours. 7 - Tighten front axle pivot bolt to 35 ft.-[bs, maximum,
4 - Replace blades more often when mowing in sandy soil. DO not overt]ghten
GENERAL RECOMMENDATIONS
The warranty on this tractor does not cover
items that have been subjected to operator
abuse or negligence. To receive full value
from the warranty, operator must maintain
tractor as instructed in this manual.
Some adjustments will need to be made
periodically to properly maintain your
tractor.
All adjustments in the Service and
Adjustments section of this manual should
be checked at least once each season.
Once a year you should replace the
spark plug, clean or replace air filter, and
check blades and belts for wear. A new
spark plug and clean air filter assure
proper air-fuel mixture and help your
engine run better and last longer.
BEFORE EACH USE
1. Check engine oil level.
2, Check brake operation.
3. Check tire pressure.
4. Check operator presence and
interlock systems for proper operation.
5. Check for loose fasteners.
LUBRICATION CHART
(DTie Rod Ball Joints
@ Spindle --
Zerk Zerk
@Front Wheel
Bearing
Zerk
@Steerin/
Sector \
Gear
Teeth
I
i I
4 ,"
.-I.i_ i I I I-
p"__ _ Wheel
Bearing Zerk
I @Engine
J
(#Spray Silicone Lubriant (Move-B_oots to
Lubricate)
@General Purpose Grease
@Refer to Maintenance "ENGINE" Section
IMPORTANT: Do not oil or grease the pivot
points which have special nylon bearings.
Viscous lubricants will attract dust and dirt that
will shorten the life of the self-lubricating
bearings. If you feel they must be lubricated,
use only a dry, powdered graphite type
20 lubricant sparingly.
