BAFFLE INSTALLATION
1. Determine which baffle to use (See Chart).
2. Lift side discharge chute (H, Figure 1).
3. Insert baffle (F) through discharge opening and posi-
tion baffle into place.
4. Tighten carriage bolts (A) and locknut(s) (E) on baffle (F).
5. Tighten carriage bolt (B) and locknut(s) (E) on baffle (F).
6. Position baffle (G) into place.
7. Tighten carriage bolts (C) and locknut(s) (E) on baffle (G).
8. Tighten carriage bolts (D) and locknut(s) (E) on baffle (G).

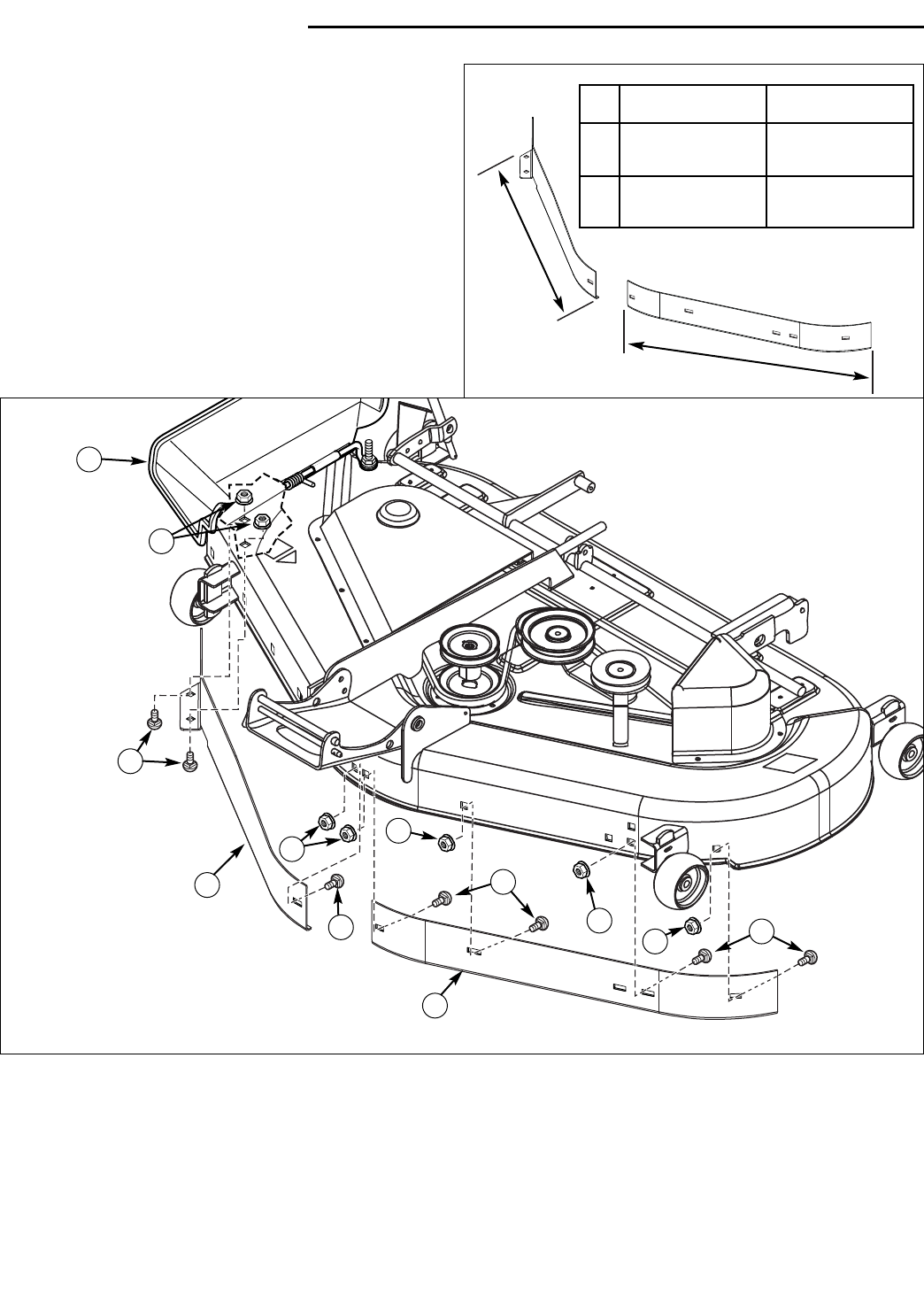

Figure 1. Baffle Assembly
A. Carriage Bolts,
5/16-18 x 5/8
B. Carriage Bolt,
5/16-18 x 5/8
C. Carriage Bolts,
5/16-18 x 5/8
D. Carriage Bolts,
5/16-18 x 5/8
E. Locknuts, 5/16-18
F. Right Hand Baffle
G. Left Hand Baffle
H. Discharge Chute
E
A
F
E
E
C
E
E
D
B
G
H
“A”
44” Mower Deck 50” Mower Deck
“A”
RH side
26-1/4” long
RH side
29-3/4” long
“B”
LH side
24-7/8” long
LH side
27-3/4” long
“B”
Tube Component Assembly
