Locating parts on the system board

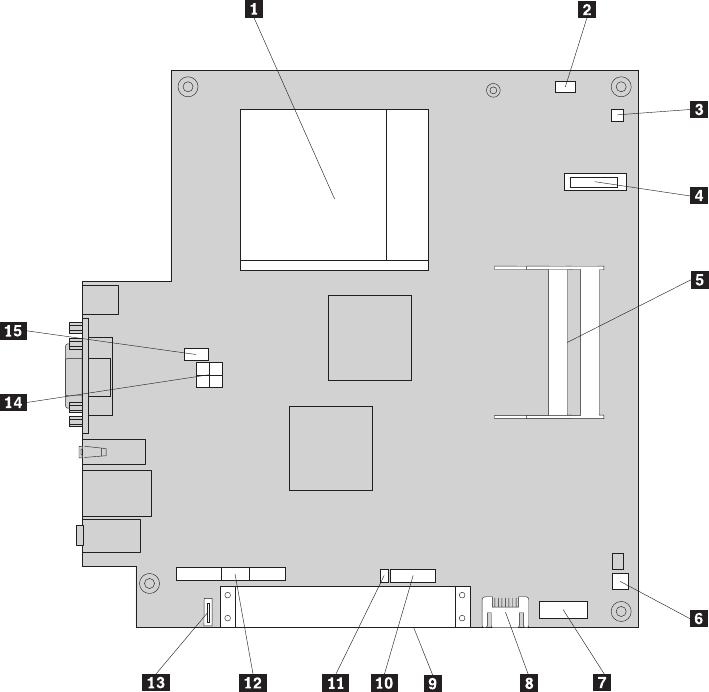

The following illustration shows the locations of parts on the system board.
1 Microprocessor 9 PCI slot
2 Clear CMOS/Recovery jumper 10 Front USB connector 2
3 Thermal sensor connector 11 Intrusion switch connector/Cover
presence switch connector
4 Battery 12 Front I/O and LED/Switch header
5 Memory slots (2) 13 eSATA connector
6 Internal speaker connector 14 Internal power distribution connector
7 Serial (COM) connector 15 System fan connector
8 SATA connectors (2)
Figure 4. System board parts locations
Chapter 8. Replacing FRUs 83
