Locating connectors on the rear of the computer

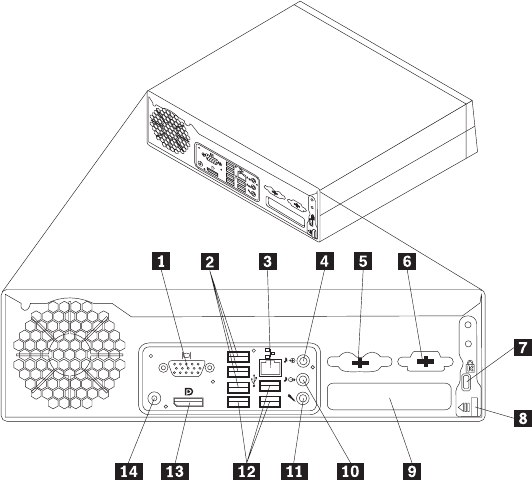

The following illustration shows the locations of the connectors on the rear of the
computer.
1 VGA (Video Graphics Array)
monitor connector
8 Cover-release button
2 USB connectors (3) 9 Adapter card slot
3 Ethernet connector 10 Audio line-out connector
4 Audio line-in connector 11 Microphone connector
5 Standard mouse and keyboard
connectors (some models)
12 USB connectors (3)
6 Serial port (some models) 13 DisplayPort connector
7 Cable lock connector 14 AC power adapter connector
Figure 2. Rear connector locations
Chapter 8. Replacing FRUs 81
