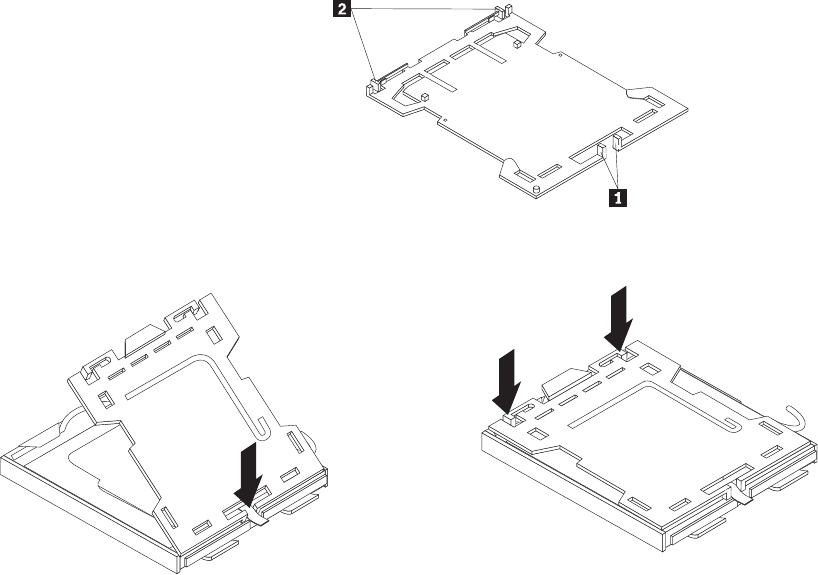

3. Insert the tabs 1 of the socket cover into the hinged side of the socket, and
then press the other side of the socket cover downward until the tabs 2 snap
into position.
Figure 18. Tabs on the microprocessor socket cover (bottom view)
Figure 19. Installing the microprocessor socket cover
98 Hardware Maintenance Manual
