Product Overview
Tread Width: (Center to Center of
Tires, Widthwise)
48 inch Deck 52 inch Deck
Drive Wheels 36.0 inches
(91 cm)
36.8 inches
(93 cm)
Caster Wheels 33.5 inches
(85 cm)
33.5 inches
(85 cm)
Wheel Base: (Center of Caster Tire to
Center of Drive Tire)
48 inch Deck 52 inch Deck
48.9 inches (124 cm) 48.9 inches (124 cm)
Curb Weight:
48 inch Deck 52 inch Deck
645 lb (293 kg) 660 lb (299 kg)
Torque Requirements
Bolt Location
Torque
Spindle Pulley Nut 95-105 ft-lb (129-142 N-m)
Blade Mounting Bolt
(lubricate with anti-seize)
32-42 ft-lb (43-57 N-m)
Engine Mounting Bolts
27-33 ft-lb (37-45 N-m)
Anti-Scalp Roller Nyloc
Nut
27-33 ft-lb (37-45 N-m)
Wheel Lug Nuts
70-90 ft-lb (95-122 N-m)
Clutch Mounting Bolt
(secured with threadlocker)
50-55 ft-lb (68-75 N-m)
Spark Plug
15 ft-lb (20 N-m)
Product Overview

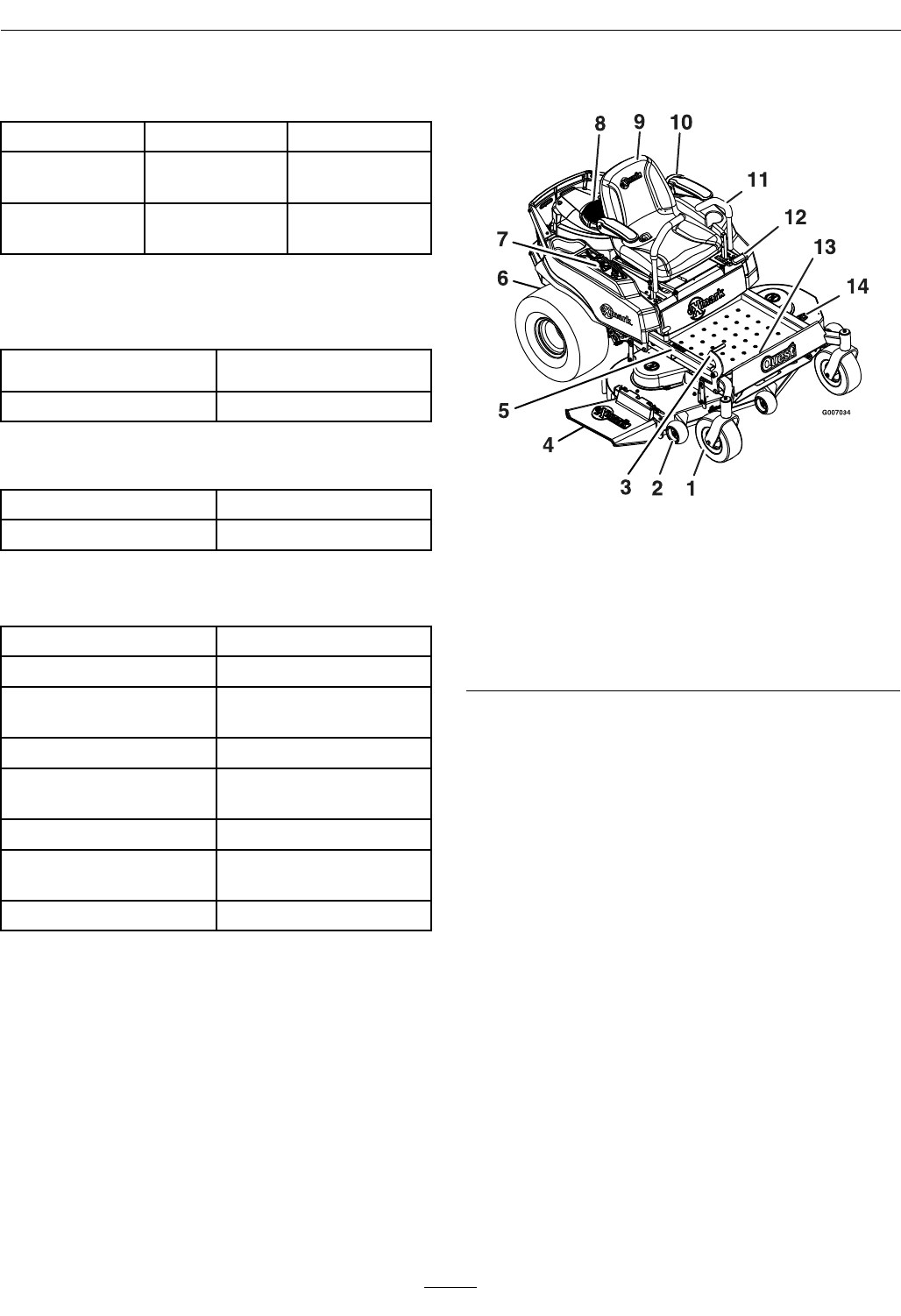

Figure 3
1. Front caster wheel 8. Engine
2. Anti-scalp roller
9. Seat
3. Height of cut foot lever
10. Armrest
4. Discharge deector
11. Motion control levers
5. Height of cut adjustment
12. Park brake
6. Rear drive wheel 13. Footrest
7. Control panel 14. Washout tting
