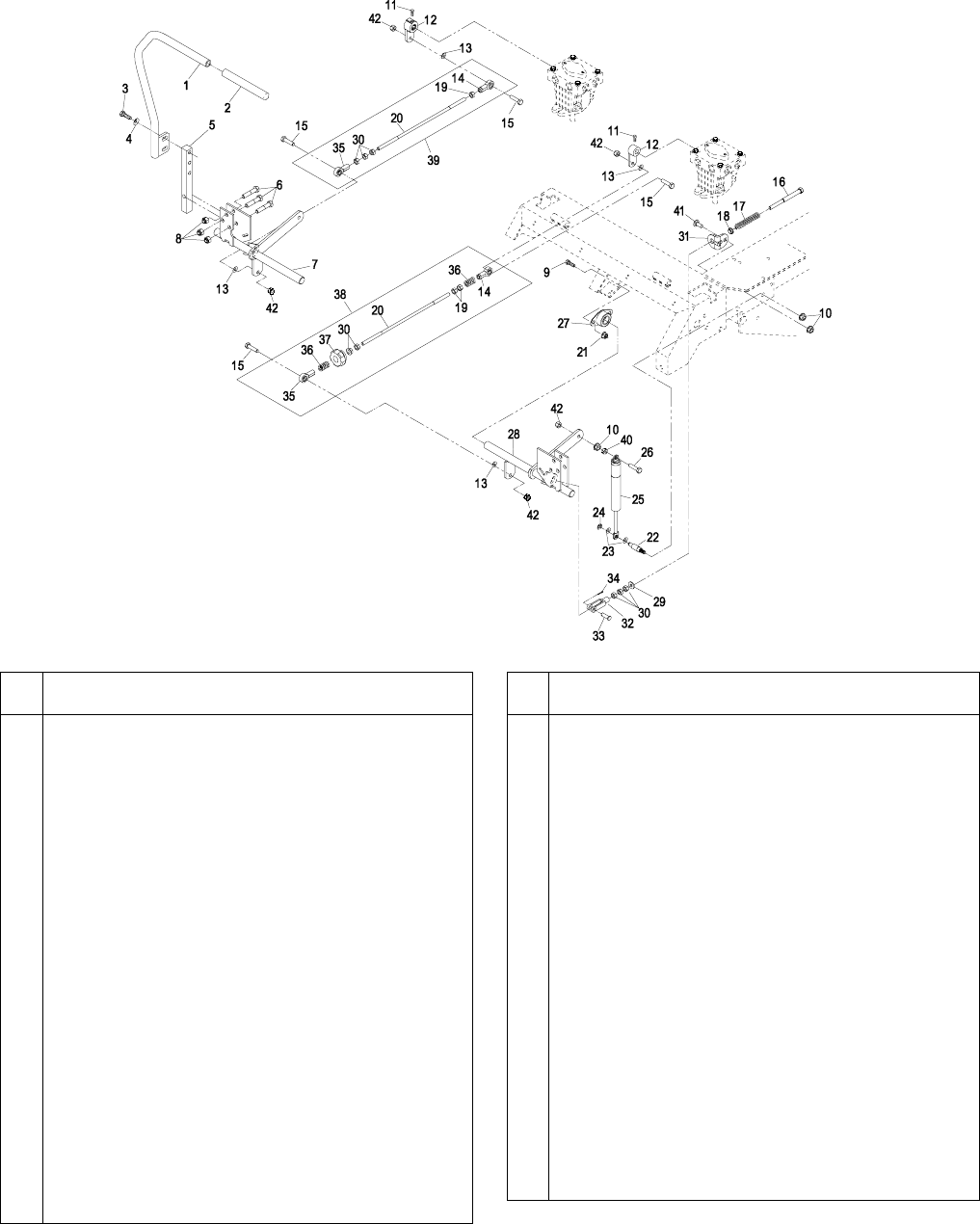

MOTION CONTROL GROUP
- 12 -
Item
Part No.
Description
Qty.
1 103-3458 Handle 103-3327-03 W/Grip (RH)..........1
6
103-3457 Handle 103-3326-03 W/Grip (LH)...........1
2 103-3456 Grip, Motion Cntrl Handle.......................2
3 323-6 Screw, 3/8-16 x 1...................................4
4 98-5975 Washer, Disc Spring 3/8........................4
5 103-0407 Arm, Control Shaft .................................2
6 323-9 Screw, 3/8-16 x 1 3/4.............................6
7 103-4773 Bracket, Motion Cntrl (RH).....................1
8 3296-39 Nut, Nyloc 3/8-16...................................6
9 323-4 Screw, 3/8-16 x 3/4................................8
10 32128-20 Nut, Whizlock 5/16-18............................6
11X 1-803022 Setscrew, 5/16 x 5/8 ..............................2
12 103-3717 Arm, Pump Control ................................2
13 3256-3 Washer, 5/16 Std...................................4
14 1-633152 Ball Joint (LH)........................................2
15 322-6 Screw, 5/16-18 x 1 1/4 ...........................4
16 1-603737 Bolt, (Neutral Return).............................2
17 1-603807 Spring, (Neutral Return).........................2
18 109-3769 Bushing, Nylon (Reverse Ind.) ..............2
19 1-804524 Nut, 5/16-24 (LH) ...................................3
20 103-3066 Link, Pump Control ................................2
21 3290-357 Nut, Whizlock 3/8-16..............................8
Item
Part No.
Description
Qty.
22 103-4101 Pin, Damper Anchor ..............................2
23 3256-23 Washer, 5/16 SAE.................................4
24 32120-35 E-Ring ...................................................2
25 109-2339 Damper..................................................2
26 1-403180 Screw, 5/16-18x1 1/4 Special ................2
27 1-633102 Bearing, Flanged ...................................4
28 103-4774 Bracket, Motion Control(LH) ..................1
29 3256-2 Washer, 1/4...........................................2
30 3219-2 Nut, 5/16-24...........................................10
31 109-3908 Tab, Adjustment ....................................2
32 1-303105 Yoke......................................................2
33 1-808280 Pin, Clevis 5/16 x 1................................2
34 3272-5 Pin, Cotter 3/32 x 1/2.............................2
35 1-543017 Ball Joint (RH) .......................................2
36 1-323245 Spring, Compression.............................2
37 103-3060 Knob, Tracking ......................................1
38 103-4326 Asm, Tracking .......................................1
39 103-4327 Asm, Tracking .......................................1
40 3217-6 Nut, Hex 5/16-18....................................2
41 3230-23 Bolt, Carriage 5/16-18 x 3/4, short neck.2
42 3296-29 Nut, Nyloc 5/16-18.................................6
Exmark black touch up spray paint – gloss black.
6 Not Illustrated.
X Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrews.
