Button Name Function
Reference Page
21 POINTER To display the video pointer on the screen.
22 Directions To move the video pointer while it is displayed.
23 PAUSE To make the image pause still.
24 AWB To obtain the white balance automatically.
25 LAMP To turn ON/OFF the upper lighting units.
26 MAIN To switch the image output of the RGB-out terminal
[RGB OUT] to the Presenter camera image.
27 RGB1 To switch the image output of the RGB-out terminal
[RGB OUT] to RGB-in Terminal [RGB IN].
Note: When [1] (TV) is chosen by [A] key of the
In/Out selector switch in the rear, the video
image on TV cannot be changed.
28 TELE To zoom in.
29 WIDE To zoom out.
30 NEAR To move the focus near.
31 FAR To move the focus far.
32 AUTO IRIS To set the initial setting.
33 OPEN To open the iris.
34 CLOSE To close the iris.
35 AF To focus automatically.
36 S-video output Terminal To connect to a monitor or other epuipment.
[S-VIDEO OUTPUT]
P.18
P.18
P.20
P.20
P.17
P.15, P.17, P.18
P.15, P.17
P.19
P.19
P.19
P.19
P.19
P.15, P.18
P.13

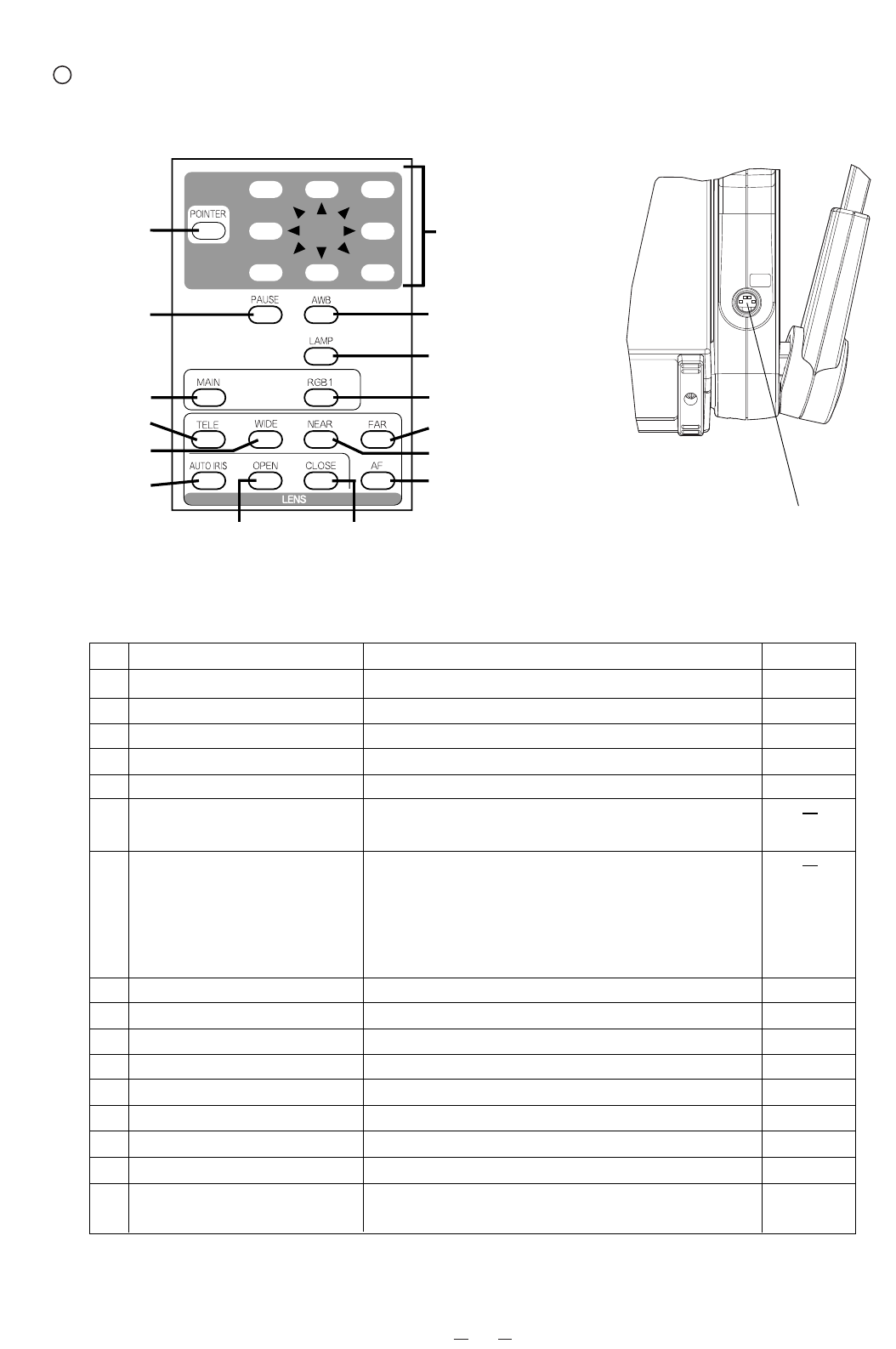

Wireless Remote Control
21. POINTER
23. PAUSE
26. MAIN
28. TELE
29. WIDE
22. Directions
25. LAMP
31. FAR
30. NEAR
32. AUTO IRIS
33. OPEN
34. CLOSE
35. AF
