Component Identification
7

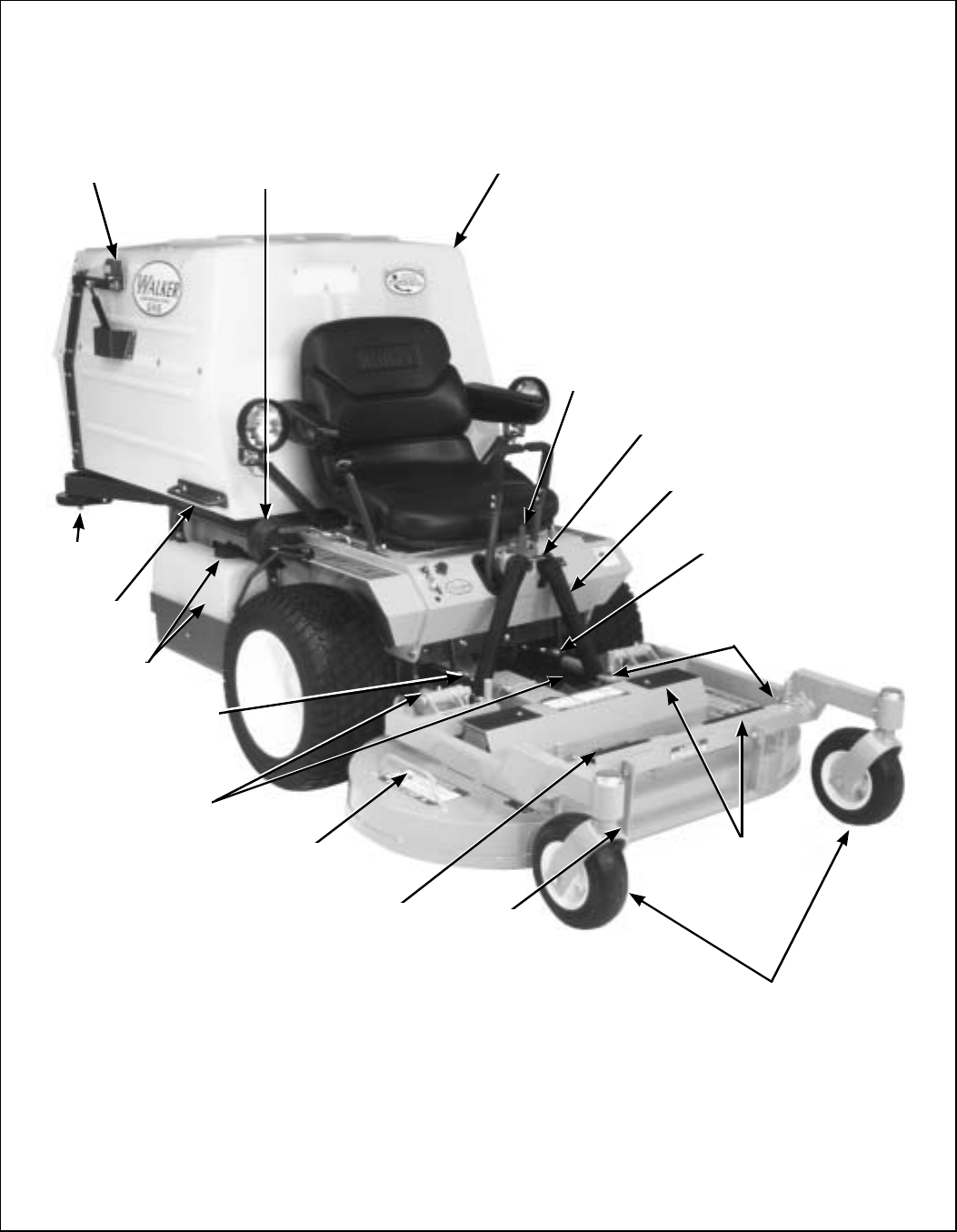

Front View and Right Side View
NOTE: Control Identification
shown in Operating
Instructions section.
Catcher Door
Safety Latch
Turbine
Precleaner
Grass Handling System
9.5 Bushel Catcher
Anti-Scuff
Roller
Catcher Lift /
Dump Handle
Transmission Control
Rod Adjustment Nut
(RH)
Deck Lift Handle
(Cutting Height Adjustment)
Tilt-Up Hook
(Not Visible)
Deck
Caster Wheels
Counterweight Spring
and Protective Cover
Spring Clip
Tilt-Up
Latch
Footrests
Tilt-Up
Deck Handle
Deck Support Pins
and Height Adjustment
Hitch Pins
Transmission Control Rod
Adjustment Nut (LH)
Fuel Tank and Cap
Deck Support Arms
