Step 5
Turn the lattice panels over and
position them so that the uprights are
facing each other with the notches
down, resting on the 2"x 4" header as
shown in Diagram 5.
Step 6
Adjust the panel units so the end of the
header is flush with the inside edge of the
lattice panel frame as shown in Diagram 6.
The header should fit snugly in the
notches. Secure each lattice panel to the
header with two 2-1/2" screws as shown.
Step 7
Attach the Corbels [9] to the wall units
with four 2-1/2" screws as shown in
Diagram 7. Make sure the corbel is flush
with the outside of the header. The
corbels are pre-drilled for your
convenience.
Repeat Steps 2 through 6 with the
remaining three wall sections.
Pro Tip: You will need an assistant for
the following steps.
Sundance Spas Gazebos Installation Instructions WillowWood
End of header
flush with inside
of lattice frame
Flush

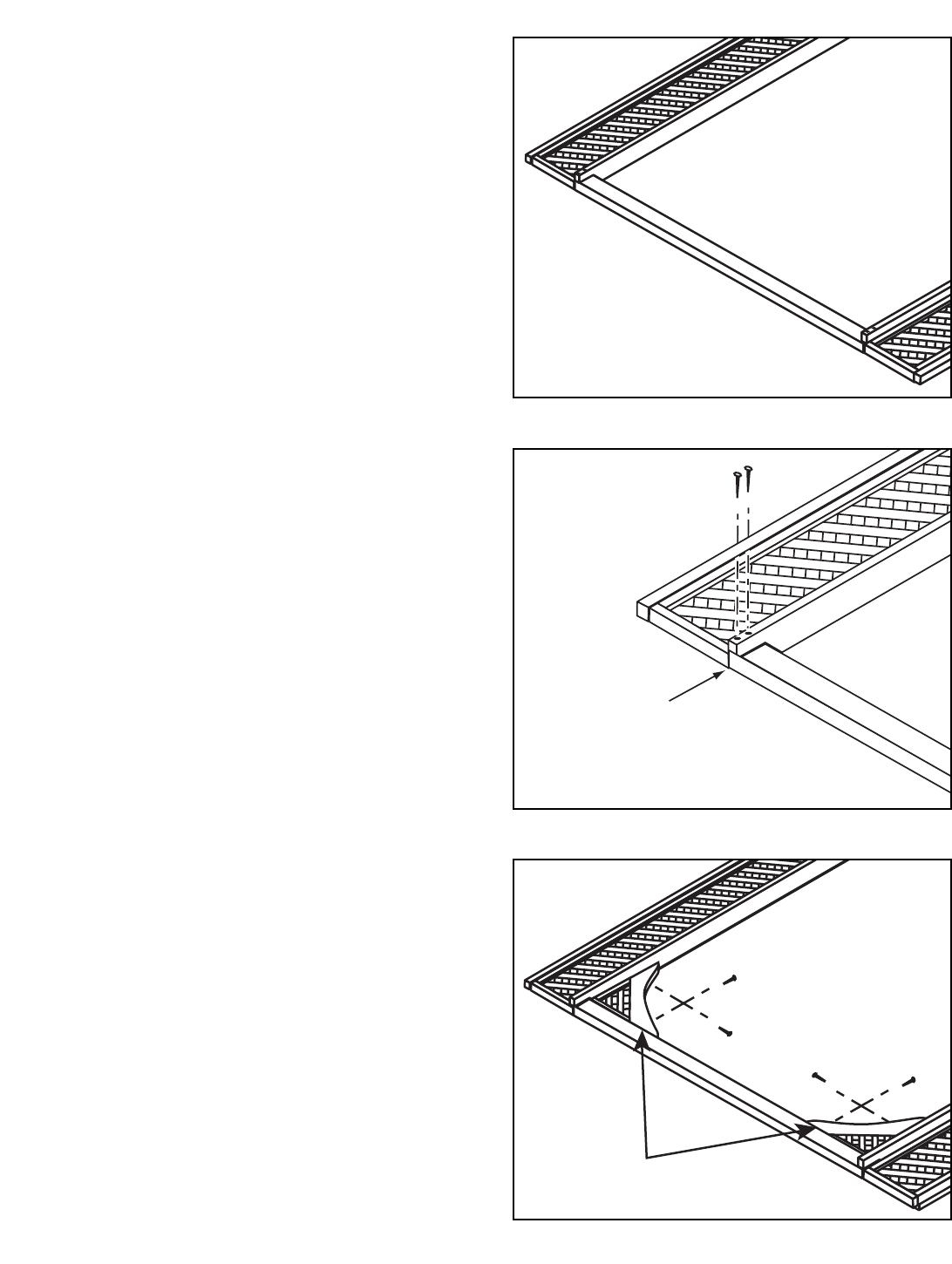

Diagram 5
Diagram 6
Diagram 7
