Snapper COMMERCIAL WALK-BEHIND Lawn Mower User Manual



29

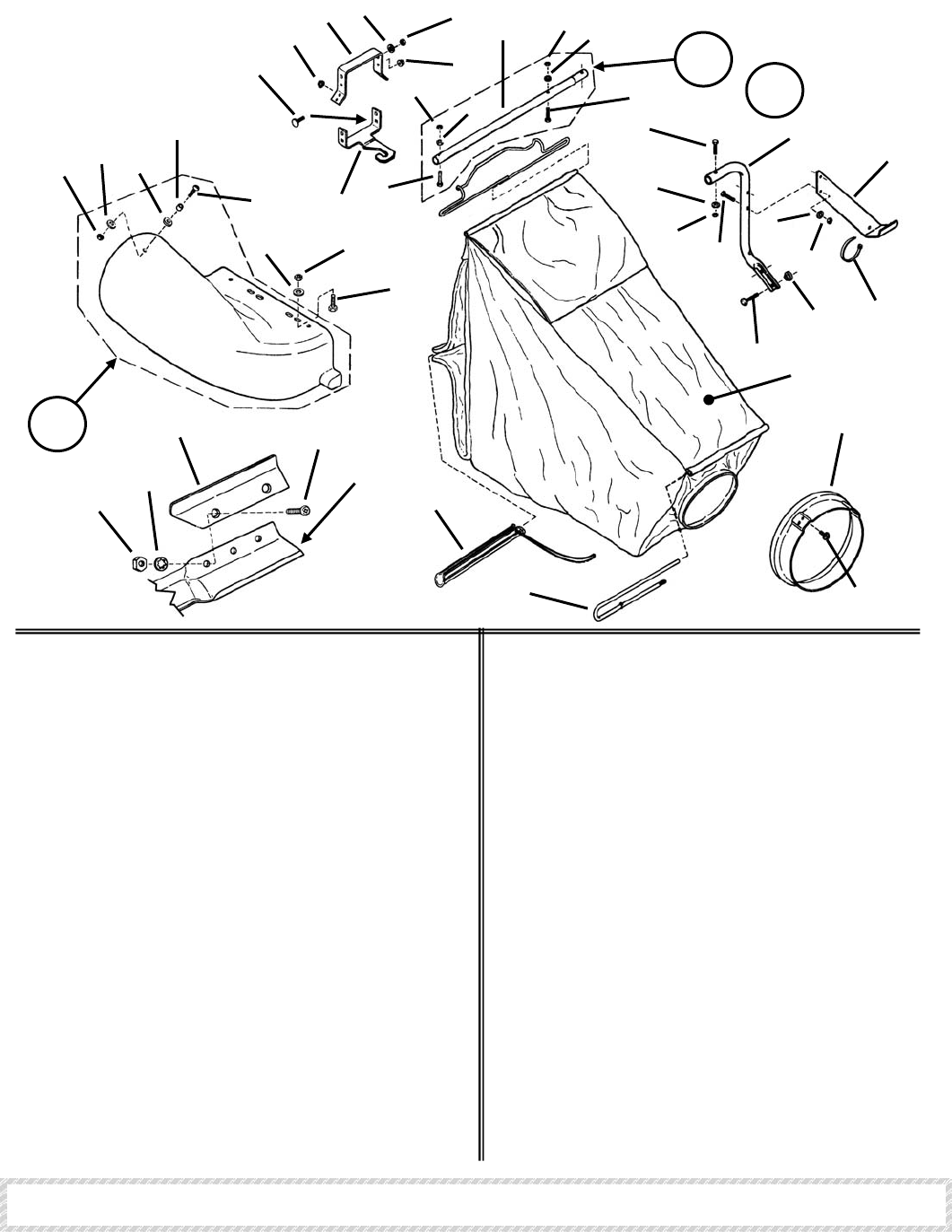

GRASS CATCHER
ITEM PART NO. DESCRIPTION
-- 6-0835 KIT, Grass Catcher (Incl. 1-36)
1 5-1709 ASS’Y., Bag (Incl. 2 thru 13)
2 1-5896 BAG, Grass
3 5-1717 SLIDER, Grass Bag (Incl. rope)
4 1-8959 WIRE, Bag Support, Rear
5 1-7008 ADAPTER, Bag, front
6 2-7670 WIRE, Bag, Front
7 3-8336 ADAPTER, Handle
8 3-8337 LATCH, Chute
9 9-0803 BOLT, 1/4-20 x 5/8” Carr. (2)
10 9-0583 NUT, 1/4-20 Hex Flange (6)
11 9-0074 BOLT, 1/4-20 x 3/4” Carr. (4)
12 9-0155 NUT, 3/8-24 Hex
13 9-0390 WASHER, 3/8” Int. Tooth Lock
14 5-1710 ADAPTER ASS’Y (Incl. 15-19)
15 5-1663 CHUTE ASSEMBLY
16 9-0847 SCREW, 1/4-20 x 3/4” Rd. Hd.
17 1-0916 SPACER
18 1-1763 WASHER, 5/16” Flat (2)
ITEM PART NO. DESCRIPTION
19 9-0372 NUT, 1/4-20 Hex Center Lock
20 5-1711 SUPPORT ASS’y, Bag, Rear
(Includes items 21 thru 24)
21 2-7671 TUBE, Rear Support, Bag
22 9-0529 BOLT, 1/4-28 x 1-1/4” Hex (2)
23 9-0053 WASHER, 1/4” Lock (5)
24 9-0095 NUT, 1/4-28 Hex (7)
25 3-6229 SUPPORT TUBE, Rear Bag
26 3-8335 BRACKET, Support
27 1-5509 CABLE-TIE
28 1-4729 ROLLER
29 9-0959 BOLT, 5/16-18 x 2-1/2”
Carriage
30 9-0552 SCREW, 1/4-28 x 1-3/8” (3)
31 9-0541 SCREW, 1/4-28 x 3/4” Hex (2)
32 9-0598 WASHER, 1/4” Flat (2)
33 9-0228 SCREW, 5/16-24 x 21/32” (4)
34 9-0391 WASHER, 5/16” Int’l. Tooth (4)
35 9-0223 NUT, 5/16-24 Hex (4)
36 3-1724 AIR LIFT (2)
NOTE: This kit will fit models Y30080 & Y30120 Mid-Duty Commercial Walk-Behind mowers. Model Y41120 requires the
inclusion of 5-1739, Extension Assembly, in addition to kit 6-0835.
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
24
10
BLADE
35
34
33
36
2
3
6
5
11
17
18
16
24
32
31
8
7
19
18
10
12
13
9
24
26
28
29
27
23
30
25
23
24
30
23
22
21
22
23
24
20
14
1 ASSEMBLY
