ADJUSTMENTS
6.1 PARKING BRAKE ADJUSTMENT
WARNING:
DO NOT operate the mower if the parking brake is
not operable. Possible severe injury could result.
The parking brake linkage should be adjusted whenever
the parking brake lever is placed in the “ENGAGE”
position and the parking brake will not prevent the mower
from moving. If the following procedures do not allow
you to engage the parking brake properly, contact your
Scag dealer for further brake adjustments.
1. Position a floor jack under the rear of the machine.
Raise the machine and support it to prevent it from
falling. Block the caster wheels to prevent the
machine from moving. Remove the drive wheels.
2. With the brake in the engaged position, check the
distance between the lower nut on the brake actuator
rod and the brake actuator lever on the LH side of the
machine. The distance should be 1/8" (See Figure
6-2).
3. If the distance is not at the specified measurement,
loosen the jam nut at the clevis on the top of the
brake actuator rod (See Figure 6-2).
4. Turn the bolt at the bottom of the brake actuator
lever until the 1/8" measurement is achieved and
tighten the jam nut at the clevis on the brake actuator
rod. (See Figure 6-2). If the 1/8" measurement can
not be achieved by adjusting the brake actuator rod,
adjust the brake control rod. Adjust by loosening the
jam nuts at both ends of the brake control rod and
turning the rod until the proper distance is achieved.
(See Figure 6-1)
5. Repeat steps 2-4 on the RH side of the machine.
6. Replace the drive wheels and test the brake.

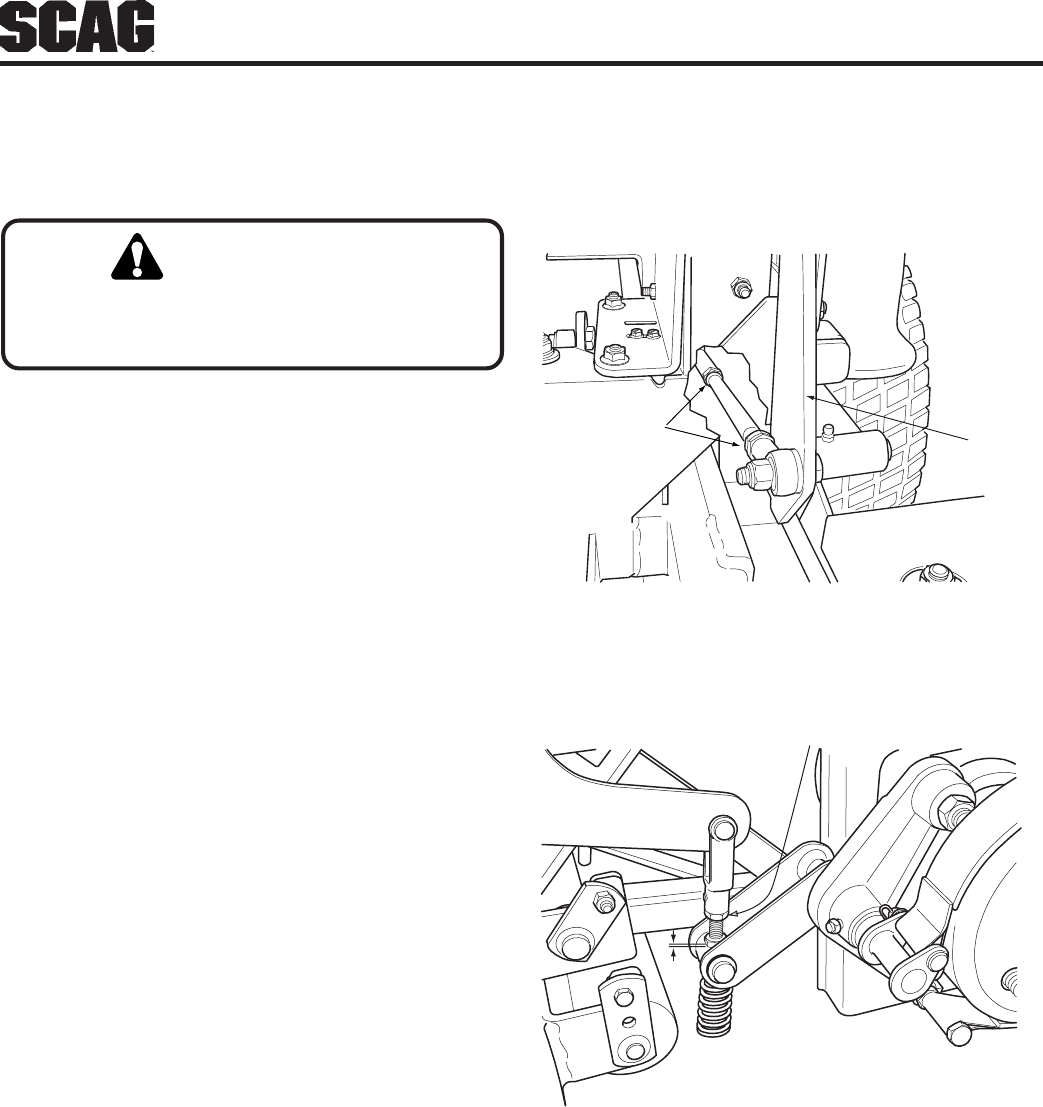

Figure 6-2. Brake Rod Adjustment
Figure 6-1. Brake Adjustment
LOOSEN HERE
1/8"
390S0153-1
-NOTE-
If this procedure does not achieve proper brake
adjustment, please contact your authorized Scag
dealer.
LOOSEN
HERE
STC2002BA
BRAKE
HANDLE
