ASSEMBLY
1594 01/11 Assembly Section 3-2
© 2011 Alamo Group Inc.
ASSEMBLY
General Information
Mounting Kit can be installed using tools ordinarily available, including a hoist capable of lifting and supporting
the loader for initial mounting, standard and metric wrenches, torque wrench, and hydraulic oil.
Tractor-supplied hydraulic power is required for loader mounting and operation.
The grille guard (4) may be installed with or without the loader. Refer to Instructions on Section 3-4.
Check tractor tire pressure. Refer to tractor operator’s manual for recommended pressures. With tractor on a
firm level surface, compare tractor rear axle height from left to right; measuring from axle center to ground.
Adjust air pressure in rear tires until axle height measures same for both sides.
NOTE: If rear axle on tractor is not level from side to side, cutting edge on loader bucket or similar loader-
mounted attachments will not sit flat on ground.
Tractor steering stops may have to be adjusted to provide clearance between front tire and loader on full left
and right turn with front axle fully oscillated. Be sure lift cylinders are fully retracted when checking tire
clearances. Refer to tractor operator’s manual for steering stop adjustment.
NOTE: Reference to left and right used in these instructions refer to position when seated in the operating
position on tractor.

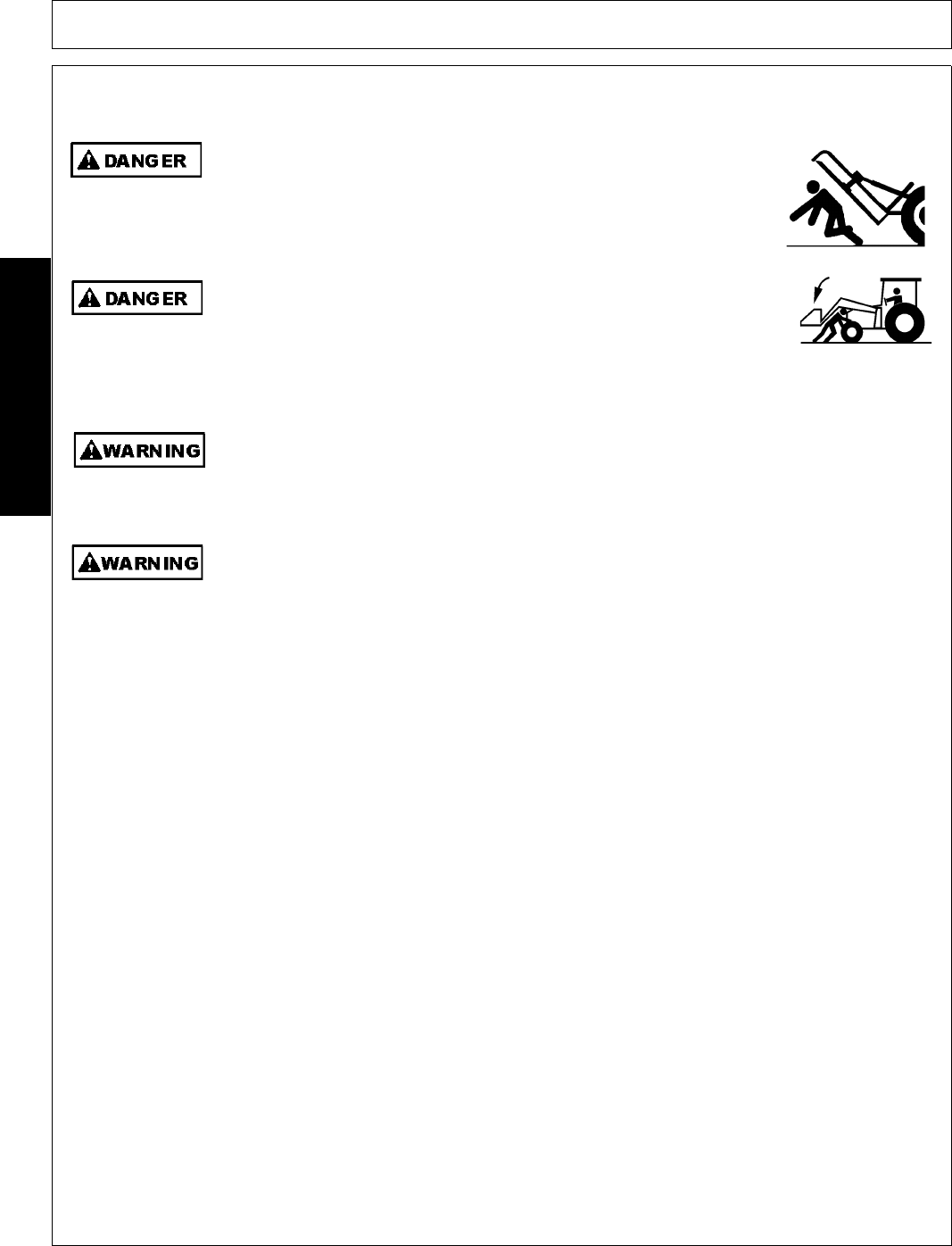

Never work under the Implement, the framework, or any lifted
component unless the Implement is securely supported or blocked up
to prevent sudden or inadvertent falling which could cause serious
injury or even death.
(SG-14)
Never allow anyone to get under the loader or attachment or to reach
through the loader lift arms when raised. Serious injury could result from
crushing or pinching by the loader or attachment.
(SL-06)
Do not modify or alter this Implement. Do not permit anyone to modify or alter this
Implement, any of its components or any Implement function.
(SG-8)
Never interfere with factory-set hydraulic calibrations. Any change in calibration could
cause a failure of the equipment and may result in injury.
(SBH-13)
