The hardware bag contains the following items:
(1) Handle Bracket
(1) Knob
(1) .250" Lock Washer

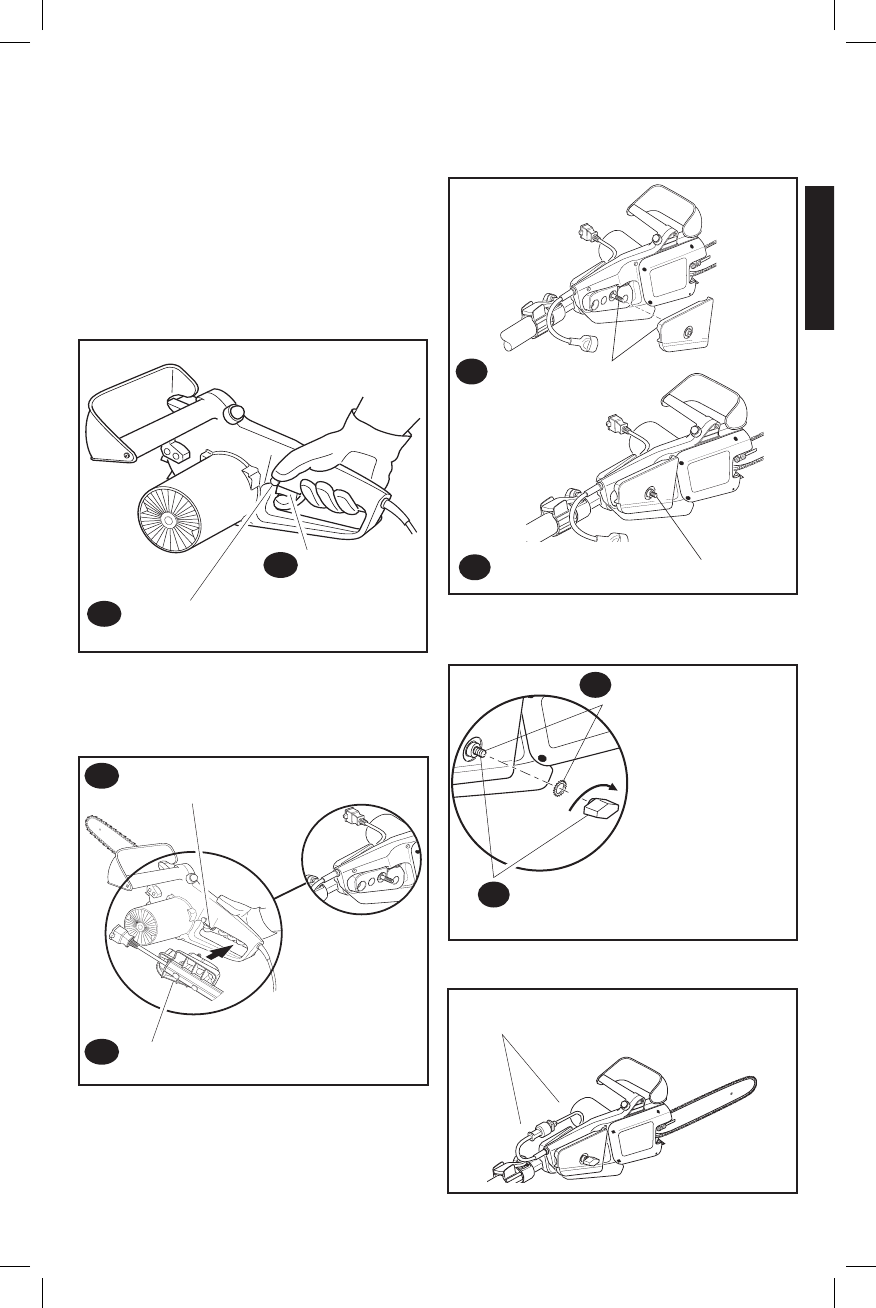

Step – Squeeze Trigger
Push in and hold trigger lockout
button.
Squeeze and hold
trigger.
1A
1B
Step – Insert Pole Bracket into
Saw
Insert pole bracket into saw. Note: Pole
Bracket holds trigger in “ON” position.
Continue to hold trigger while
completing step 2B.
2A
2B
Step – Attach Handle Bracket
to Pole Bracket
Slide handle bracket onto
clamping bolt.
Clamping bolt should extend through
handle bracket.
3A
3B
Step – Secure Handle Bracket
to Pole Bracket
Place lockwasher onto
clamping bolt.
Thread knob onto clamping bolt. Note:
After knob makes contact with handle
bracket, tighten 1
1
/
2
to 2 more turns.
T
I
G
H
T
E
N
4A
4B
POLE SAW INFORMATION
POLE SAW ASSEMBLY
RPS2N1
Step – Connect to Power Cord
Plug saw power cord into receptacle cord at end
of inner pole.
