*10 HP Yamaha OHV engine
*Low oil sensor
*6.5 gallon plastic fuel tank
*Receptacles on control panel
*CordKeeper™
*Portability Kit
NOTE: Total power drawn from all receptacles must not
exceed the nameplate ratings.

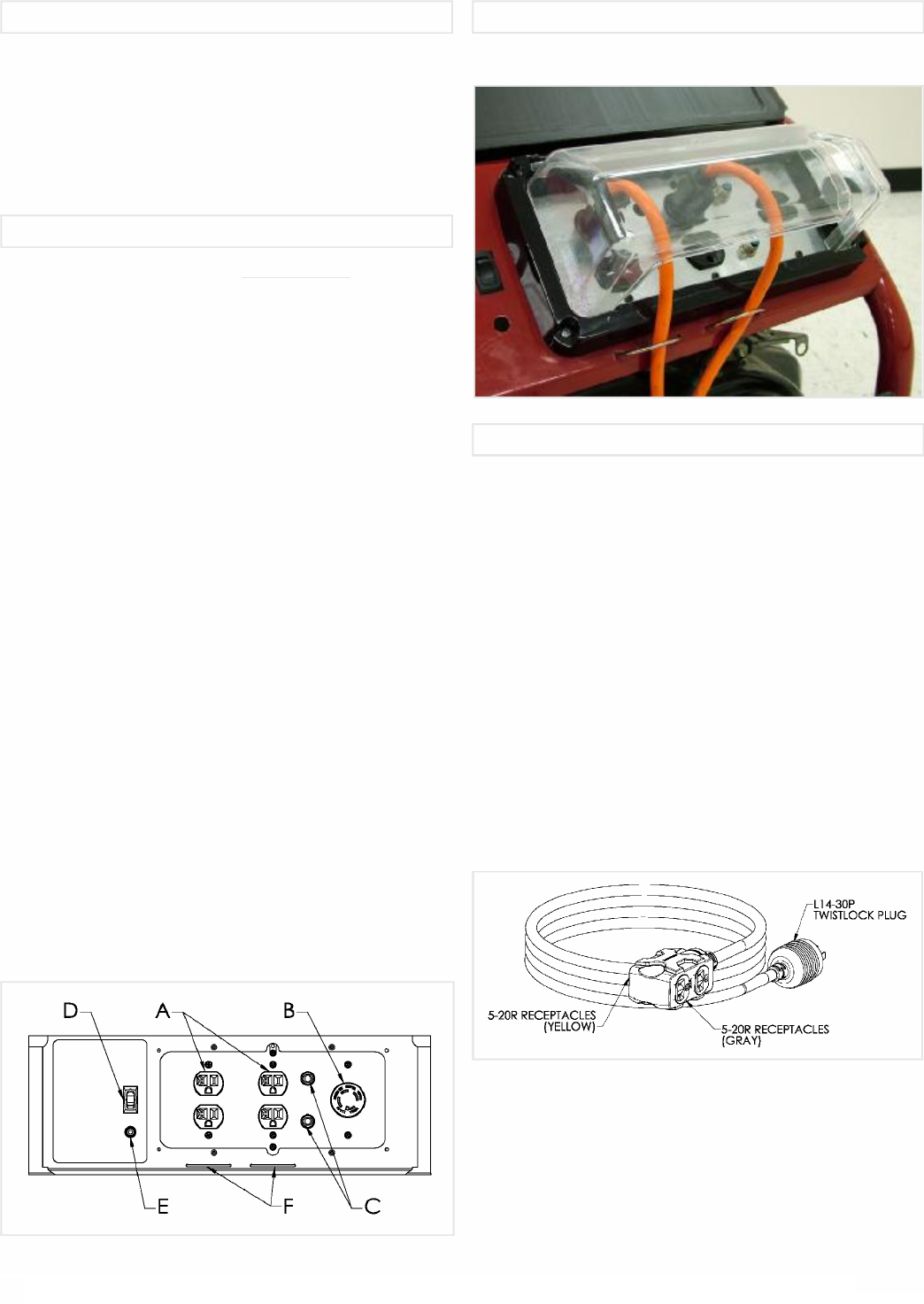

A.120 V, 20 Ampere Duplex Receptacle
20 amps of current may be drawn from either of the duplex
receptacles. However, total power drawn must be kept within
nameplate ratings. These receptacles may be used along with
the twistlock receptacle provided the generator is not
overloaded.
B.120/240 V, 30 Ampere Twistlock Receptacle
Maximum full load current may be drawn from the 120/240
volt receptacle, provided it is the only receptacle used. Total
current must be limited to the nameplate rating. If the 120/240
volt receptacle is used along with the 120 volt receptacle, the
total load drawn must not exceed the nameplate ratings.
C.Circuit Protectors
The receptacles are protected by an AC circuit protector. If
the generator is overloaded or an external short circuit occurs,
the circuit protector will trip. If this occurs, disconnect all
electrical loads and try to determine the cause of the problem
before attempting to use the generator again. If overloading
causes the circuit protector to trip, reduce the load. NOTE:
Continuous tripping of the circuit protector may cause
damage to generator or equipment. The circuit protector
may be reset by pushing the button of the protector.
D.Engine On/Off Switch
E.Oil Warning Light
F.CordKeeper™ Restraint
The CordKeeper™ restraint is a unique feature used to
prevent plugs from being pulled out of the receptacles.
Instructions are included with the receptacle cover kit.
Your generator is supplied with a 25 foot 12 GA SJTW
4-conductor 105ºC power cord set. This cord is equipped with
an L14-30P twistlock Plug, on one end, which will plug directly
into the mating twistlock receptacle on the control panel of your
generator. The opposite end comes equipped with a special 4
circuit connector comprised of four 5-20R receptacles. These
may be used to power individual loads. NOTE: For 120 volt
use only. Make sure the loads do not exceed the 20 amp
rating of the Power Cord Set. Circuit breaker protection is
provided for on the control panel of your generator.
You will notice that the 4-circuit connector is color coded
with gray and yellow receptacles. When several loads are
powered at the same time, it is best to keep equal loads
supplied to each separately colored half, if possible. The gray
half and the yellow half of the connector are each capable of
sustaining 20 amps of current provided your generator is
capable of supplying 4800 watts of power. Check nameplate
ratings for total wattage capability of the generator.
2
English
CONTROL PANEL
MAJOR GENERATOR FEATURES
CORD SET
RECEPTACLE COVER INSTALLATION
