A. Control Panel (Endbell)
NOTE: Total power drawn from all r
eceptacles must not exceed
the nameplate ratings.
B. 120 V, 20 Ampere Receptacle
20 amps of current may be drawn from the receptacle. However,
total power drawn must be kept within nameplate ratings.
C. AC Circuit Protectors
The receptacles are protected by an AC circuit protector. If the
generator is overloaded or an external short circuit occurs, the circuit
protector will trip. If this occurs, disconnect all electrical loads and
try to determine the cause of the problem before attempting to use the
generator again. If overloading causes the circuit protector to trip,
reduce the load. NOTE: Continuous tripping of the circuit
protector may cause damage to generator or equipment. The
circuit protector may be reset by pushing the button of the protector.
D. Engine On/Off Switch
E. 6.5 HP OHV Engine
F. Recoil Starter
G. Engine Choke Lever
H. Oil Filler Cap
I. Oil Drain Plug
J. .71 Gallon Metal Fuel Tank
K. Fuel Tank Cap
L. Fuel Shut-Off
7
English Customer Hotline 1-800-445-1805

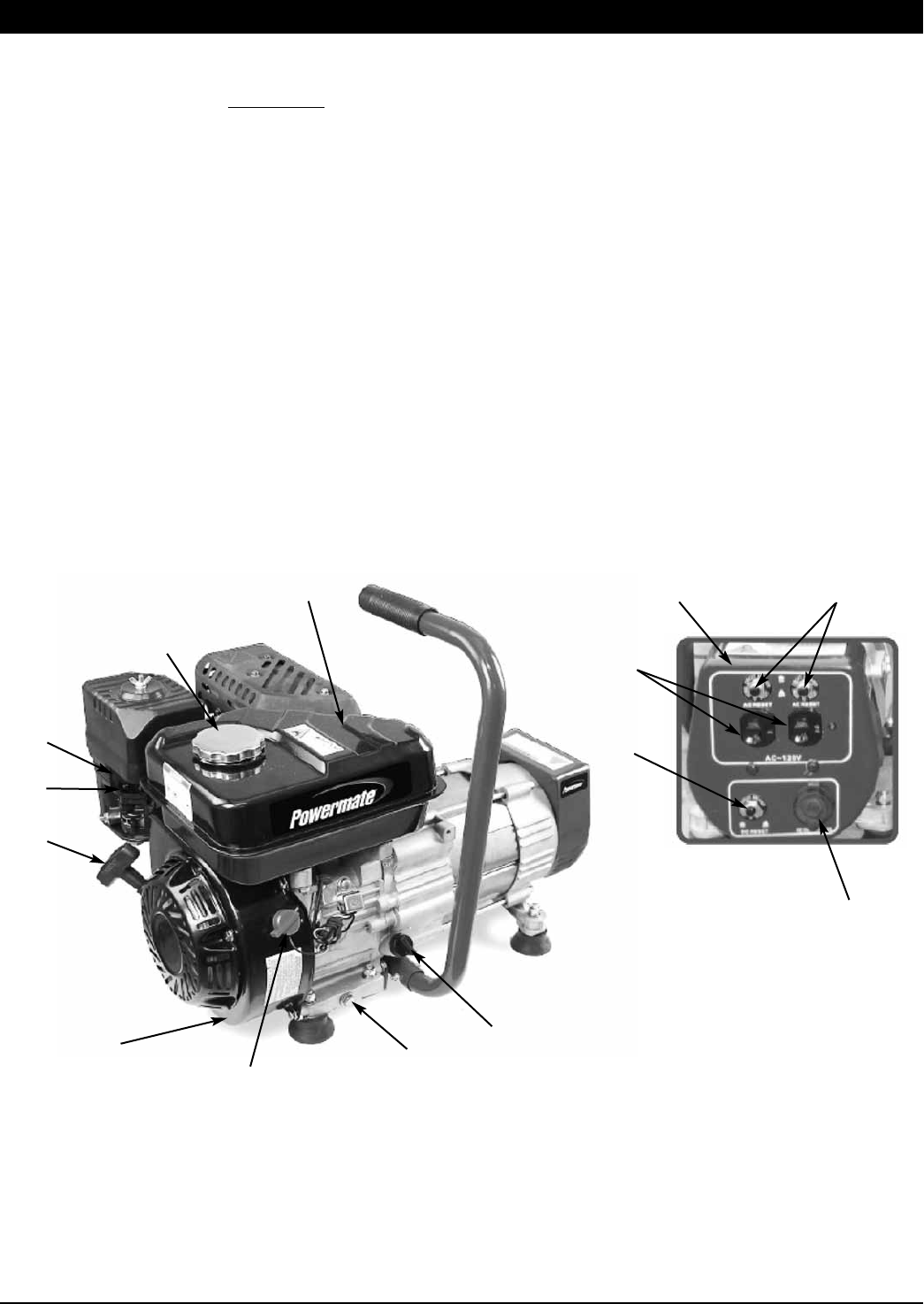

GENERATOR FEATURES
