Installation / Initial Set-Up
14
Please read your owner's manual before operating, if you do not have
a manual or have questions, call customer service at 1-800-270-0810
GROUNDING POST
N
EMA
L14-30R
NEMA
5-20
R
Duplex
NEMA
5-15
R
FIG02679
that have been chosen as critical to operate during a power outage.
The generator cannot power your entire home -- you must work with the
installing electrician to determine which devices/appliances you wish to
power during an outage. The electrician can help you determine which
circuits and devices can be powered simultaneously without overloading the
generator.
(See the previous section of this manual entitled “Power Load Planning &
Management” for more information on load application and selection.)
Using as a
Portable Power
Source

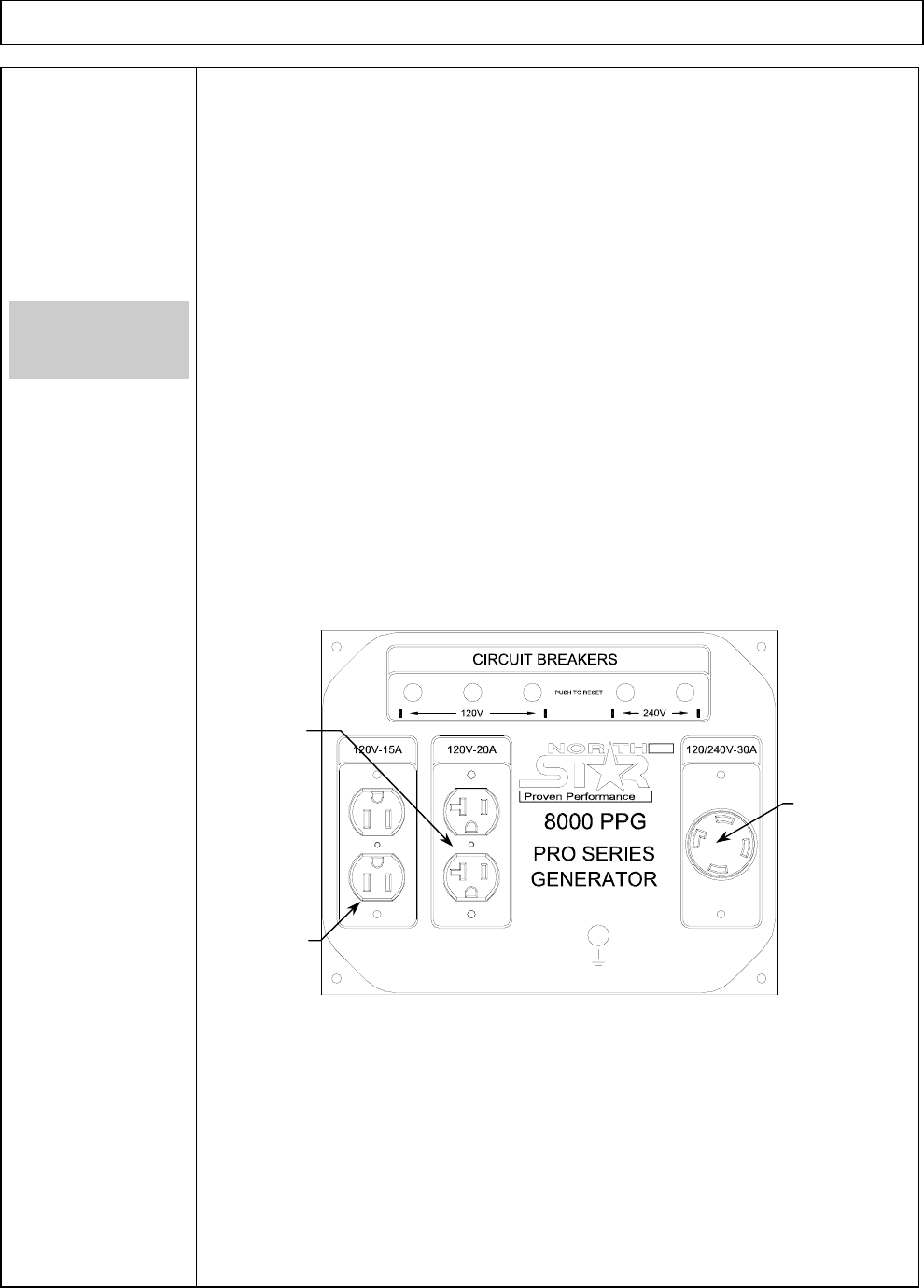

When using the generator as a portable power source, you can plug
electric devices and appliances directly into the generator’s electrical
outlets.
There are three different kinds of electrical outlets on the generator:
1. One 120/240 Volt, 30 Amp locking receptacle (NEMA L14-30R
locking receptacle compatible with L14-30P mating plug).
2. One 120 Volt, 20 Amp duplex straight-blade receptacle (NEMA 5-
20R duplex receptacle compatible with NEMA 5-20P or 5-15P mating
plugs).
3. One 120 Volt, 15 Amp duplex straight-blade receptacle (NEMA 5-
15R receptacle compatible with NEMA 5-15P mating plug)
(See more technical detail about these receptacles and their associated
circuit breakers in the “Machine Component Identification” section of this
manual.)
♦ Make sure you plug each electrical device/appliance into the correct
generator outlet based on the device’s plug configuration and
voltage/amperage rating. Never exceed the amperage rating of an outlet.
