Assembly Instructions
38
Closely inspect all log splitter components.
If you have missing components, contact Customer Service at 1-800-270-0810.
If you have damaged components, contact the Freight Company that delivered the unit and file a claim.
CAUTION! Heavy lifting required. Some of the components in these assembly instructions are heavy and cannot
be lifted by one person safely. Please plan on assembling this product when another person can be available to help out.
Tools needed: Adjustable wrench, 9/16” Wrench, Torque Wrench, Soft Faced Mallet, Flat Blade Screw Driver

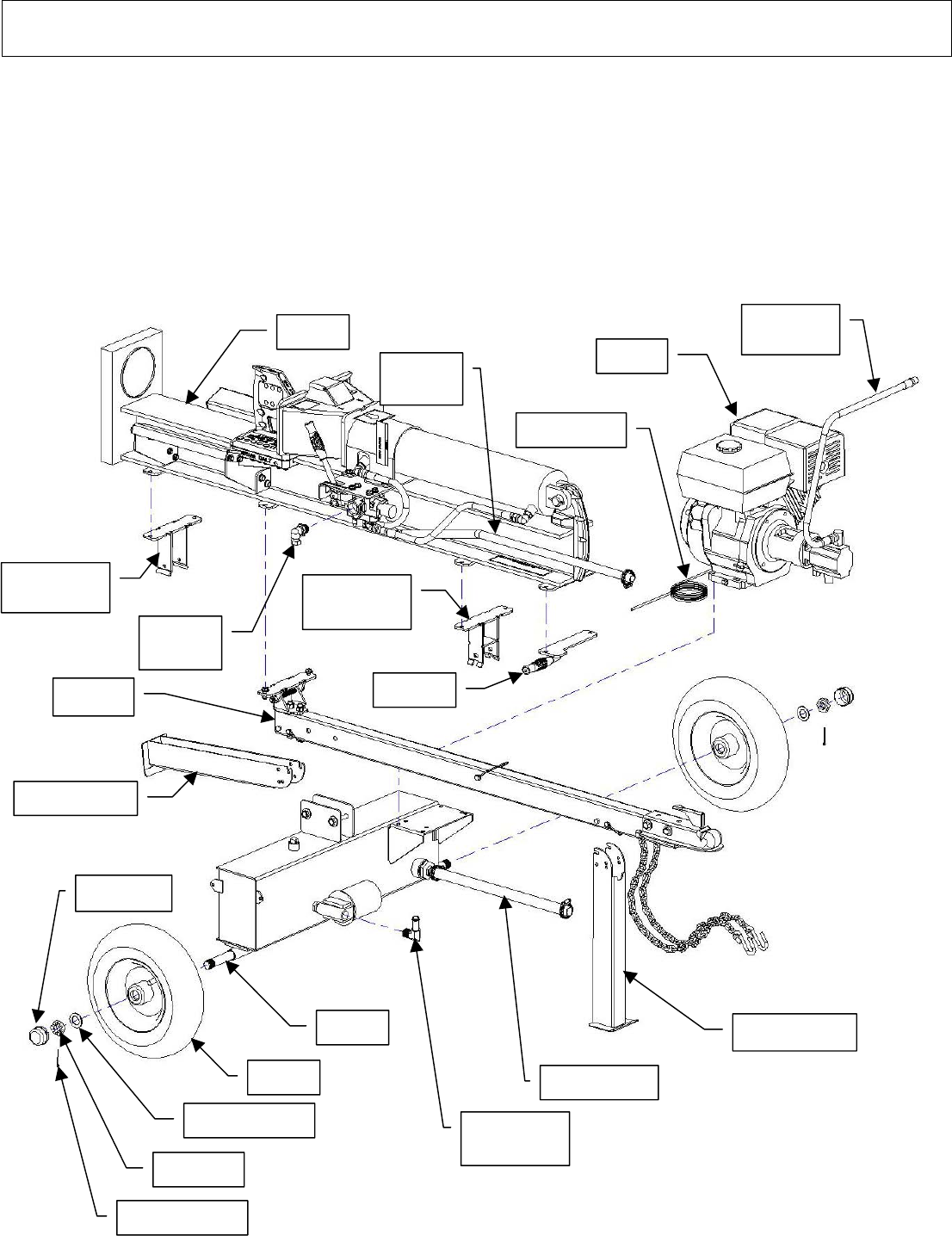

Idle Control
E
ngin
e
Hydraulic
Hose
Handle
Horizontal
Beam Loc
k
Swivel
Fitting
Beam
Retur
n
Line
Vertical
Beam Loc
k
Towbar
Ou
t
rigger Leg
Axle
Wheel
Wheel Washer
Axle Nut
Cotter Pin
Dust Cap
Suction Hose
Return
Line Fitting
Outrigger Leg
