UV Bulb
Turn to remove
Top Plate
Light fittings
Bottom plate
mounts into
lower slot in body
Top plate
mounts into
top slot in body
Fan cable plugs into 2 pin
socket on underside of top plate
Power cable
plugs into Control Box
Timer cable
plugs into
Control Box
U.V. cable plugs into
3 pin socket on
underside of top plate
Control Box
Heater cable plugs into 2 pin
socket on underside of top plate

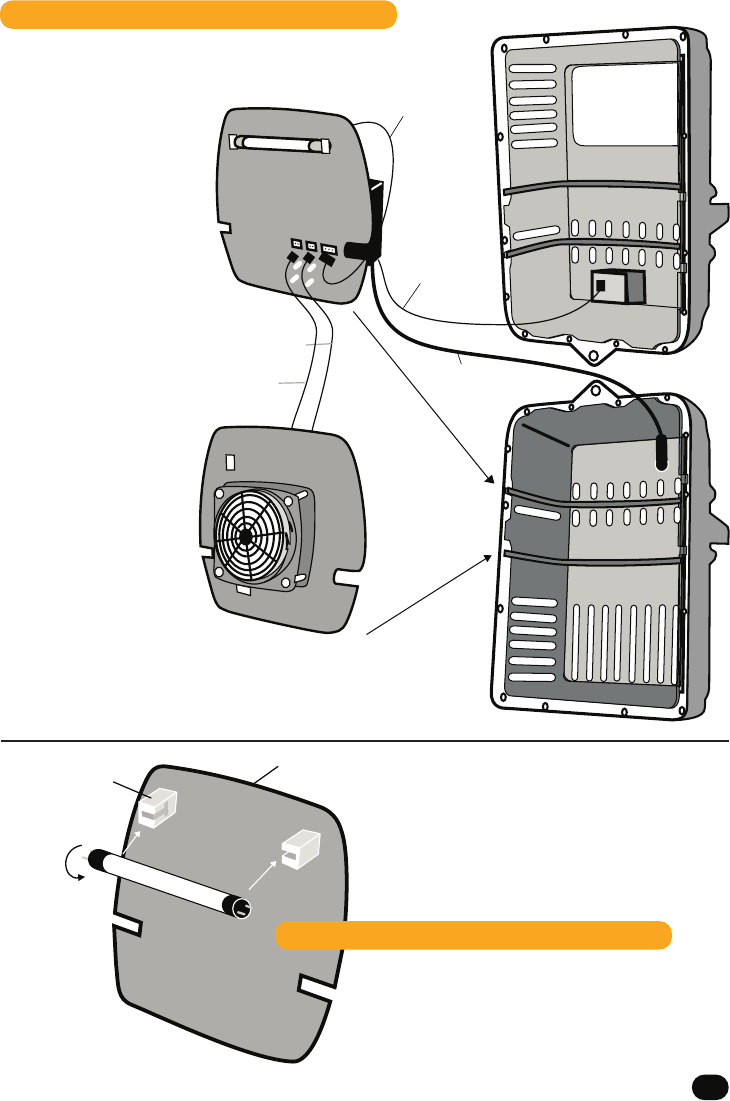

FIG. 8.2 Replacement of U.V. bulb
FIG. 8.1 Opening the PREMIER Trap
