Page 5For replacement parts, please call 1-800-444-3353.
SKUs
91839, 91840
& 92199
Hex Head Nut (17) is attached to Hex Head Bolt (16)
Assembly (continued)
Connecting the Rail Assembly (2) to the Oil Tank Assembly (10B)
1. Insert the Front Leg Assembly (11) into the bracket on the Oil Tank Assembly (10B).
Insert the remaining Hex Head Bolt (16) through the hole in the middle of the bracket of
the Oil Tank Assembly (10B). Secure it with a Hex Head Nut (17). Refer to the Hex
Head Nut (17) attached to the Hex Head Bolt (16) at the top of the Front Leg Assembly
(11) in FIGURE 1 below. Note: When travelling, remove the Push Pin (26) and Hair
Pin Clip (29) and lift the Front Leg Assembly up so that it is parallel to the Rail Assem-
bly (2). Then, replace the Push Pin (26) and Hair Pin Clip (29) into the Horizontal
Transport Hole shown just above the Oil Plug (37), in FIGURES 1 and 2.
2. To connect the Rail Assembly (2) to the Oil Tank Assembly (10B), insert a Hex Head
Bolt (16) into the middle hole of the “L” shaped bracket on the Oil Tank Assembly
(10B). Secure it with a Hex Head Nut (17). Refer to the Hex Head Nut (17) attached to
the Hex Head Bolt (16) just above the tire in FIGURE 1 below. Insert the Push Pin (26)
through the hole, as shown in FIGURE 3.
3. In FIGURES 1 and 2, the Rail Assembly (2) is shown in Horizontal mode for operation
and travel (as mentioned above, the Front Leg Assembly (11) must be secured up in
the horizontal position when travelling). For vertical operation see page 6.

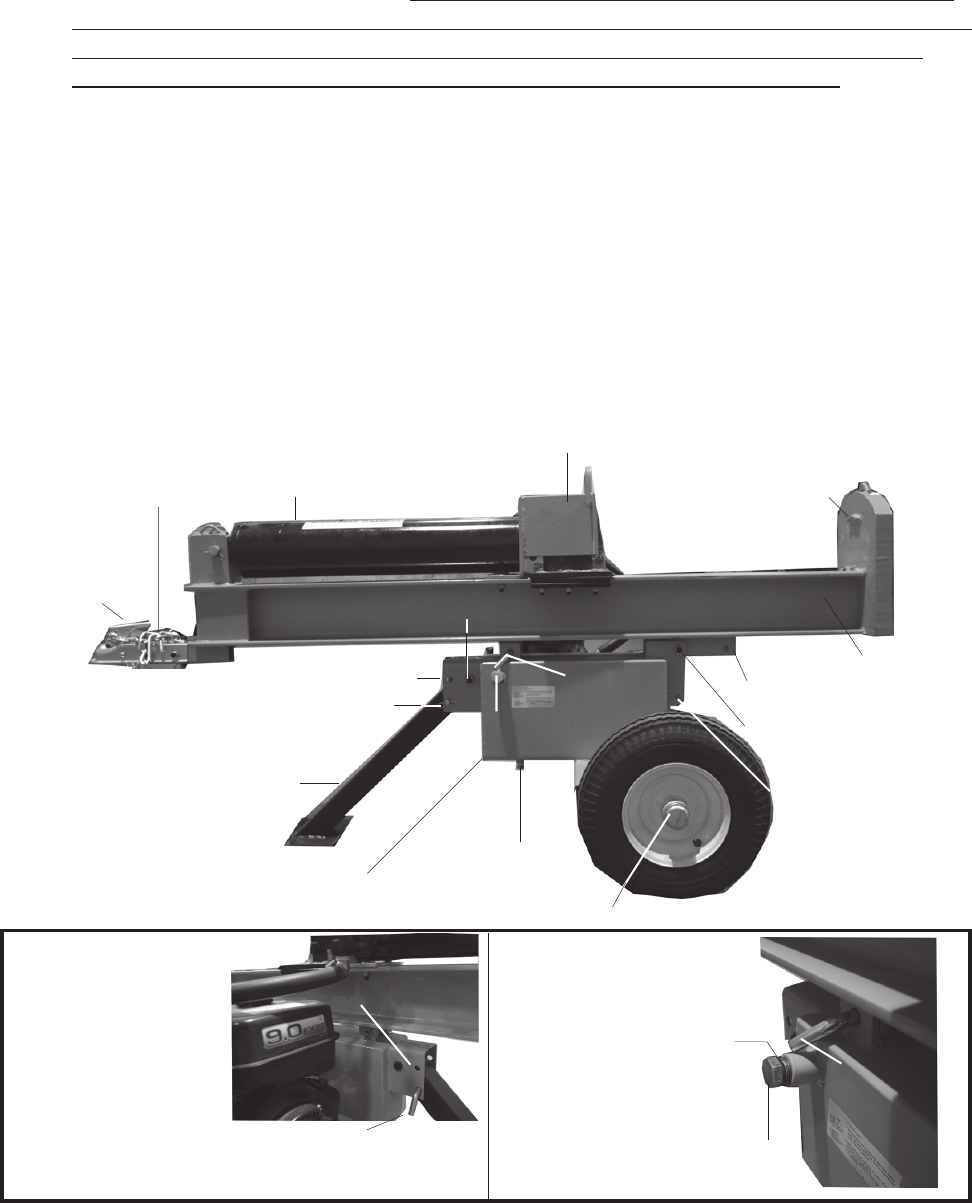

Rail Assembly (2)
Oil Tank (10B)
Oil Plug (37)
with air inlet hole
Wheel Cap (61)
FIGURE 1
Safety Chain
with Hook (4)
Hitch Coupler (9)
Front Leg Assembly (11)
Oil Removal Plug
Push Pin (26) and
Hair Pin Clip (29
)
Horizontal transport hole
Place Log Here
Cylinder (1)
Hex Head Nut (17) is attached
to Hex Head Bolt (16)
Vertical position
locking hole
FIGURE 2
FIGURE 3
Push Pin (26)
Oil Plug (37)
with air inlet ho
le
Close-up of Push Pin (26) securing the
Front Leg Assembly (11) to the bracket
on the Oil Tank Assembly (10B).
Second Push Pin (26) secures
Rail Assembly (2), and is removed
for vertical log splitting.
Horizontal transport hole
Slide Assembly (3)
Air Inlet Hole
Base
Vertical Position Hole
Push Pin (26)
