OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Tool Set Up
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn the Power Switch of the
tool off and remove the
batteries before adjusting tool
or installing accessories.

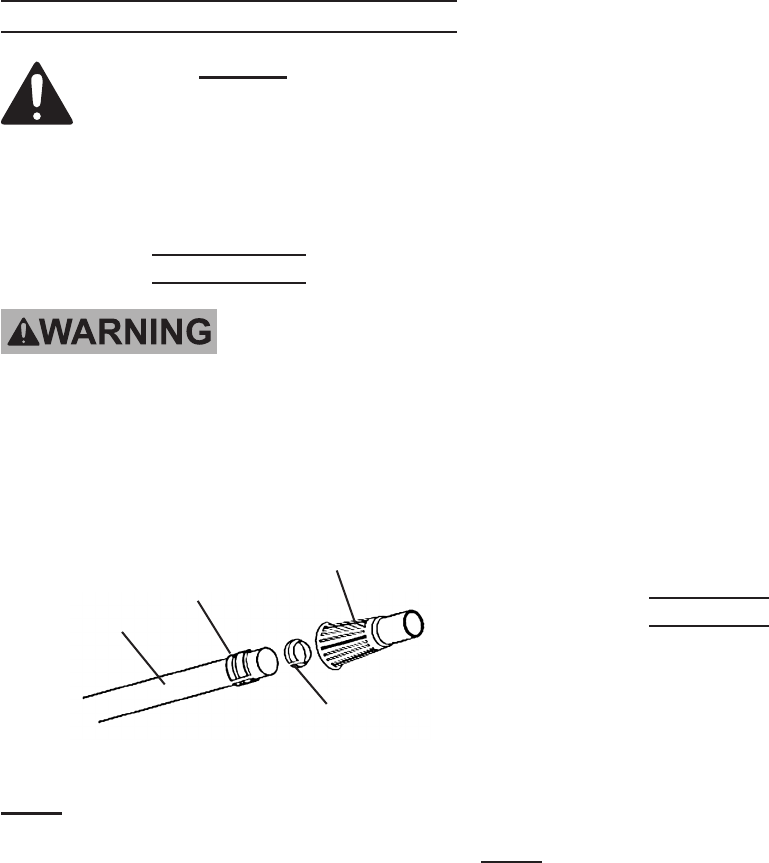

Figure 2
Lock Nut (20)
Tapered Bushing (19)
Threaded Insert (24)
Upper Leg (15)
Note: When adjusting the length of the
Metal Detector, be careful to keep
the plastic Tapered Bushing (19) in
place with the smaller end toward the
smaller end of the Lock Nut (20).
To attach the two legs, slide the 1.
Threaded Insert (24) over the end
of the Upper Leg (15), making sure
that the tabs inside the Insert lock
into the cut-outs at the end of the
leg. Insert the tapered end of the
Tapered Bushing (19) into the Lock
Nut (20) and lightly thread the Nut
over the Insert (24). Slide the Lower
Leg (18) into the Lock Nut. To take
the slack off the cord, rotate the
Lower Leg, enabling the cord to wind
around the two Legs. Rotate the Nut
counterclockwise to lock the Legs.
To adjust the length of the Legs, turn 2.
the Lock Nut in a clockwise direction,
slide the Lower Leg to the desired
extension length and turn the Nut
counterclockwise to secure the Legs
together.
To adjust the angle of the Search 3.
Coil, loosen the Coil Pivot (21) and
Knob Bolt (22) and tilt it. Position the
Search Coil so that it is parallel to
the ground when holding the unit by
the Handle with your arm in the Arm
Support (13).
If needed, re-adjust the length of the 4.
Metal Detector after adjusting the
position of the Search Coil.
Batteries
Make sure the On/Off/Volume control 1.
is set to OFF. Slide the Battery Cover
(26) off of the back of the Control
Box and insert six AA batteries (sold
separately), aligning polarities as
indicated. Replace the Battery Cover.
Note: Use only fresh batteries of the
required size and type. Do not mix
old and new batteries, different types
(standard, alkaline, or rechargeable),
or rechargeable batteries of different
capacities.
Always remove old or weak batteries.
Batteries can leak chemicals that can
destroy electric parts.
If you do not plan to use the detector
for a week or more, remove the
batteries.
