7

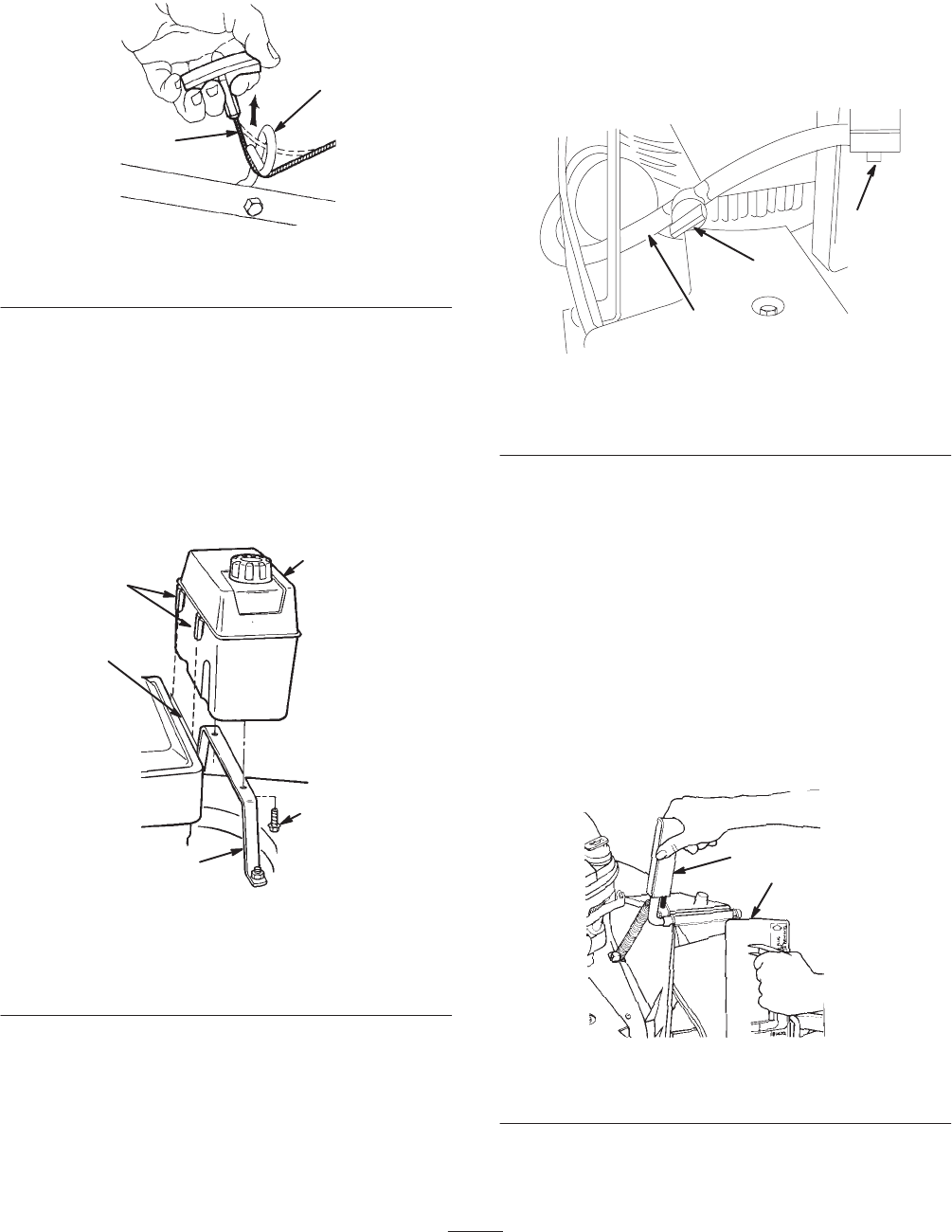

Installing the Starter Rope
Pull the starter rope through the rope guide on the handle
(Fig. 2).
m–210
2
1
Figure 2
1. Starter rope 2. Rope guide
Note: To make the rope easier to install, squeeze the
control bar on the handle.
Installing the Fuel Tank and the
Fuel Line
1. Start the two self-tapping screws into the bottom of the
fuel tank and then remove the screws (Fig. 3).
530
3
4
5
1
2
Figure 3
1. Tank base
2. Fuel tank bracket
3. Plastic clips
4. Fuel tank
5. Self-tapping screw (2)
2. Hook the plastic clips on the front of the fuel tank onto
the fuel tank bracket (Fig. 3).
3. Secure the fuel tank to the tank base with the two
self-tapping screws (Fig. 3). Do not overtighten the
screws.
4. Remove the red cap from the end of the fuel line and
from the end of the elbow fitting on the fuel tank
(Fig. 4).
m-7283
1
2
3
Figure 4
1. Fuel line
2. Elbow fitting
3. Fuel valve
5. Slide the end of the fuel line onto the elbow fitting
(Fig. 4).
6. Secure the fuel line in place with the fuel line clamp
(Fig. 4).
Installing the Discharge Tunnel
Plug
1. Open the discharge door by pulling forward on the
handle and moving it rearward (Fig. 5). Hold the
discharge door handle to prevent the spring-loaded
door from closing while you insert the plug.
m-1914
2
1
Figure 5
1. Discharge door handle 2. Plug rotated clockwise
