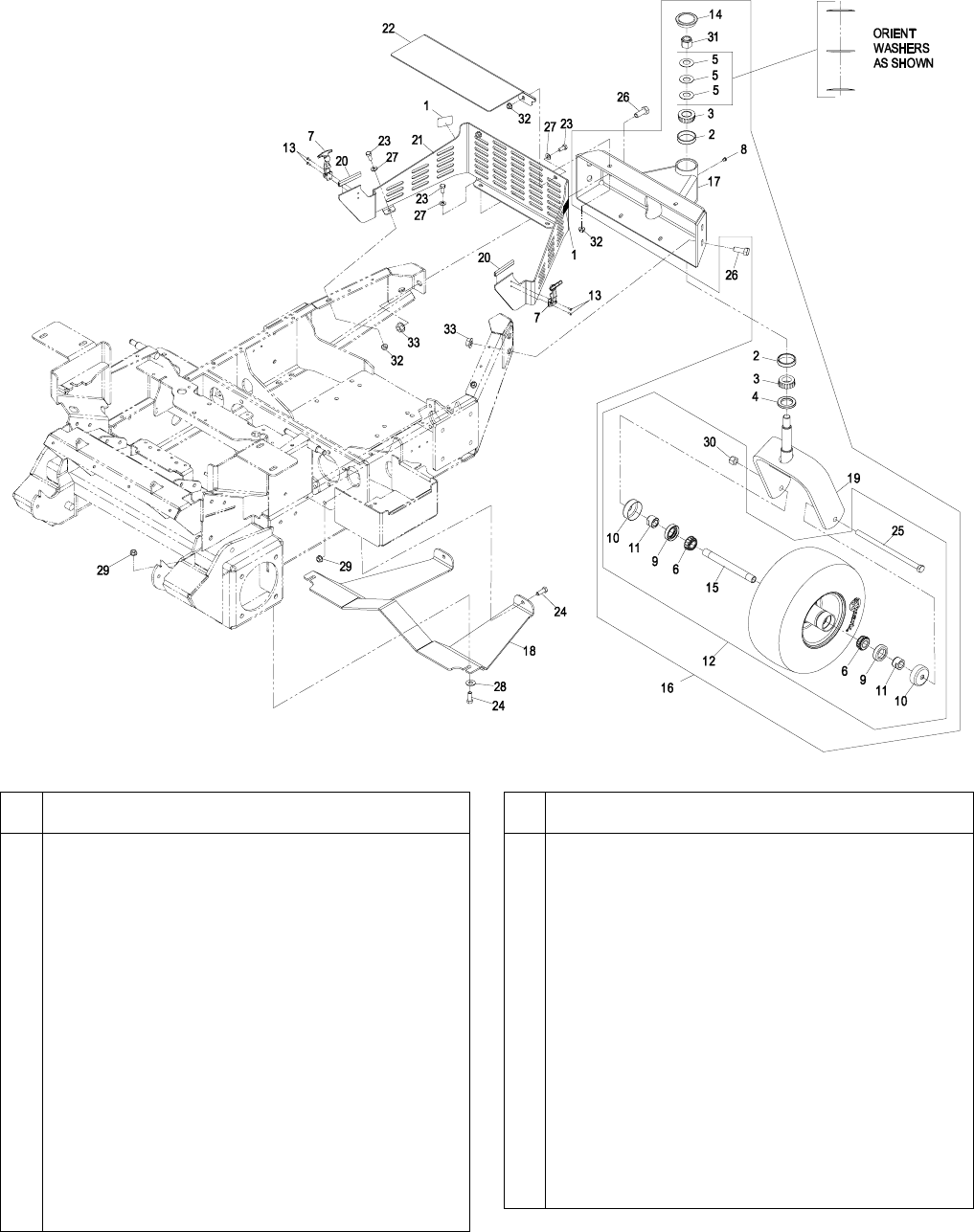

REAR FRAME GROUP 23HP
7
Item
Part No.
Description
Qty.
1 1-513746 Decal, Muffler.........................................2
2 1-543508 Cup, Bearing Tapered Roller..................2
3 1-543509 Cone, Bearing Tapered Roller................2
4 1-543511 Seal, Grease..........................................1
5 1-633508 Washer, Spring Disc ..............................3
6 1-633585 Bearing, Cone Tapered Roller................2
7 1-643188 Latch......................................................2
8 1-811010 Plug .......................................................1
9 103-0063 Seal, Double Lip.....................................2
10 103-2768 Guard, Seal............................................2
11 103-3051 Spacer, Nut............................................2
12 103-3799 Asm, Caster Wheel................................1
13 923786 Rivet ......................................................4
14 103-4882 Cap, Grease ..........................................1
15 103-5156 Axle, Caster ...........................................1
16 103-6704 Asm, Single Tailwheel............................1
17 103-6748-03 Wld, Rear Caster Hub............................1
Item
Part No.
Description
Qty.
18 103-9789-03 Guard, Hose ..........................................1
19 103-9868-03 Wld, Caster Fork ...................................1
20 105-7699 Strip, Seal.............................................. 2
21 109-2769 Kit, Rear Guard...................................... 1
22 109-0414-03 Cover, Muffler........................................1
23 322-3 Screw, HH 5/16-18 x 3/4........................ 5
24 323-6 Screw, HH 3/8-16 x 1............................. 4
25 325-39 Screw, HH 1/2-13 x 9 1/2....................... 1
26 325-5 Screw, HH 1/2-13 x 1 1/4....................... 6
27 3256-23 Washer, 5/16 SAE................................. 5
28 3256-4 Washer, 3/8 Std..................................... 2
29 3290-357 Nut, Whizlock 3/8-16 ............................. 4
30 3296-23 Nut, Nyloc 1/2-13................................... 1
31 3296-51 Nut, Nyloc 3/4-10................................... 1
32 32128-20 Nut, Whizlock 5/16-18 ........................... 5
33 32128-49 Nut, Whizlock 1/2-13 ............................. 6
Exmark black touch up spray paint – Gloss black
