Exmark Air-Cooled Lawn Mower User Manual



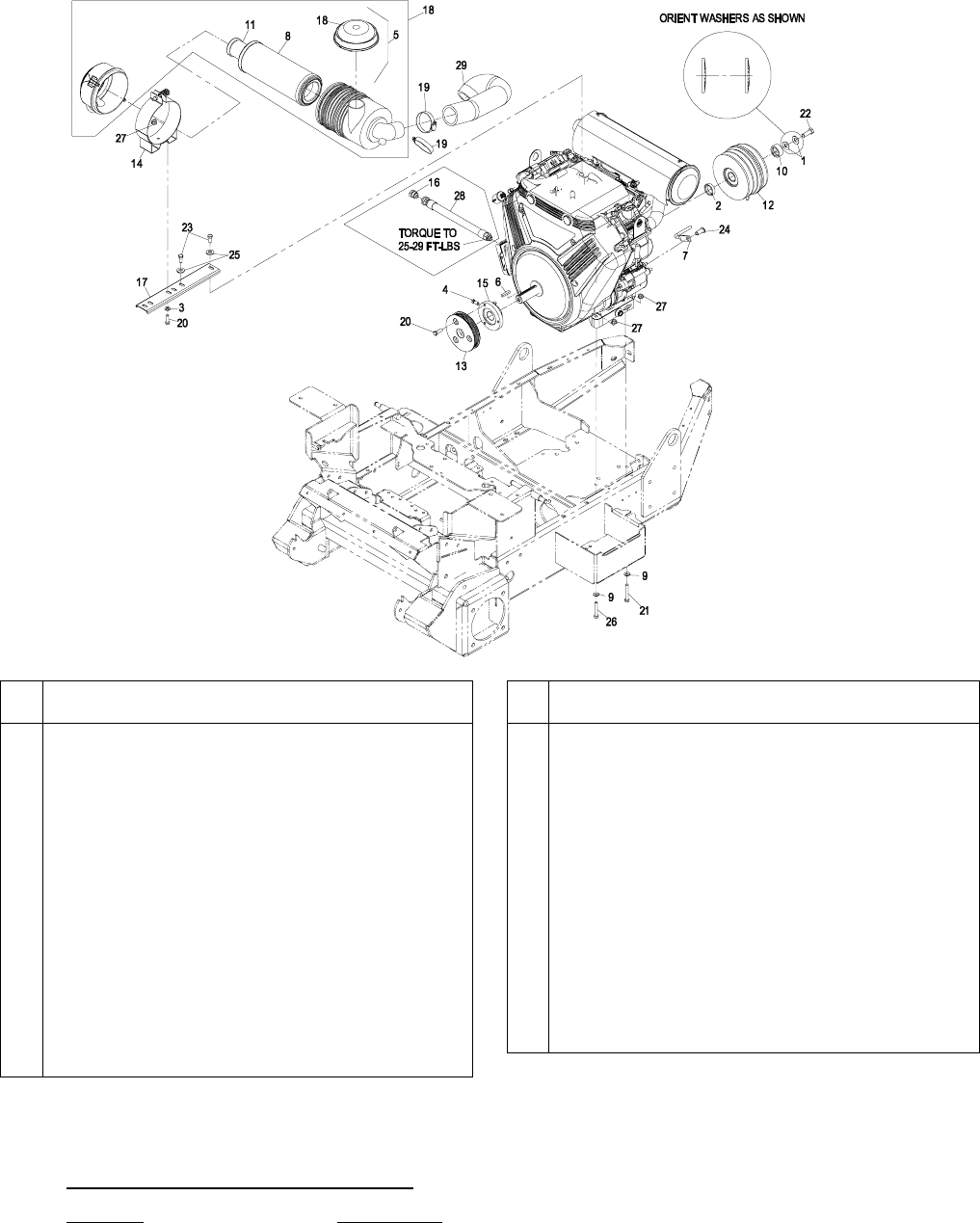

ENGINE GROUP 31HP
14
Item
Part No.
Description
Qty.
1 1-603610 Washer, Spring Disc 7/16 ......................2
2 109-6874 Spacer, XP A/C Clutch Inner..................1
3 3256-23 Washer, 5/16 SAE .................................2
4V 1-803050 Setscrew, 5/16-18 x 3/4 .........................2
5 100-2436 Asm, Hood Air Intake W/Clamp .............1
6 13-2840 Key, Machine 1/4 x 1/4 x 1 1/4...............1
7 109-5584 Anchor, Clutch .......................................1
8 103-1327 Filter, Air ................................................1
9 1-303334 Washer, Spring Disc 5/16 ......................4
10 103-0152 Keeper, Clutch.......................................1
11 103-1326 Filter, Safety Air .....................................1
12 109-6627 Kit, Clutch ..............................................1
13 103-6774 Sheave ..................................................1
14 103-1058 Bracket, Air Filter ...................................1
15 109-5823 Hub, Adapter..........................................1
Item
Part No.
Description
Qty.
16109-1012 Plug, Oil Drain ....................................... 1
17 109-5583-03 Bracket, Air Cleaner............................... 1
18 103-5178 Asm, Canister Air Filter W/Hood............ 1
19 2412-42 Clamp, Hose..........................................2
20V 322-5 Screw, HH 5/16-18 x 1........................... 5
21 322-11 Screw, HH 5/16-18 x 2 1/4..................... 1
22V 3212-5 Screw, HH 7/16-20 x 1 1/4..................... 1
23 48-7710 Screw, HH M8-1.25 x 20mm..................2
24V 3274-105 Screw, Button Head 7/16-14 x 1 ............1
25 98-5975 Washer, Spring Disc 3/8........................ 2
26 322-10 Screw, HH 5/16-18 x 2........................... 3
27 32128-20 Nut, Whizlock 5/16-18 ...........................6
28109-4324 Asm, Hose Oil Drain.............................. 1
29 109-5585 Hose, Air Intake.....................................1
Exmark black touch up spray paint – gloss black.
Use a Teflon Pipe Sealant or equivalent on threads.
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #4, #20, #22 & #24
31HP Briggs & Stratton Replacement Parts List
(
Refer to En
g
ine Owner’s Manual
)
Description
Briggs Part No.
Engine Oil Filter...................................
.
492932
