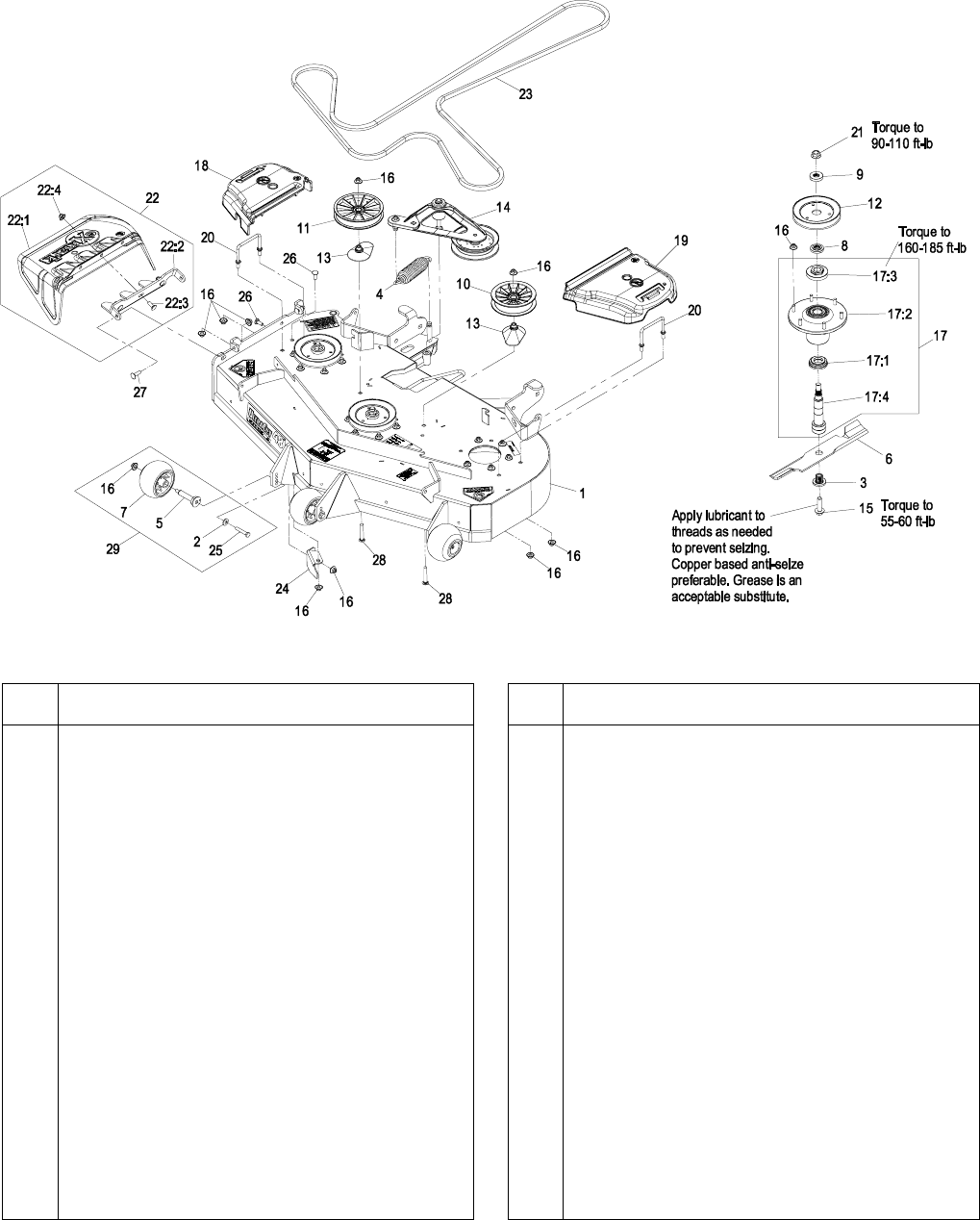

48” DECK GROUP
-3-
Item Part No. Description Qty.
1 109-9008 Asm, Deck W/Decals 486.....................1
2 98-5975 Washer, Spring Disc 3/8.......................3
3 103-3037 Bushing, Splined ..................................3
4 116-0133 Spring, Extension .................................1
5 109-9851 Axle, Anti-Scalp Roller..........................3
6 103-6401 Blade, Notched.....................................3
O
103-6391 Blade, Mulching....................................3
103-6386 Blade, Low Lift......................................3
103-6381 Blade, Solid..........................................3
103-6396 Blade, Extreme.....................................3
7 103-8415 Roller, Anti-Scalp..................................3
8 103-9522 Spacer, Splined Stepped......................3
9 103-9523 Spacer, Splined....................................3
10 109-0977 Pulley, Idler 5" ......................................1
11 109-2796 Pulley, Idler 6" ......................................1
12 109-2798 Sheave, Blade Drive 5.72.....................3
13 109-2872 Spacer, Pulley......................................2
14 109-2883 Asm, Deck Idler....................................1
15 109-9220 Screw, SEMS Hex 1/2-20 x 2.18...........3
16 109-6658 Nut, Nyloc 3/8-16 Flg............................31
17 109-6917 Asm, Spindle Housing..........................3
Item Part No. Description Qty.
17:1 103-9504 Guard, Bottom......................................1
17:2 103-9539 Asm, Cutter Housing............................1
17:3 109-0916 Nut, Spindle 7/8-14 ..............................1
17:4Q 109-6881 Spindle, Double Spline.........................1
18 109-6935 Cover, Belt RH 46-56...........................1
19 109-6936 Cover, Belt LH 46-56............................1
20 109-6982 Wireform, Cover...................................2
21 109-7033 Nut, Flange 5/8-18 Centerlock..............3
22 109-7188 Asm, Discharge Chute .........................1
22:1 109-2738 Chute, Discharge .................................1
22:2 109-8675-01 Bracket, Discharge Chute ....................1
22:3 3231-22 Bolt, Carriage 3/8-16 x 1.......................3
22:4 109-6658 Nut, Nyloc 3/8-16 Flg............................3
23 109-8070 Belt, V-B X 175.75................................1
24 109-9010-01 Baffle, Discharge 484/486....................1
25 3211-46 Screw, HH 3/8-24 x 2 Gr8 ....................3
26 3231-22 Bolt, Carriage 3/8-16 x 1.......................1
27 3231-28 Bolt, Carriage 3/8-16 x 1 1/4.................2
28 3231-44 Bolt, Carriage 3/8-16 x 2 1/2.................2
29 109-2098 Kit, Anti-Scalp ......................................3
30 109-9643 Asm, Deck Complete 486 ....................1
Exmark red touch up paint (spray paint – P/N 1-850337 - .6 oz liquid bottle – P/N 103-9140).
O Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK486.
Q Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles and bearings. DO NOT use a
copper or nickel based anti-seize.
