MODEL 225 INSTALLATION
WIRING
Keep sensor wiring away from ac conductors and high current demanding equipment. Do not cut cable.
Cutting the cable may void the warranty.

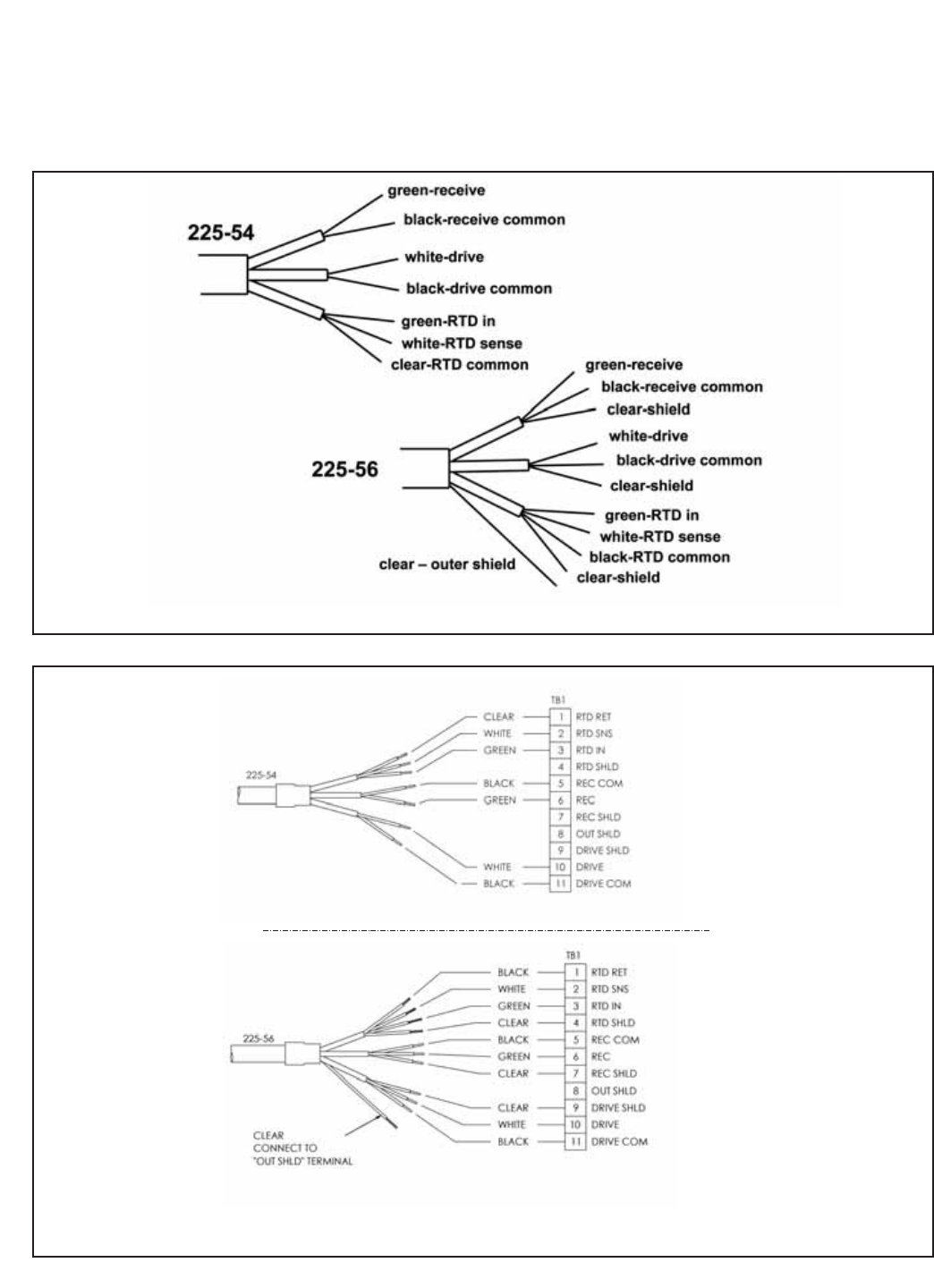

FIGURE 2. Wire Functions
FIGURE 3. Wiring 225-54 and 225-56 sensors to Model 1056 and 56 analyzers
