Model 225
Sanitary and CIP Toroidal Sensor
Instruction Sheet
PN 51A-225/rev.I
December 2010
SPECIFICATIONS
MODEL
Wetted Materials Temperature Pressure
225-03 PEEK (glass-filled) 230°F (110°C) 200 psig (1480 kPa abs)
225-07 Unfilled PEEK, meets 21CFR177.2415
1
266°F (130°C) 200 psig (1480 kPa abs)
225-08 Unfilled PEEK, meets USP Class VI 266°F (130°C) 200 psig (1480 kPa abs)
225-09 Tefzel (unfilled) 230°F (110°C) 200 psig (1480 kPa abs)
INSTALLATION
The sensor may be installed
in either a tank or pipe using
a customer-supplied Tri-
clamp and tee assembly.
The sensor requires a 2-inch
Tri-clamp, a 2-inch type 1
gasket, and a 2-inch tank
ferrule or tee.
Keep at least 1 in. (25 cm)
between sensor and pipe
wall. If clearance is too small,
calibrate the sensor in place.
Ensure that the sensor is
completely submerged in liq-
uid to the flange. Mounting
the sensor in a vertical pipe
run with the flow from bottom
to top is best. If the sensor
must be mounted in a hori-
zontal pipe run, orient the
sensor in the 3 o’clock or 9
o’clock position.

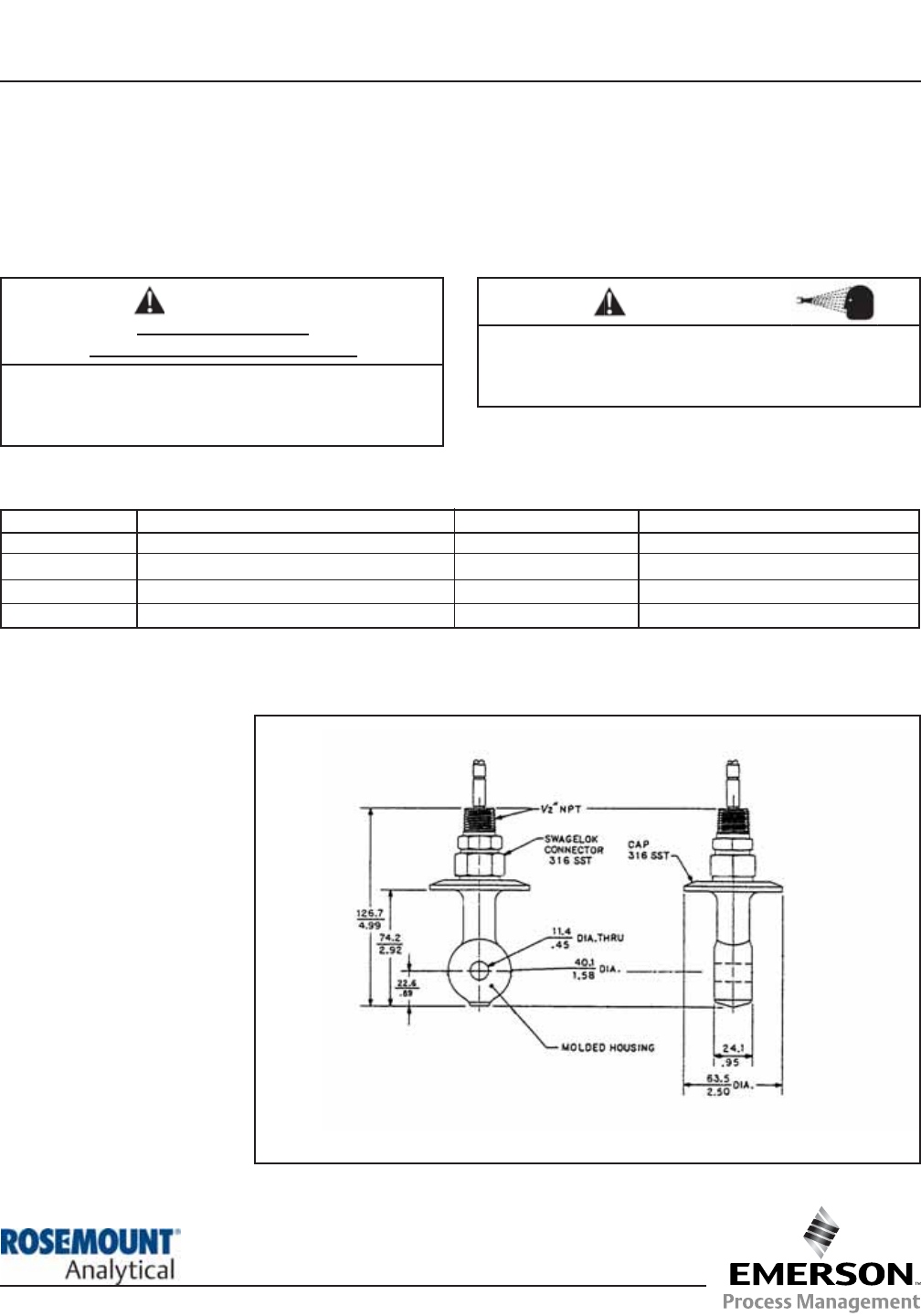

FIGURE 1. Dimensions
For additional information, please visit our website
at www.emersonprocess.com/raihome/liquid/.
WARNING
Before removing the sensor, be absolutely certain
that the process pressure is reduced to 0 psig and
the process temperature is lowered to a safe level!
CAUTION
The wetted sensor materials may not be compatible
with process com position and operating conditions.
Application compat ibility is entirely the
responsi-
bility of the user.
CAUTION
SENSOR/PROCESS
APPLICATION COMPATIBILITY
1
Sensor meets 3A sanitary requirements for sensors and sensor fittings and connections used on milk and milk products
equipment (74-03).
