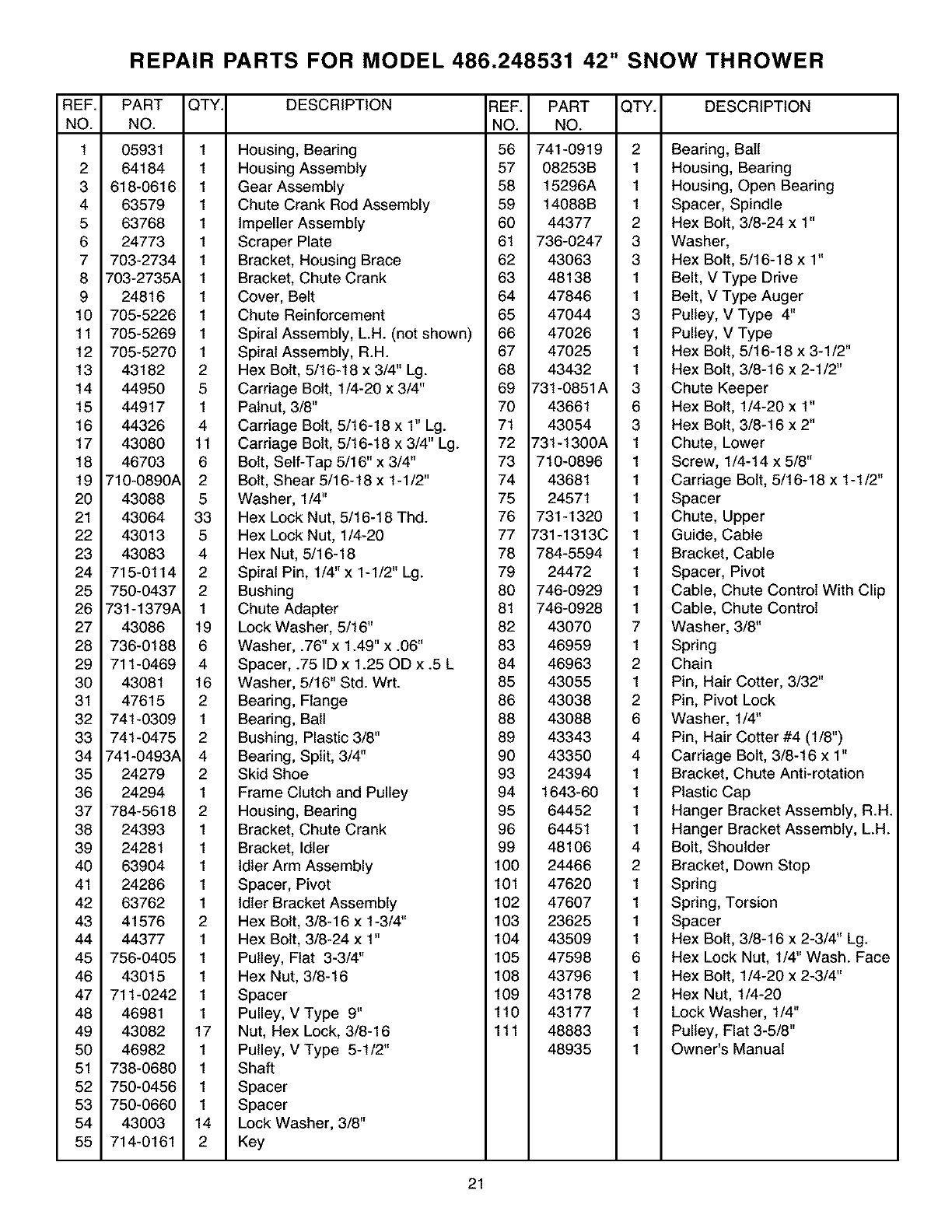

REPAIR PARTS FOR MODEL 486.248531 42" SNOW THROWER
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
3O
31
32
33
34
35
36
37
38
39
4O
41
42
43
44
45
46
47
48
49
5O
51
52
53
54
55
PART QTY. DESCRIPTION REF. PART QTY. DESCRIPTION
NO. NO. NO.
05931 1 Housing, Bearing 56 741-0919 2 Bearing, Ball
64184 1 Housing Assembly 57 08253B 1 Housing, Bearing
618-0616 1 Gear Assembly 58 15296A 1 Housing, Open Bearing
63579 1 Chute Crank Rod Assembly 59 14088B 1 Spacer, Spindle
63768 1 Impeller Assembly 60 44377 2 Hex Bolt, 3/8-24 x 1"
24773 1 Scraper Plate 61 736-0247 3 Washer,
703-2734 1 Bracket, Housing Brace 62 43063 3 Hex Bolt, 5/16-18 x 1"
703-2735A 1 Bracket, Chute Crank 63 48138 1 Belt, V Type Drive
24816 1 Cover, Belt 64 47846 1 Belt, V Type Auger
705-5226 1 Chute Reinforcement 65 47044 3 Pulley, V Type 4"
705-5269 1 Spiral Assembly, L.H. (not shown) 66 47026 1 Pulley, V Type
705-5270 1 Spiral Assembly, R.H. 67 47025 1 Hex Bolt, 5/16-18 x 3-1/2"
43182 2 Hex Bolt, 5/16-18 x 3/4" Lg. 68 43432 1 Hex Bolt, 3/8-16 x 2-1/2"
44950 5 Carriage Bolt, 1/4-20 x 3/4" 69 731-0851A 3 Chute Keeper
44917 1 Palnut, 3/8" 70 43661 6 Hex Bolt, 1/4-20 x 1"
44326 4 Carriage Bolt, 5/16-18 x 1" Lg. 71 43054 3 Hex Bolt, 3/8-16 x 2"
43080 11 Carriage Bolt, 5/16-18 x 3/4" Lg. 72 731-1300A 1 Chute, Lower
46703 6 Bolt, Self-Tap 5/16" x 3/4" 73 710-0896 1 Screw, 1/4-14 x 5/8"
710-0890A 2 Bolt, Shear 5/16-18 x 1-1/2" 74 43681 1 Carriage Bolt, 5/16-18 x 1-1/2"
43088 5 Washer, 1/4" 75 24571 1 Spacer
43064 33 Hex Lock Nut, 5/16-18 Thd. 76 731-1320 1 Chute, Upper
43013 5 Hex Lock Nut, 1/4-20 77 731-1313C 1 Guide, Cable
43083 4 Hex Nut, 5/16-18 78 784-5594 1 Bracket, Cable
715-0114 2 Spiral Pin, 1/4" x 1-1/2" Lg. 79 24472 1 Spacer, Pivot
750-0437 2 Bushing 80 746-0929 1 Cable, Chute Control With Clip
731-1379A 1 Chute Adapter 81 746-0928 1 Cable, Chute Control
43086 19 Lock Washer, 5/16" 82 43070 7 Washer, 3/8"
736-0188 6 Washer, .76" x 1.49" x .06" 83 46959 1 Spring
711-0469 4 Spacer, .75 ID x 1.25 OD x .5 L 84 46963 2 Chain
43081 16 Washer, 5/16" Std. Wrt. 85 43055 1 Pin, Hair Cotter, 3/32"
47615 2 Bearing, Flange 86 43038 2 Pin, Pivot Lock
741-0309 1 Bearing, Ball 88 43088 6 Washer, 1/4"
741-0475 2 Bushing, Plastic 3/8" 89 43343 4 Pin, Hair Cotter #4 (1/8")
741-0493A 4 Bearing, Split, 3/4" 90 43350 4 Carriage Bolt, 3/8-16 x 1"
24279 2 Skid Shoe 93 24394 1 Bracket, Chute Anti-rotation
24294 1 Frame Clutch and Pulley 94 1643-60 1 Plastic Cap
784-5618 2 Housing, Bearing 95 64452 1 Hanger Bracket Assembly, R.H.
24393 1 Bracket, Chute Crank 96 64451 1 Hanger Bracket Assembly, L.H.
24281 1 Bracket, Idler 99 48106 4 Bolt, Shoulder
63904 1 Idler Arm Assembly 100 24466 2 Bracket, Down Stop
24286 1 Spacer, Pivot 101 47620 1 Spring
63762 1 Idler Bracket Assembly 102 47607 1 Spring, Torsion
41576 2 Hex Bolt, 3/8-16 x 1-3/4" 103 23625 1 Spacer
44377 1 Hex Bolt, 3/8-24 x 1" 104 43509 1 Hex Bolt, 3/8-16 x 2-3/4" Lg.
756-0405 1 Pulley, Flat 3-3/4" 105 47598 6 Hex Lock Nut, 1/4" Wash. Face
43015 1 Hex Nut, 3/8-16 108 43796 1 Hex Bolt, 1/4-20 x 2-3/4"
711-0242 1 Spacer 109 43178 2 Hex Nut, 1/4-20
46981 1 Pulley, V Type 9" 110 43177 1 Lock Washer, 1/4"
43082 17 Nut, Hex Lock, 3/8-16 111 48883 1 Pulley, Flat 3-5/8"
46982 1 Pulley, V Type 5-1/2" 48935 1 Owner's Manual
738-0680 1 Shaft
750-0456 1 Spacer
750-0660 1 Spacer
43003 14 Lock Washer, 3/8"
714-0161 2 Key
21
