Troubleshooting, Adjustment & Service
MOWING HEIGHT ADJUSTMENT
See Figure 18. The mowing height adjustment can
be changed by turning the cutting height adjustment
handle.
To Raise the Mower Deck:
Turn the cutting height adjustment handle (A, Figure
18) CLOCKWISE.
To Lower the Mower Deck:
Turn the cutting height adjustment handle COUNTER-
CLOCKWISE.
SEAT HEIGHT ADJUSTMENT
In addition to the operator seat being adjustable in the
forward and back position, the height of the operator
seat can also be adjusted up and down.
To Adjust the Seat Up and Down:
1. Pull the seat adjustment lever (A, Figure 19)
forward and move the seat to the furthest forward
position to provide extra clearance between the
seat and the gas tank.
2. Loosen but do not remove the front seat mounting
hardware (B).
3. Remove the rear seat mounting hardware (C).
4. Maneuver the seat mount (D) until the desired
height is achieved.
5. Reinstall the rear mounting hardware and then
tighten both the front and rear mounting hardware.
6. Pull the seat adjustment lever forward and adjust
the seat to the desired front and back position.

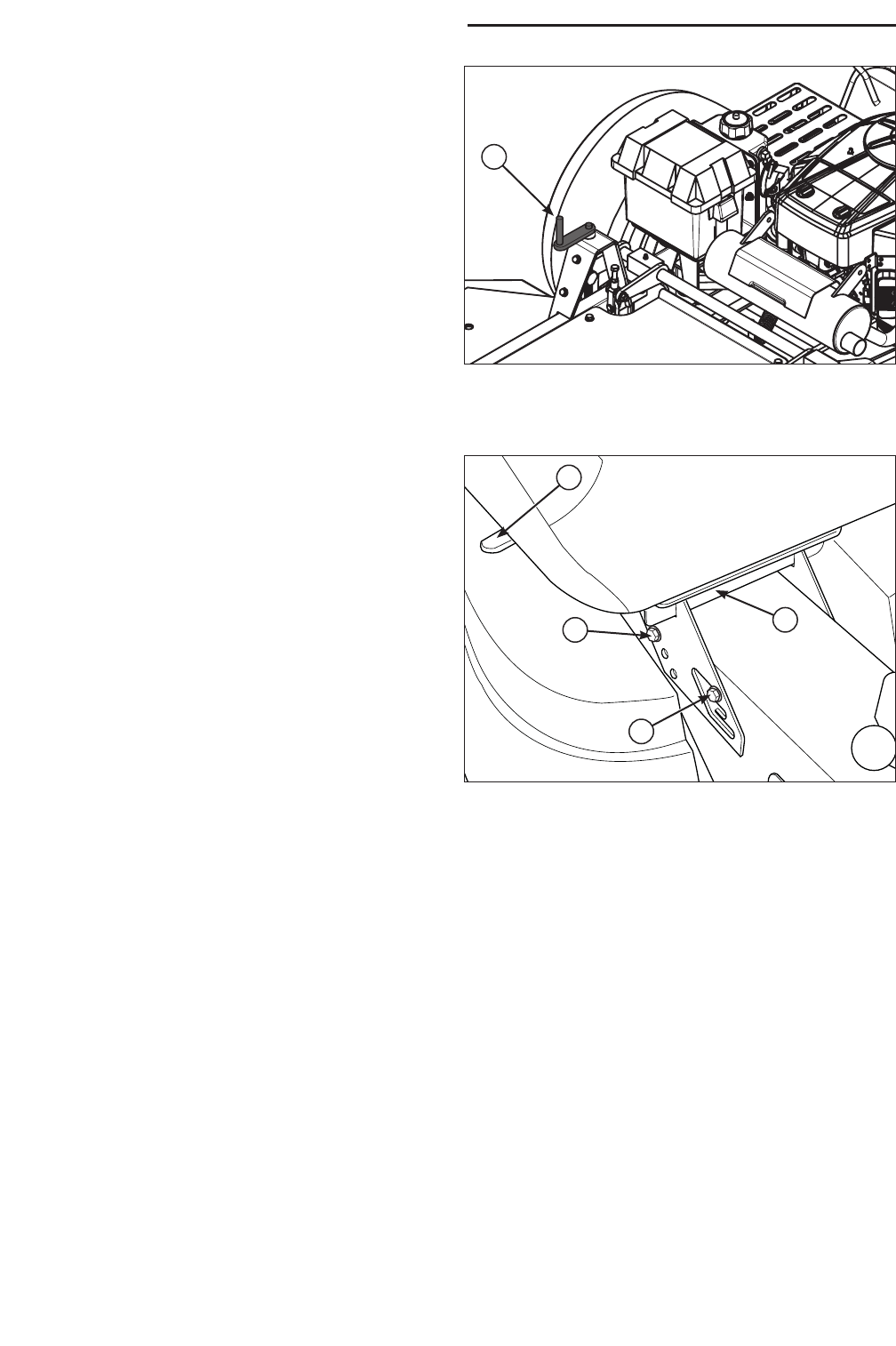

Figure 19. Seat Height Adjustment
A. Seat Adjustment Lever
B. Front Mounting Hardware
C. Rear Mouning Hardware
D. Seat Mount
C
D
B
A
A
Figure 18. Cutting Height Adjustment
A. Cutting Height Adjustment Handle
