Front tab
lor ribbon holder

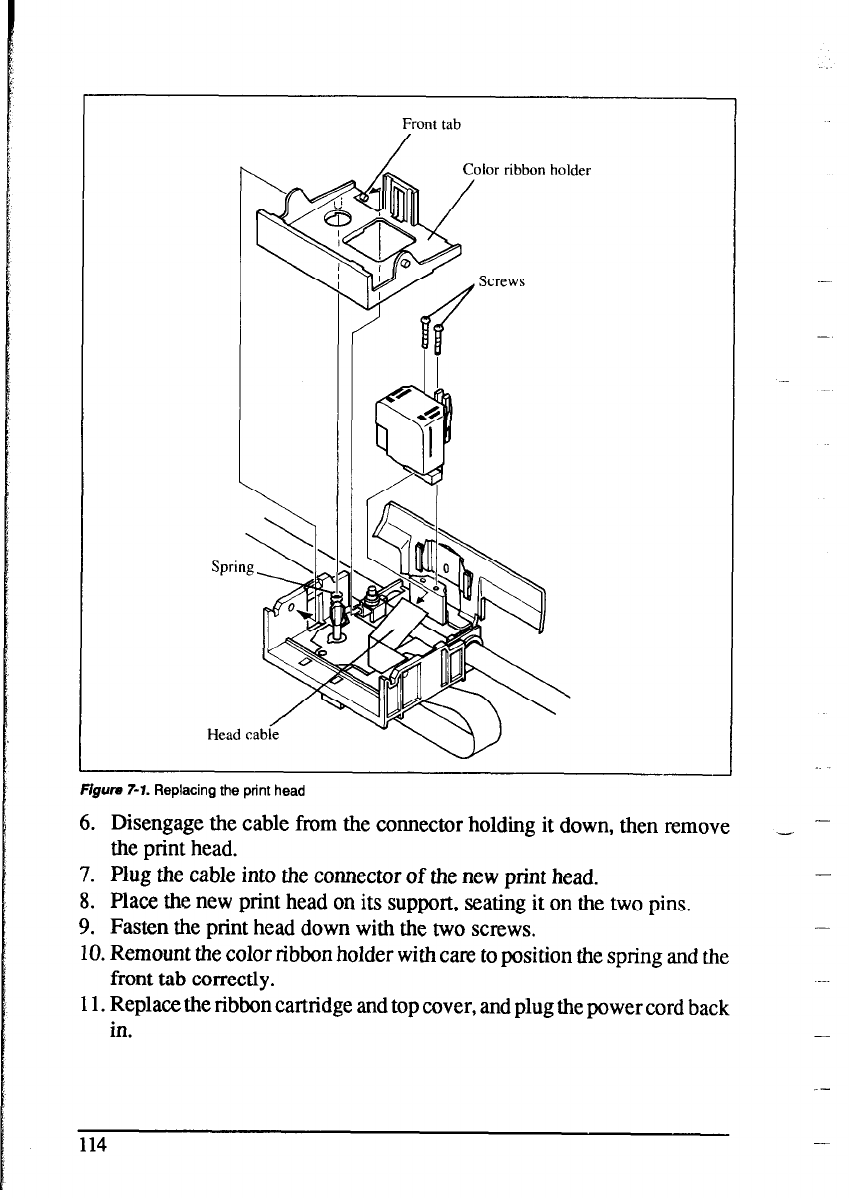

Flgun, 7-T. Replacing the print head
6. Disengage the cable from the connector holding it down, then remove
_ -
the print head.
7. Plug the cable into the connector of the new print head.
-
8. Place the new print head on its support, seating it on the two pins.
9. Fasten the print head down with the two screws.
-
10. Remount the color ribbon holder with care to position the spring and the
front tab correctly.
.-.
Il. Replace the ribbon cartridge and top cover, and plug the power cord back
in.
114
-
