clearing paper jams
Operator’s Guide14
Jam at Fuser Exit
warning
The
fuser operates at extremely high
temperature. A
void touching the fuser
.

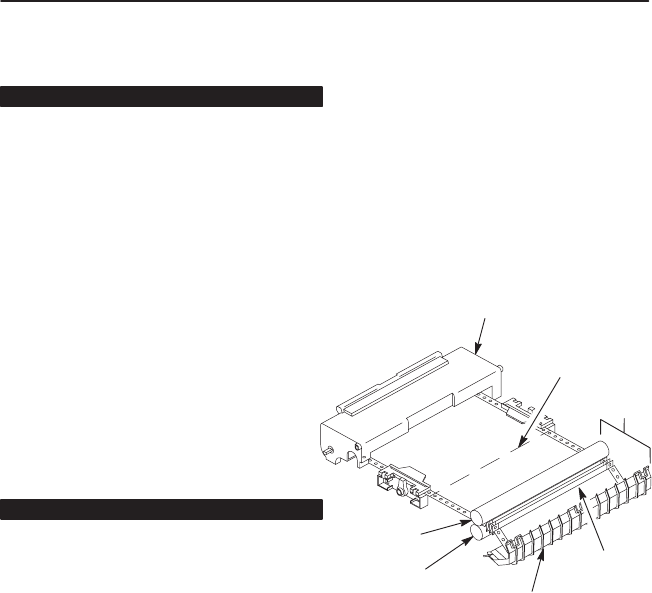

Refer to the adjacent figure and perform
these steps:
1 Raise the top of the printer by firmly
pressing the button on the left side
of the front panel.
2 Tear the paper at a perforation
between the OPC drum unit and the
fuser unit.
3 Open the rear cover of the fuser
unit by rotating it back and down.
caution
Pull
the jammed paper toward the rear
cover of the fuser unit only. Pulling the
paper back over the rollers may damage
the top of form sensor
.
Be careful not to scratch or nick the
rollers when removing the jammed
paper.
4 Carefully
pull the jammed paper
from between the fuser roller and
the pressure roller.
5 Close the rear cover of the fuser
unit.
6 Reload the paper. Refer to the
“Loading Paper” section.
7 Close the top cover of the printer
and wait for the printer to warm up.
8 Press ON LINE. Printing will
resume.
Perforation
OPC
Drum
Rear Cover
Fuser Unit
Pressure Roller
Fuser Roller
Paper
Jam
