Installing a virtual media key
IMM Premium enables the IMM remote presence and blue-screen capture
capability. This feature provides graphical console redirection with remote keyboard
and mouse interaction, plus remote diskette and CD/DVD drive support.

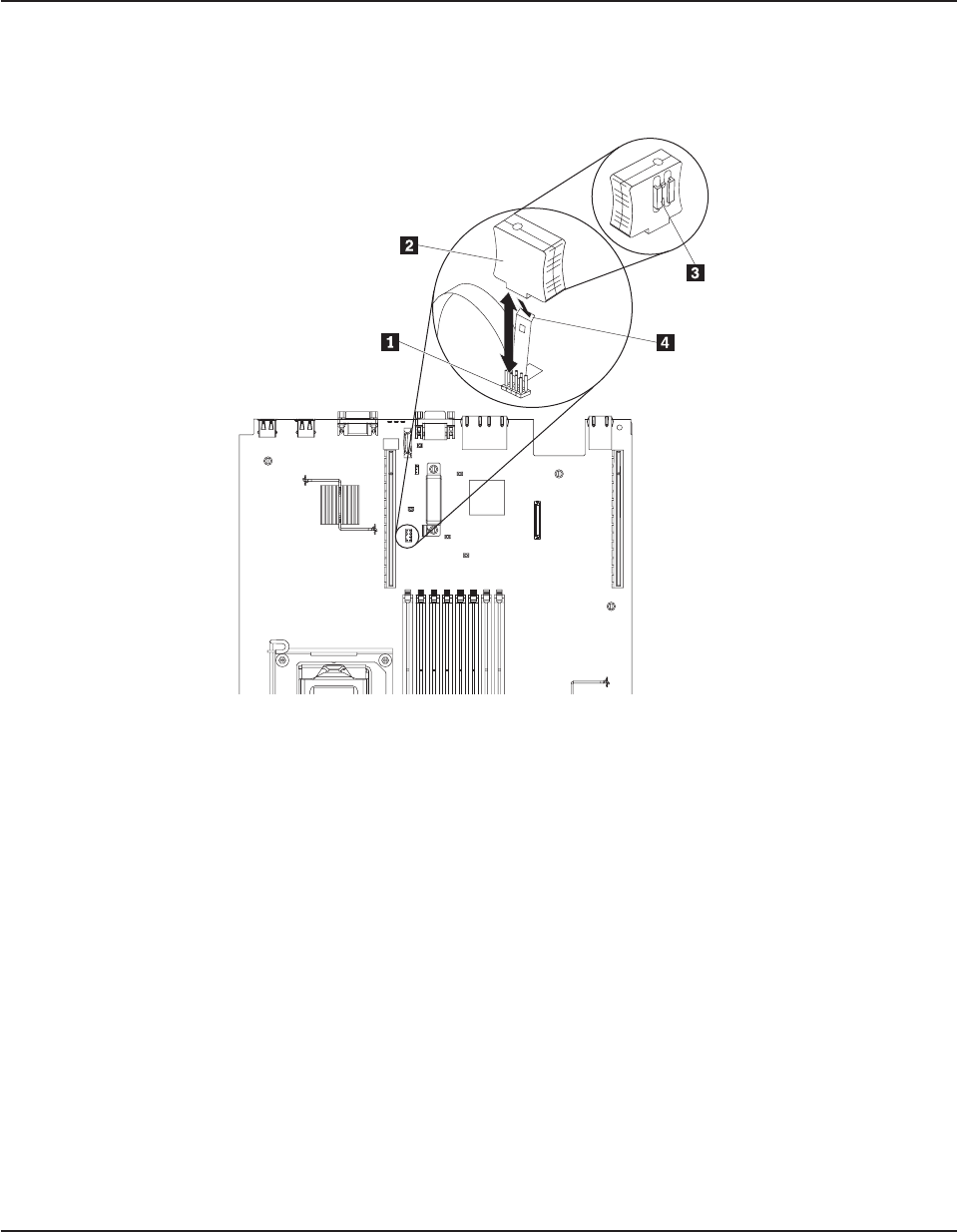

1 Virtual media key connector
2 Virtual media key (front)
3 Mounting bracket (rear)
4 Mounting tab
To install a virtual media key, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 33.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables (see “Turning off the server” on page 31).
3. Remove the cover (see “Removing the cover” on page 37).
4. Align the mounting bracket on the rear of the virtual media key with the
mounting tab and slide it down the tab onto the virtual medial key connector on
the system board. Press the virtual media key down into the connector until it is
firmly seated on the system board.
If
you have other optional devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 100.
Removing a memory module (DIMM)
To remove a DIMM, complete the following steps.
