210 DS8000 Series: Concepts and Architecture
2 Deselect All
3 Show Filter Row
4 Clear All Filters
5 Edit Sort
6 Clear All Sorts
The caret button (number 7) is for a simple ascending/descending sort on a single column.

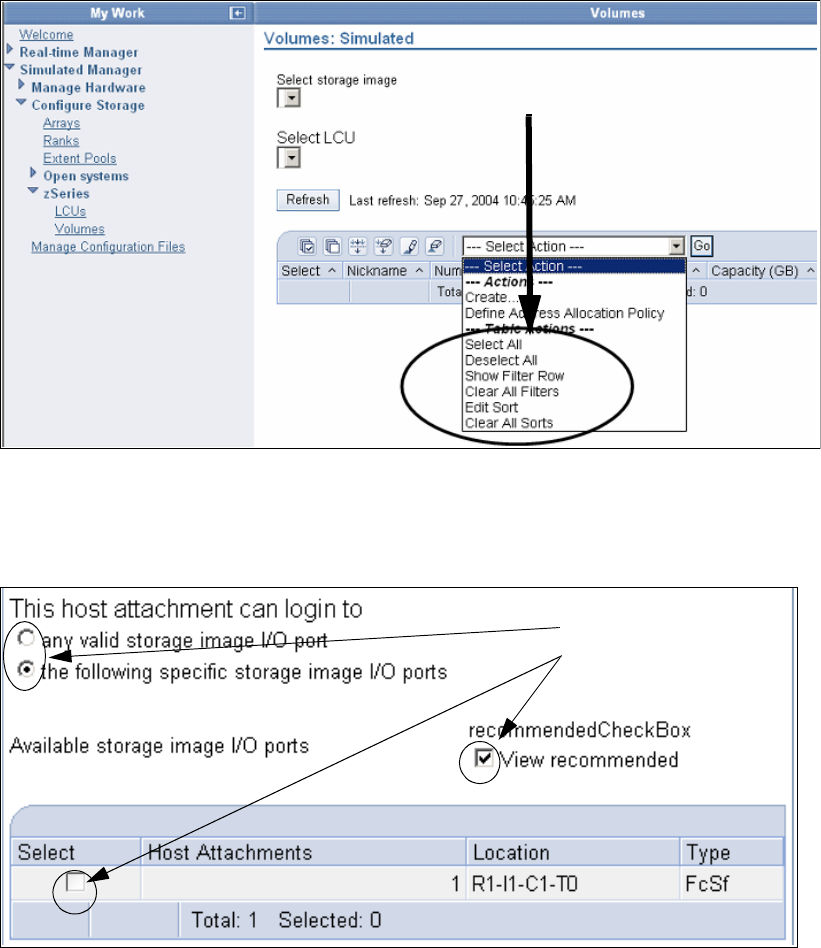

Clicking the pull-down (number 8) results in the expanded action list shown in
Figure 10-21. Near the center of the list you can access the same selection and filtering
options mentioned previously.
Figure 10-21 Storage unit view of the pull-down
Radio buttons and check boxes
Figure 10-22 illustrates the difference between radio buttons and check boxes.
Figure 10-22 View of radio buttons and check boxes in the host attachment panel
8
Radio buttons
Check boxes
