Wireless Monitor Operation
1. Remove battery access cover (C) on back of monitor
and install 2 AA batteries. (Observe correct battery
polarity which is embossed in the bottom of the
battery compartment). Replace battery access cover.
2. The wireless monitor does not have an on/off
switch. When batteries are installed correctly,
the GENERATOR READY green LED light will flash
once every 7 seconds indicating the status of the
generator.
NOTICE If communication does not begin upon placing the
generator in AUTO, installing batteries, and pressing System
Update, the monitor may need to be re-linked. To link, follow
Steps 3 through 6.
DEALER NAME
DEALER
PHONE
vice needed
generator ready
system updat
e
1 low battery voltage
2 low uid level
3 under/over voltage
4 engine does not start
part #: 316196 fcc id: MCQ-XBS2C IC id: 1846A-XBS2C
5 low frequency
6 engine overspeed
7 high temperature
8 transfer switch
# of flashes service needed
C
NOTICE The wireless monitor was linked to the generator at
the factory. Communication will begin upon the installation
of the batteries and the generator being placed in AUTO
mode. You may need to press System Update one time.

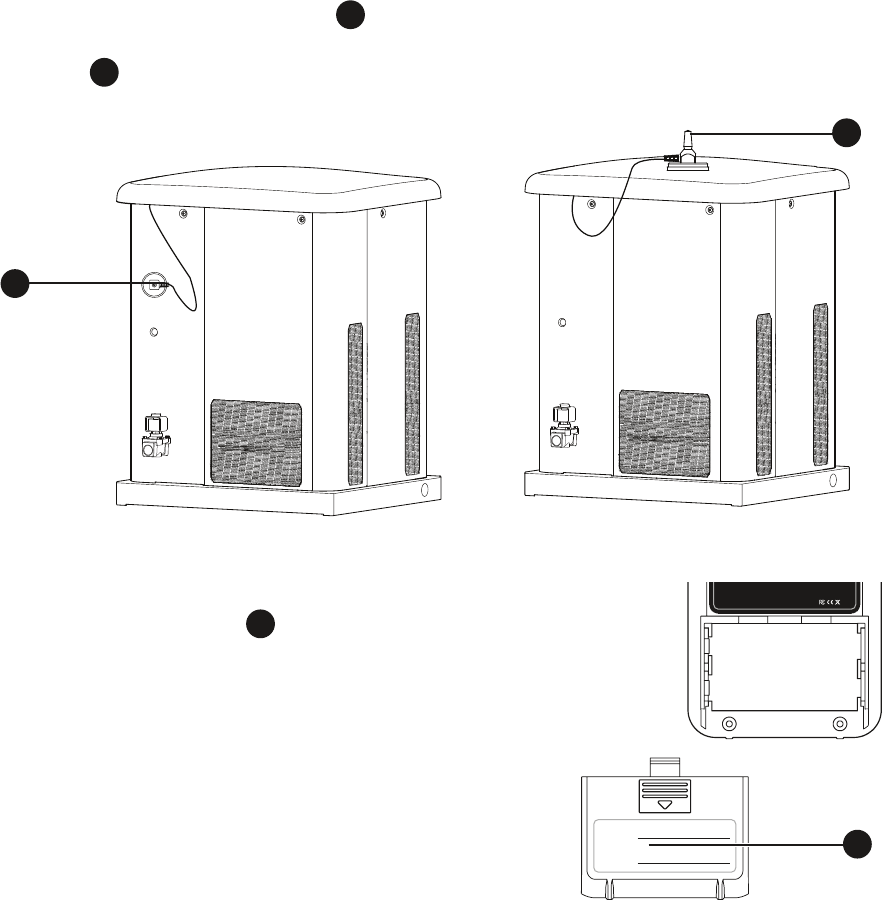

Antenna Placement
The wireless monitor includes an antenna that was installed
at the factory.
Before shipping, the magnetic-backed antenna was moved
to the side of the generator to prevent damage (A).
Before starting the wireless monitor, mount the antenna on
the top of the unit (B).
