Figure 9.1
S
q
ueeze tabs &
p
ull S
q
ueeze tabs &
p
ull

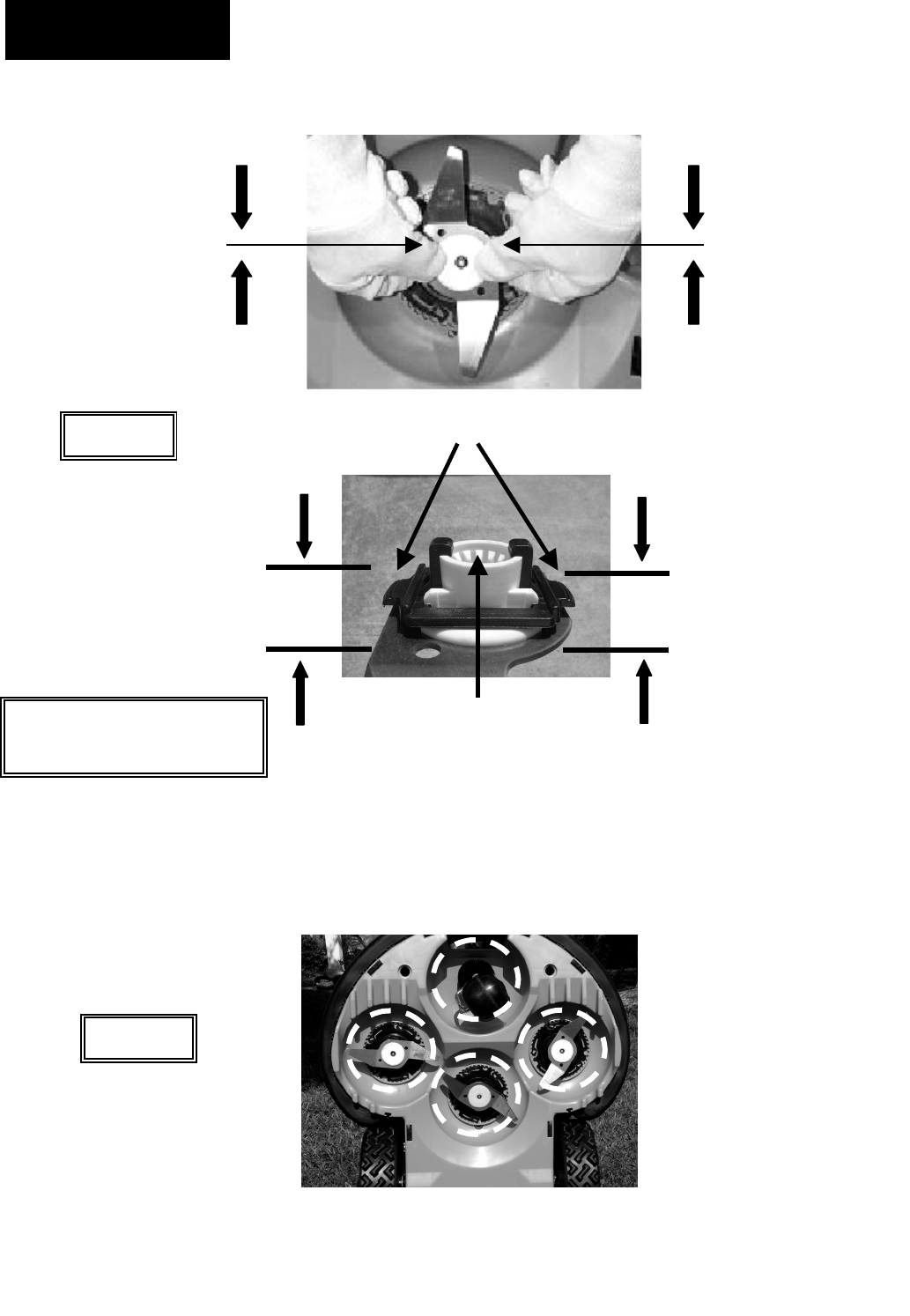

To remove blades, squeeze locking tabs on each side of blade
retainer, then pull blade assembly off, away from mower. When
reinstalling the blade, line up the mating splines and push until a firm
click is heard, indicating a proper seating of the blade onto the shaft.
Squeeze here
Squeeze here
Locking tabs
Mating spline
Figure 9.2
Using a wooden stick or similar object, clean accumulated grass
from these areas of the mowing deck. Remove blades if
necessary for better access.
ALWAYS REMOVE POWER
PACK BEFORE SERVICING
BLADES!
Chapter 9
Page 36
