Product Overview
Torque Requirements
Bolt Location
Torque
Engine Mounting Bolts
30-35 ft-lb (41-47 N-m)
Wheel Lug Nuts
90-95 ft-lb (122-129 N-m)
Wheel Motor Mounting
Bolts
72-77 ft-lb (98-104 N-m)
Wheel Hub Lock Nut 210-250 ft-lb
(285-339 N-m)
Rollover Protection System
(Roll Bar) Mounting Bolts
30-35 ft-lb (41-47 N-m)
Clutch Retaining Bolt
(secured with threadlocker)
55-60 ft-lb (75-81 N-m)
Product Overview

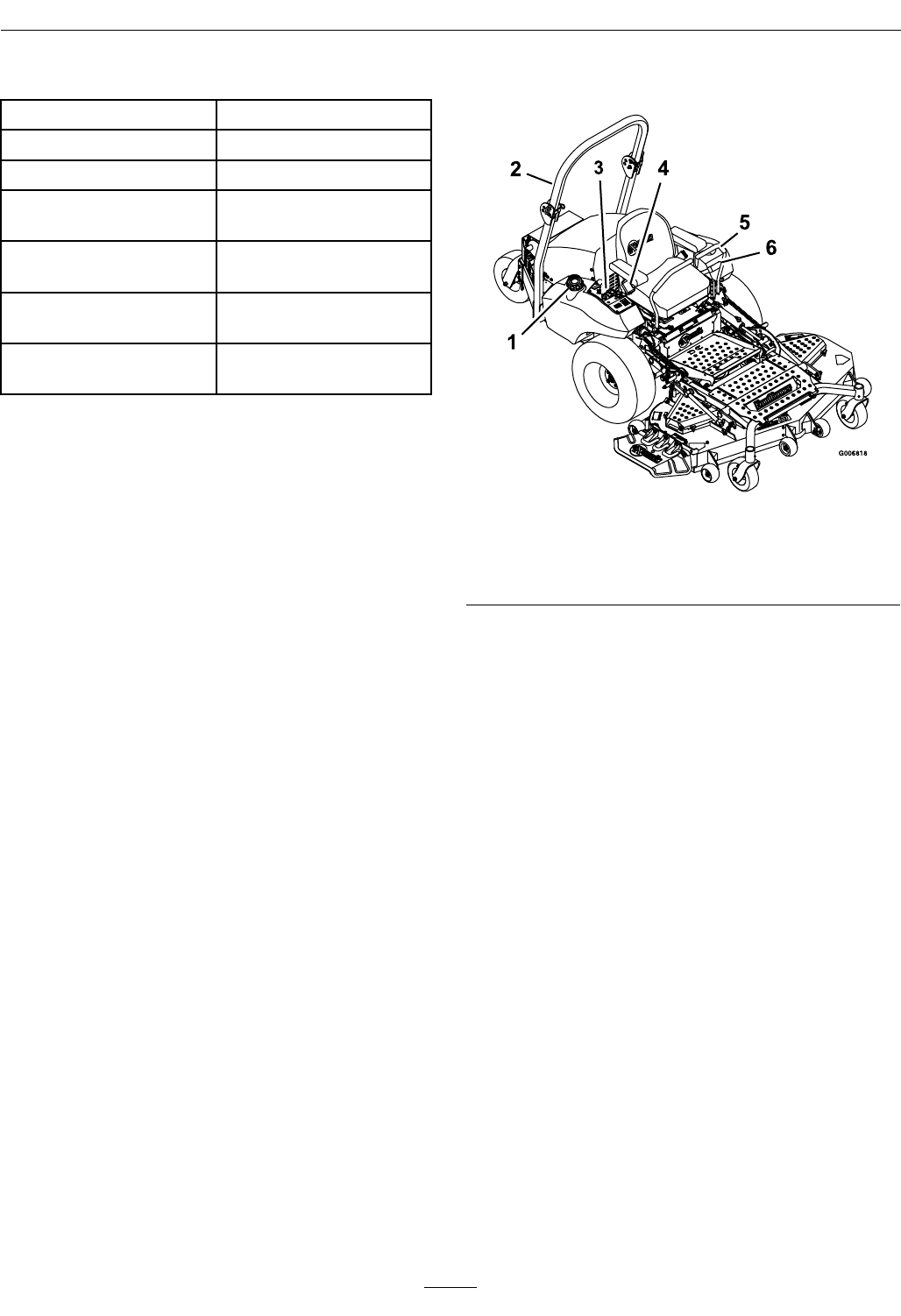

Figure 4
1. Fuel Cap 4. Seat Belt
2. Roll Bar
5. Motion Control Lever
3. Controls
6. Parking Brake Lever
