4.0 INSTALLATION DRAWINGS

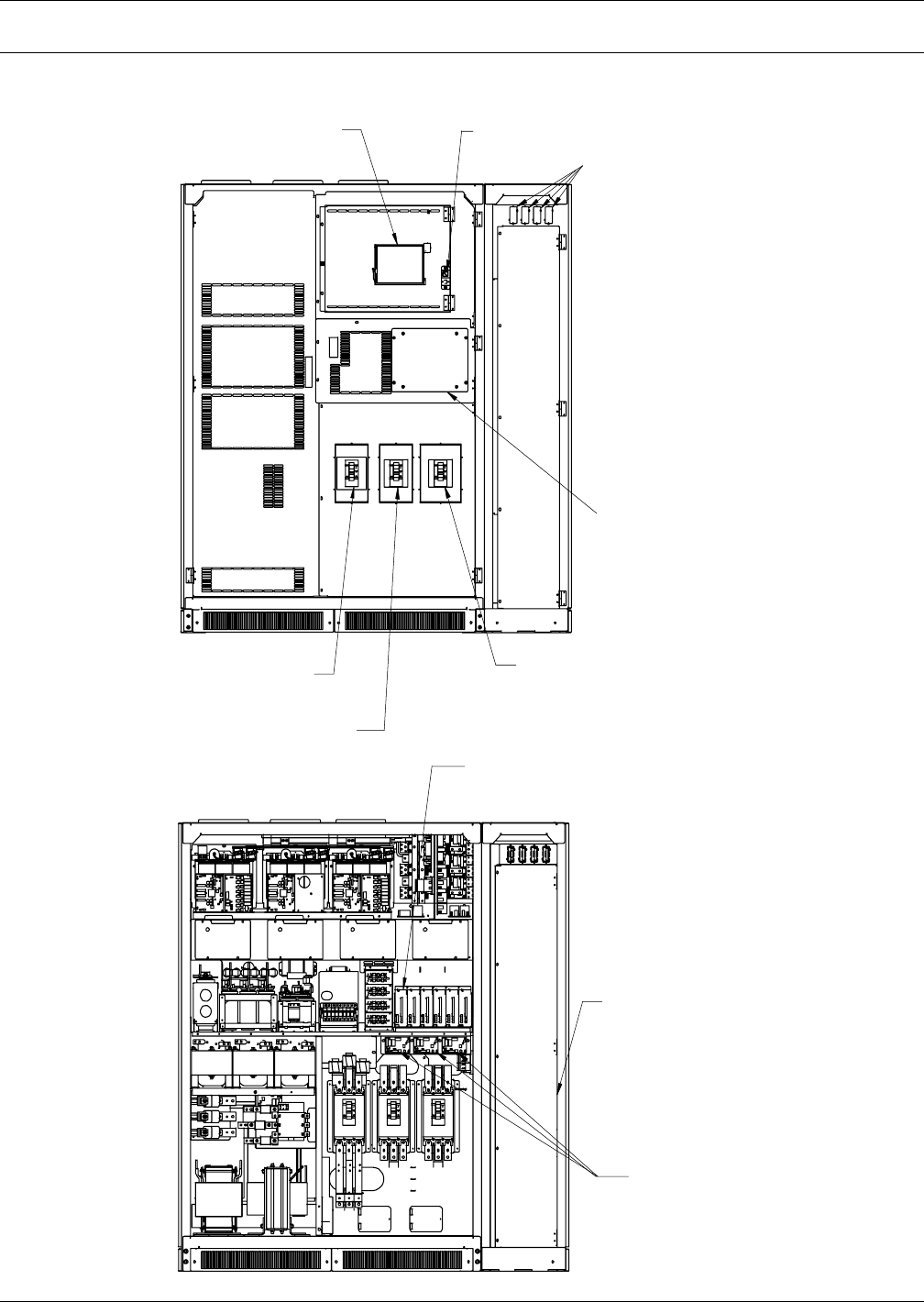

Figure 3 Main components location, 250kVA Liebert NXL UPS
HMI Screen
EMO Button
(optional)
Liebert
Intellislot
Bays
®
Customer
Interface
Board
Main Input
Circuit
Breaker (CB1)
Module Output
Circuit Breaker (CB2)
Backfeed Breaker (BFB)
Option Box
(6 slots available)
Input/Output
Connections
(Behind Inner Door)
CB Interface
Boards
