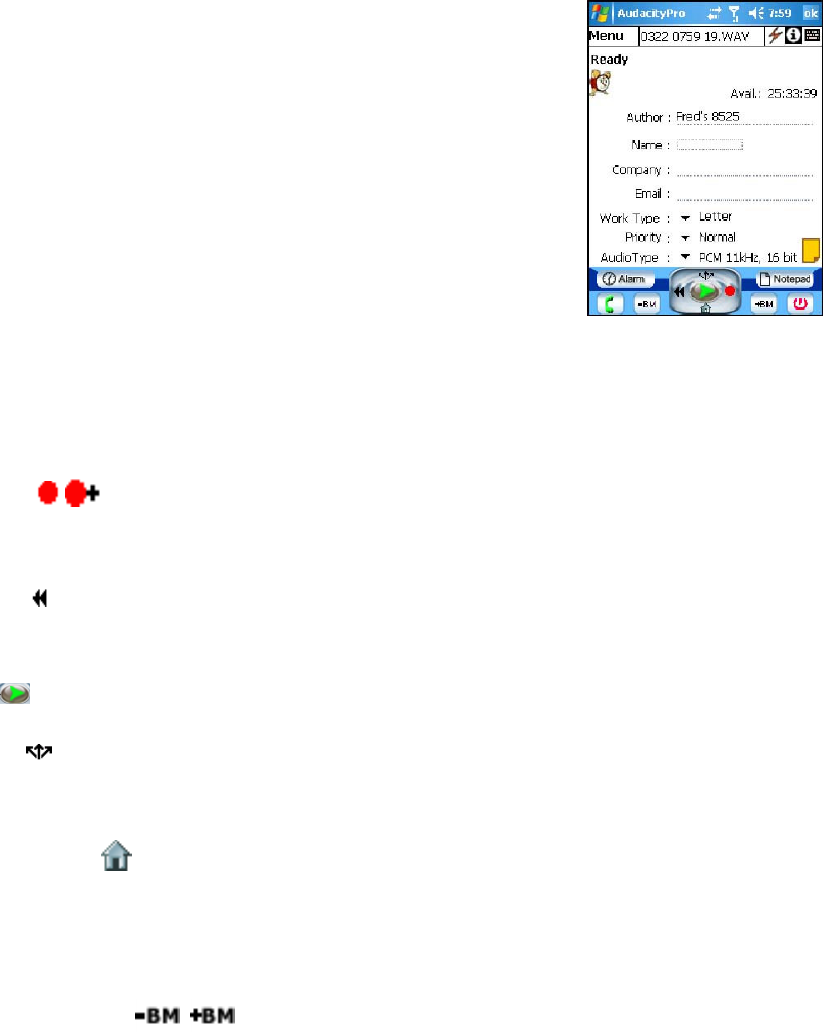

Record Screen
The Record Screen is primarily used for recording, but can also be used
for playback, and viewing / editing the file name, programmable fields,
and text notes. The Filename can be configured from a Template under
Options, Preferences, Record / Memo. The file may be renamed before
or after recording by using the Rename feature in the menu. Tapping the
Alarm Icon opens the Alarm Setup Screen. Before starting to record, be
sure to define an Author Name on the Preferences screen. The Author
Name must match the Author Name in the LAM application. The three
fields under Author are Programmable and can be used for a variety of
things. See Programmable Info under Options. A Work Type and Priority
may be set. The Audio Type may be changed from the default setting
(The Default Setting is found under Options, Preferences, Record /
Memo tabs). A text note may be viewed or edited by tapping the Note
Icon. All information entered in these fields is included in the associated
AWI file and is available for subsequent processing.
Default Settings in Idle Mode
The Idle Mode is a defined as a state where a file is open, but there is no record or playback activity. It
is different from the Home Mode where there is no open file. It is only pertinent when in the Record or
Playback screen.
Rec / Rec+
Touching the Right navigation pad will start the recording. If the file is empty, a new recording is
created. If the file already exists, the recording is appended at the end.
Rewind
Touching the Left navigation pad will Rewind the recording 6 seconds (Default Setting) and play the
file from that point.
Play
Touching the Center navigation pad will play the file from the beginning.
Send File
Send File will send the file wirelessly to the defined location. The destination must be defined in the
Network Setup parameters section.
Audacity Home
Touching the Down navigation pad closes the file and returns to the Home screen.
PDA Buttons 1 and 4
These buttons are dependant on the hardware used. Usually, they are either the Send and End Phone
functions or used to add or delete bookmarks
PDA Buttons 2 and 3
On many hardware models Button 2 is Delete Bookmark and Button 3 is Add Bookmark. Suggestion:
It is usually easier to set and delete bookmarks from the Playback Screen (accessed by pressing play
from the home screen).
Upper Left and Upper Right
The default depends on the hardware used. Typical is Alarm (there is also an alarm icon on the
Record Screen), and Notepad (there is also a Notepad Icon on the screen). Remember, most buttons
are configurable in the Audacity Button Setup.
